Solis tractors are now available on an order-only basis. For inquiries, orders, or delivery timelines, please reach out to our sales team.

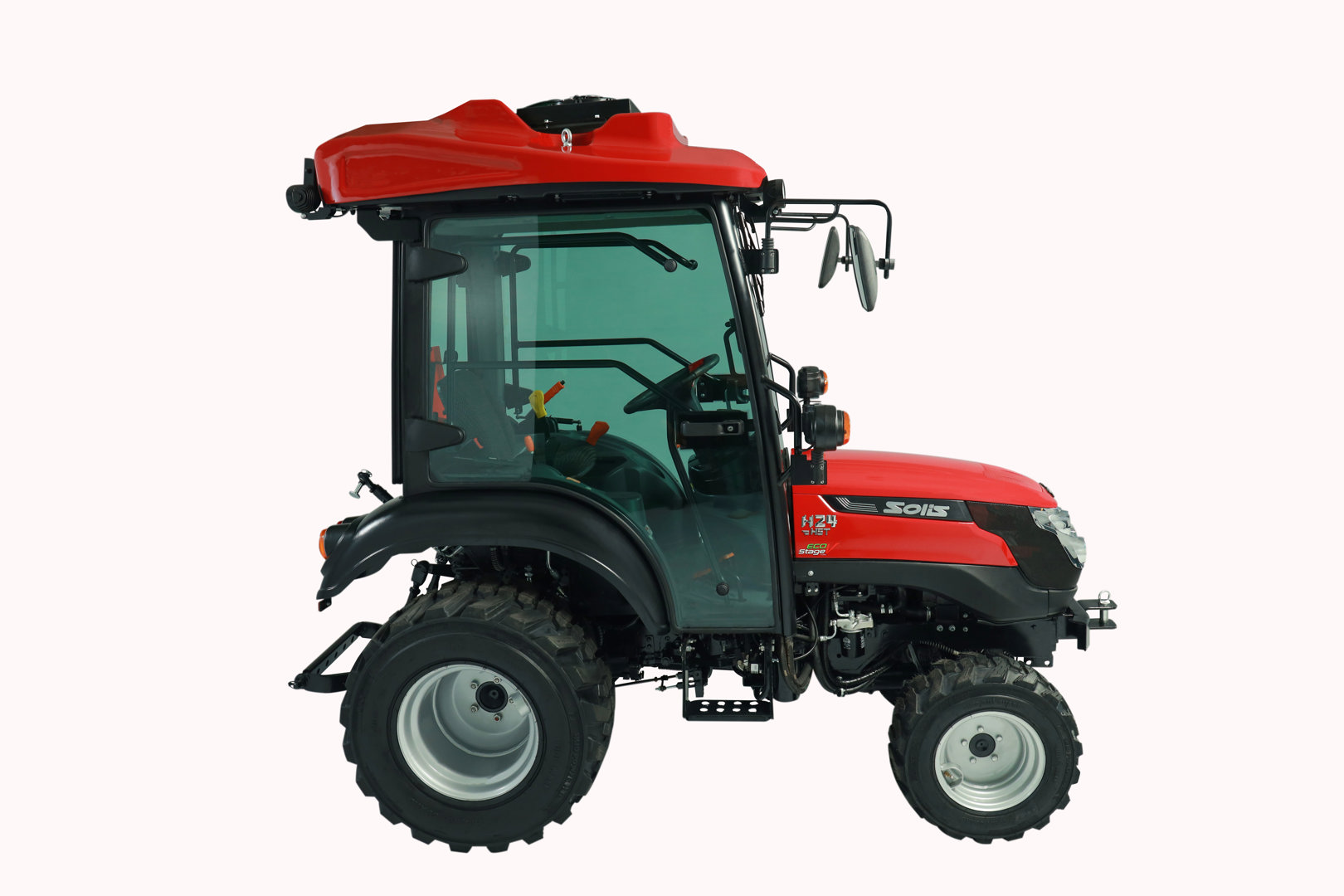

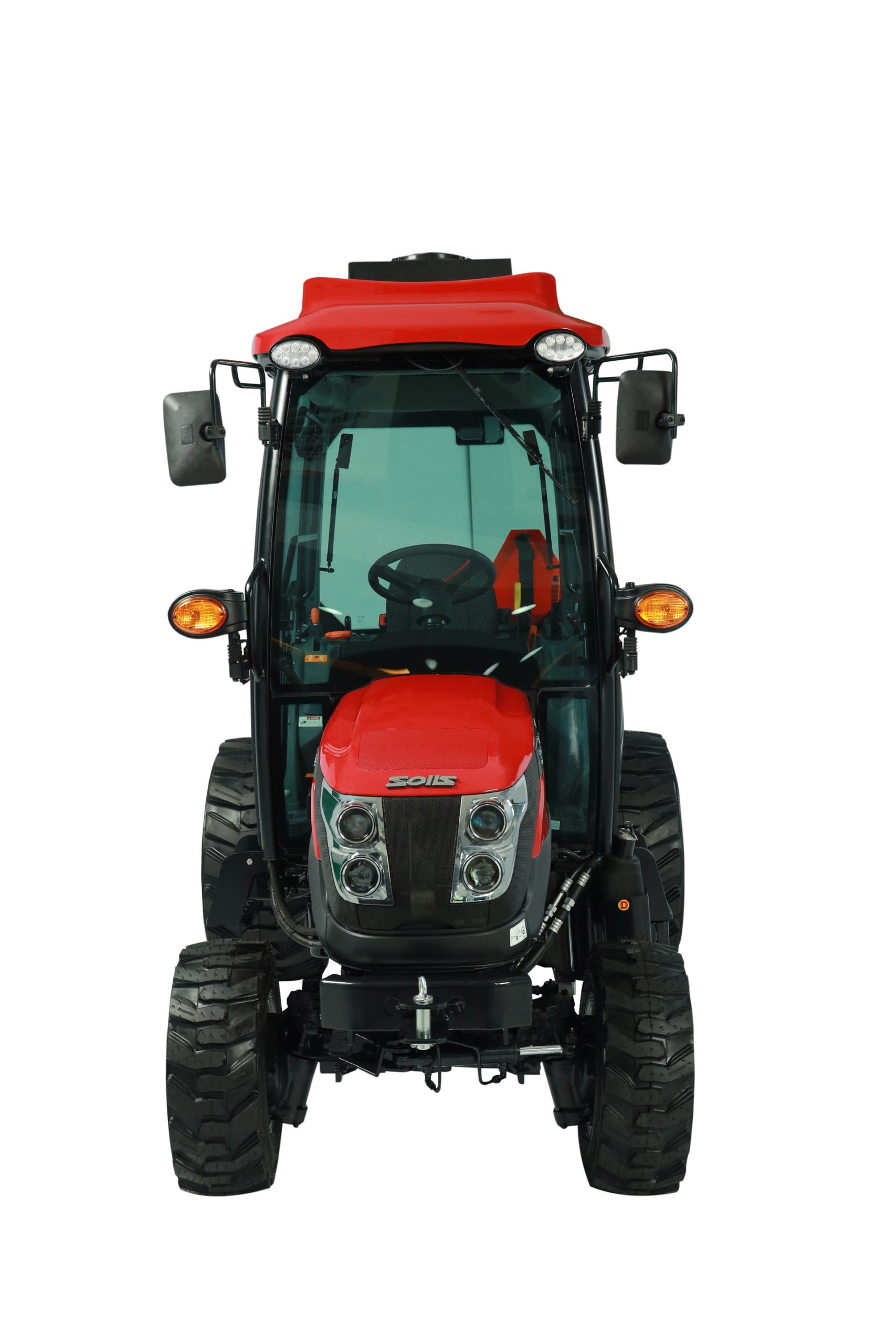

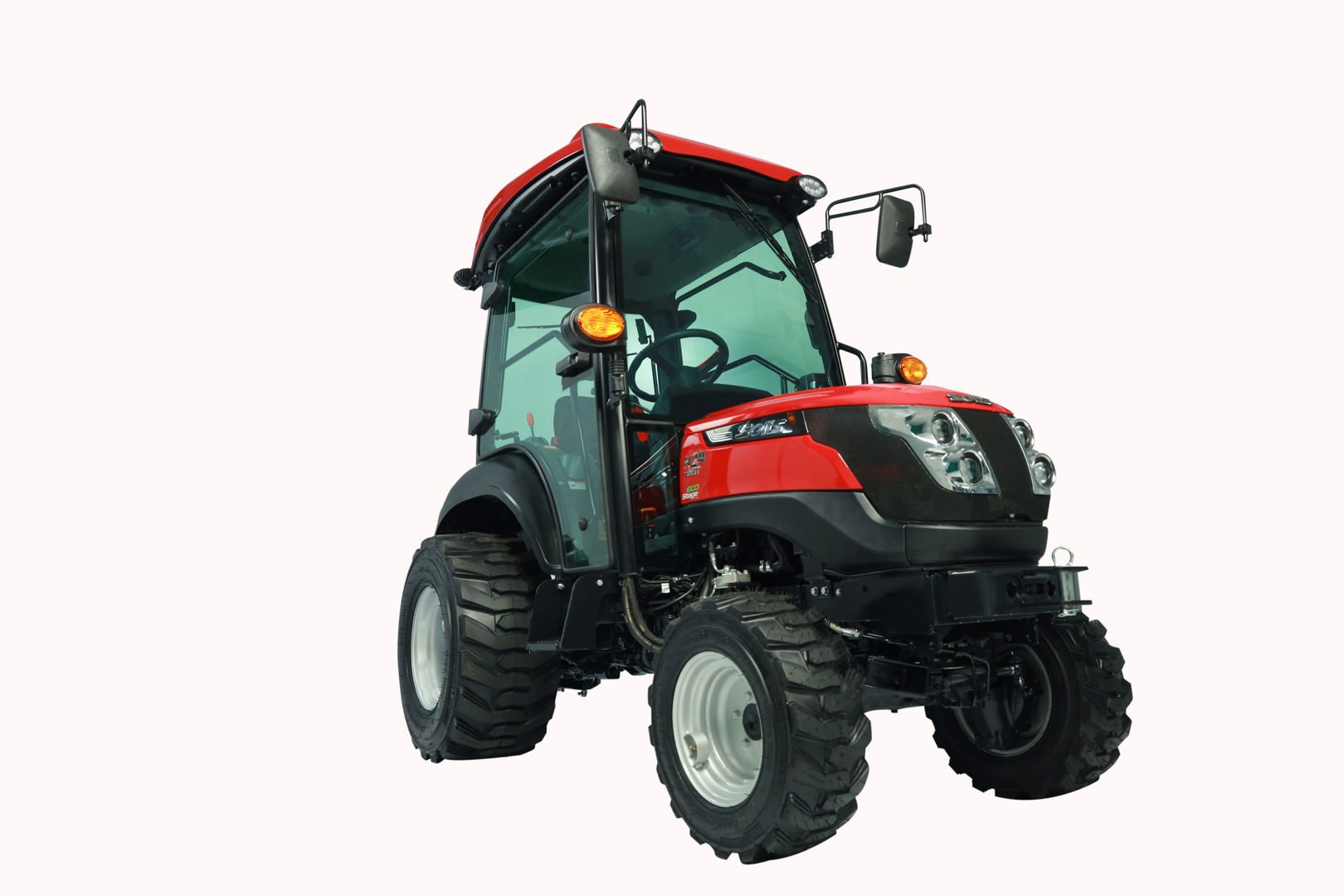

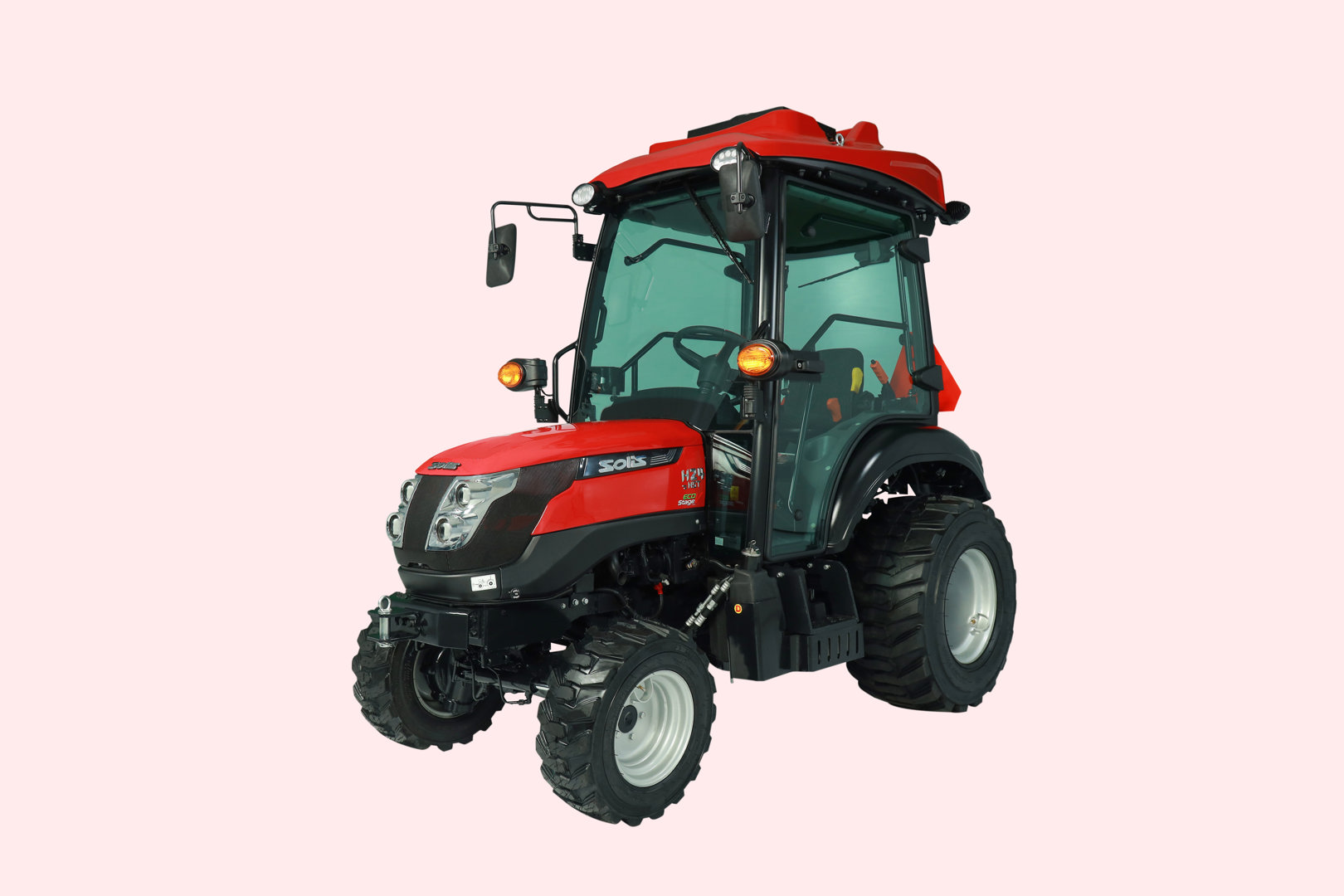

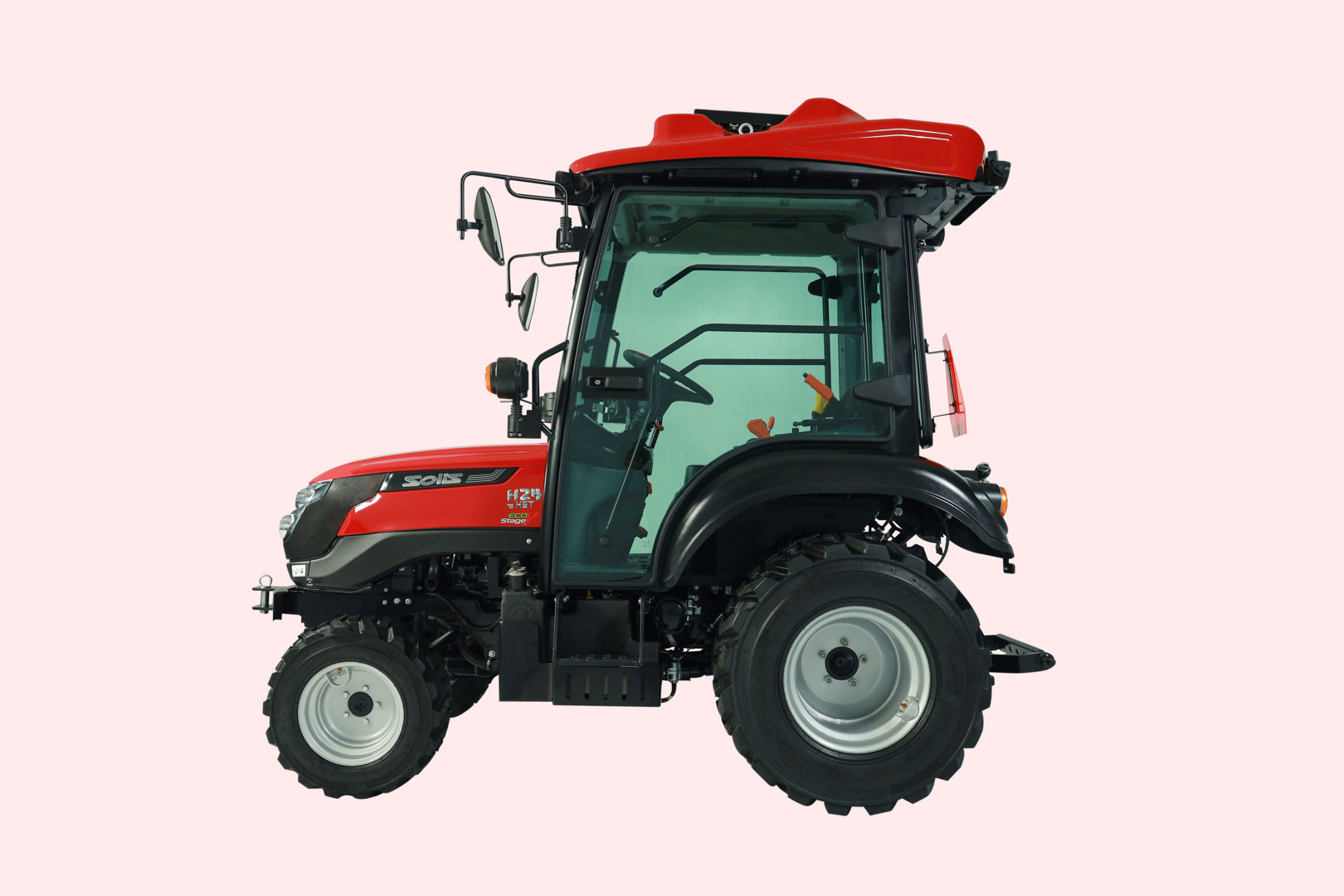

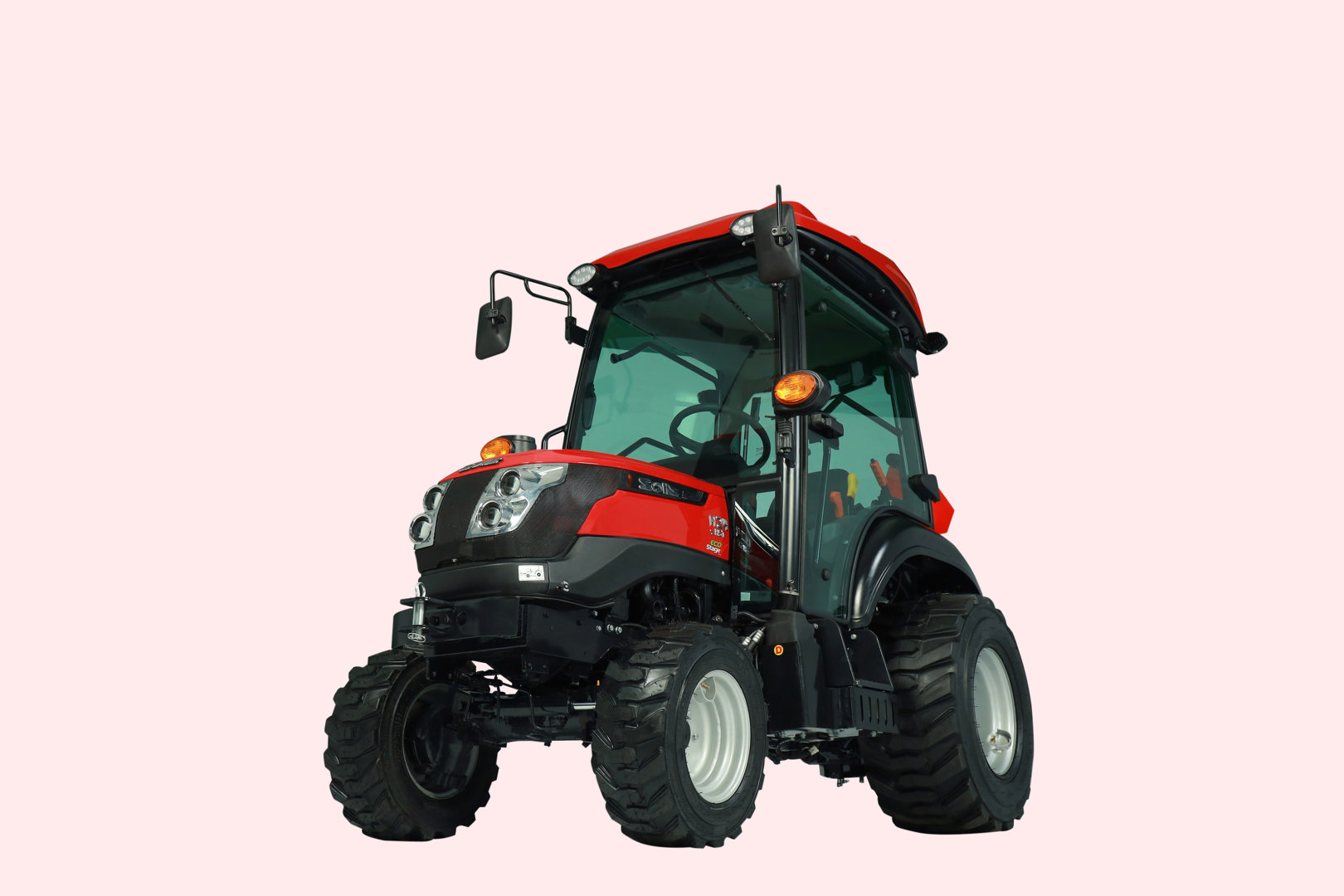

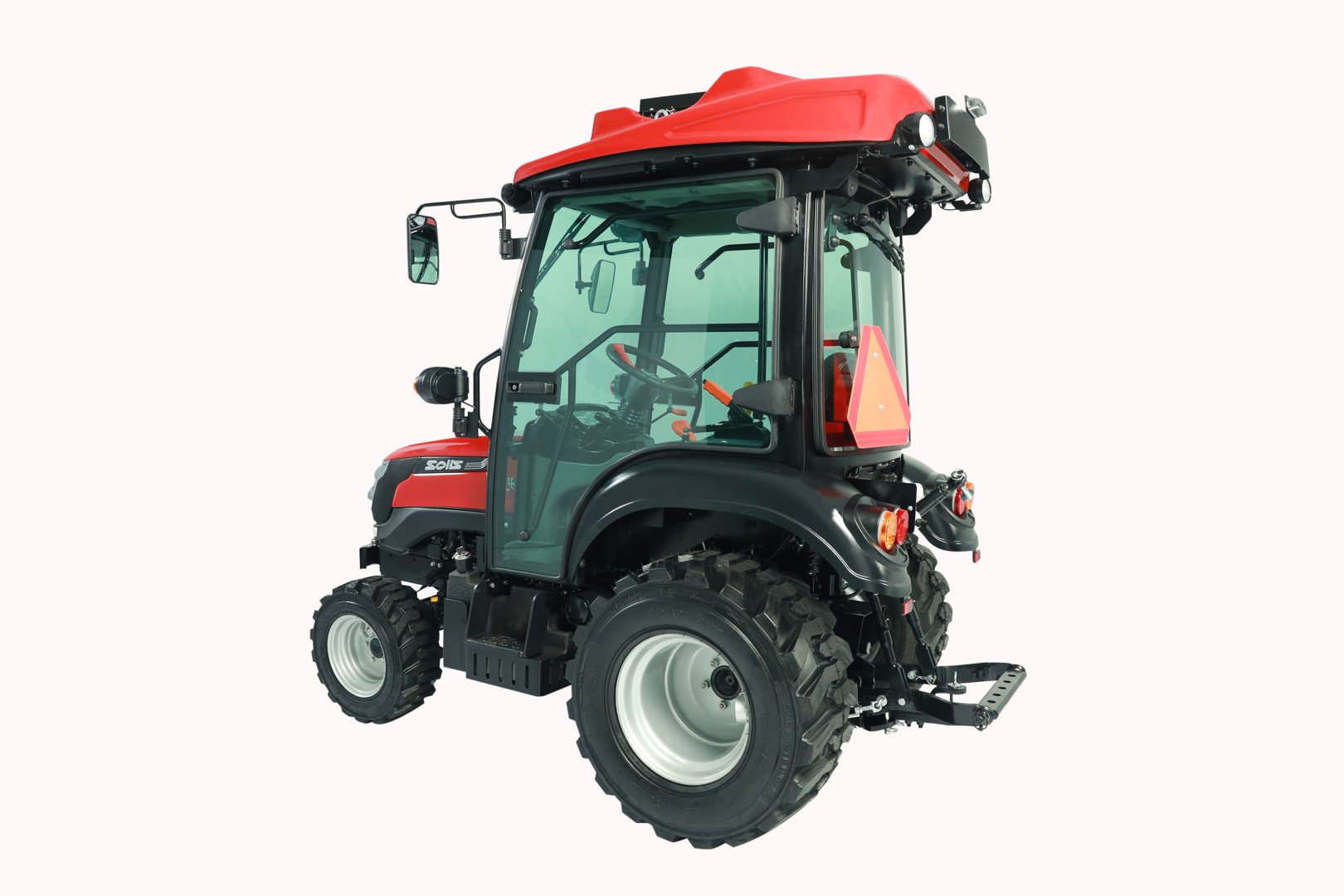

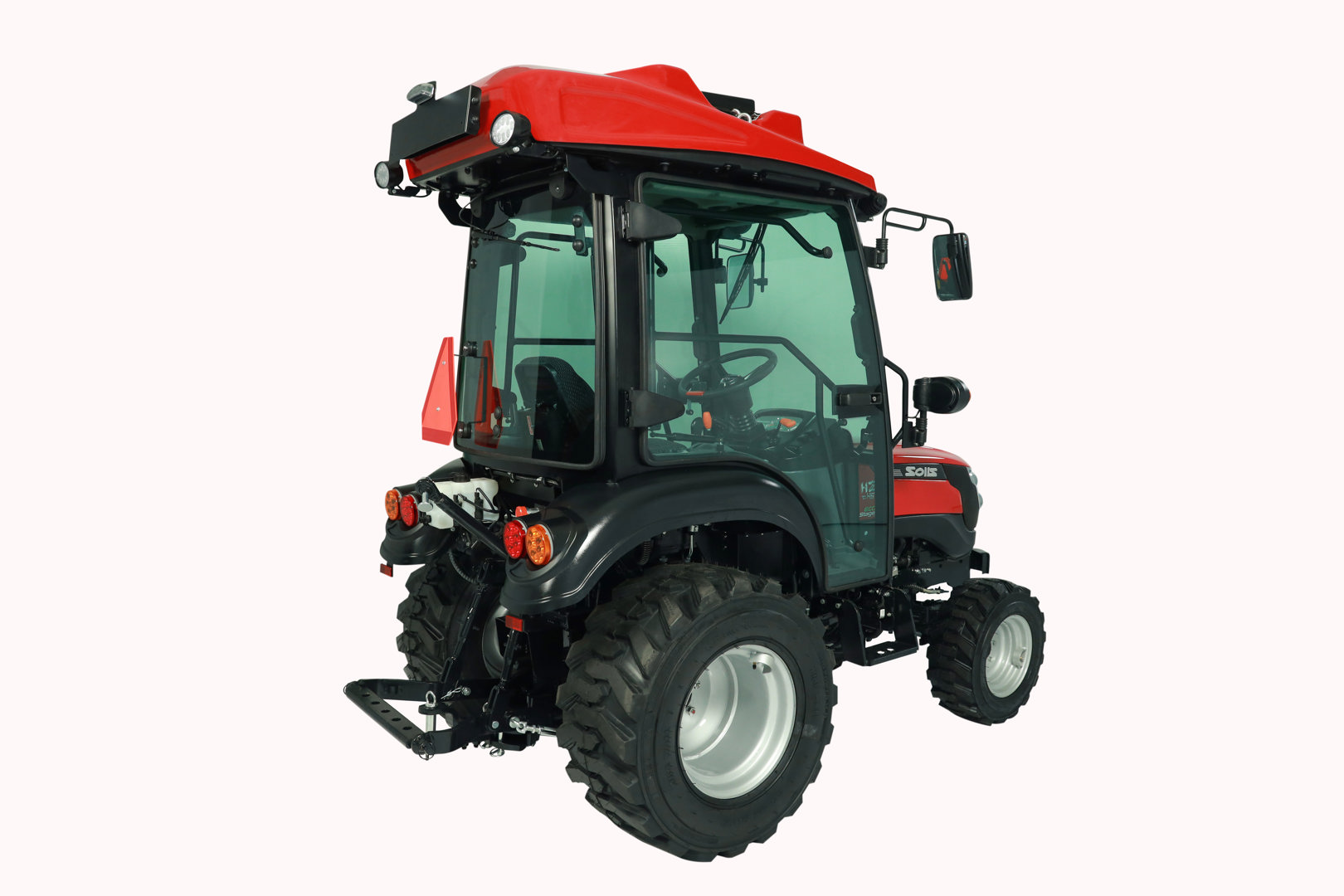

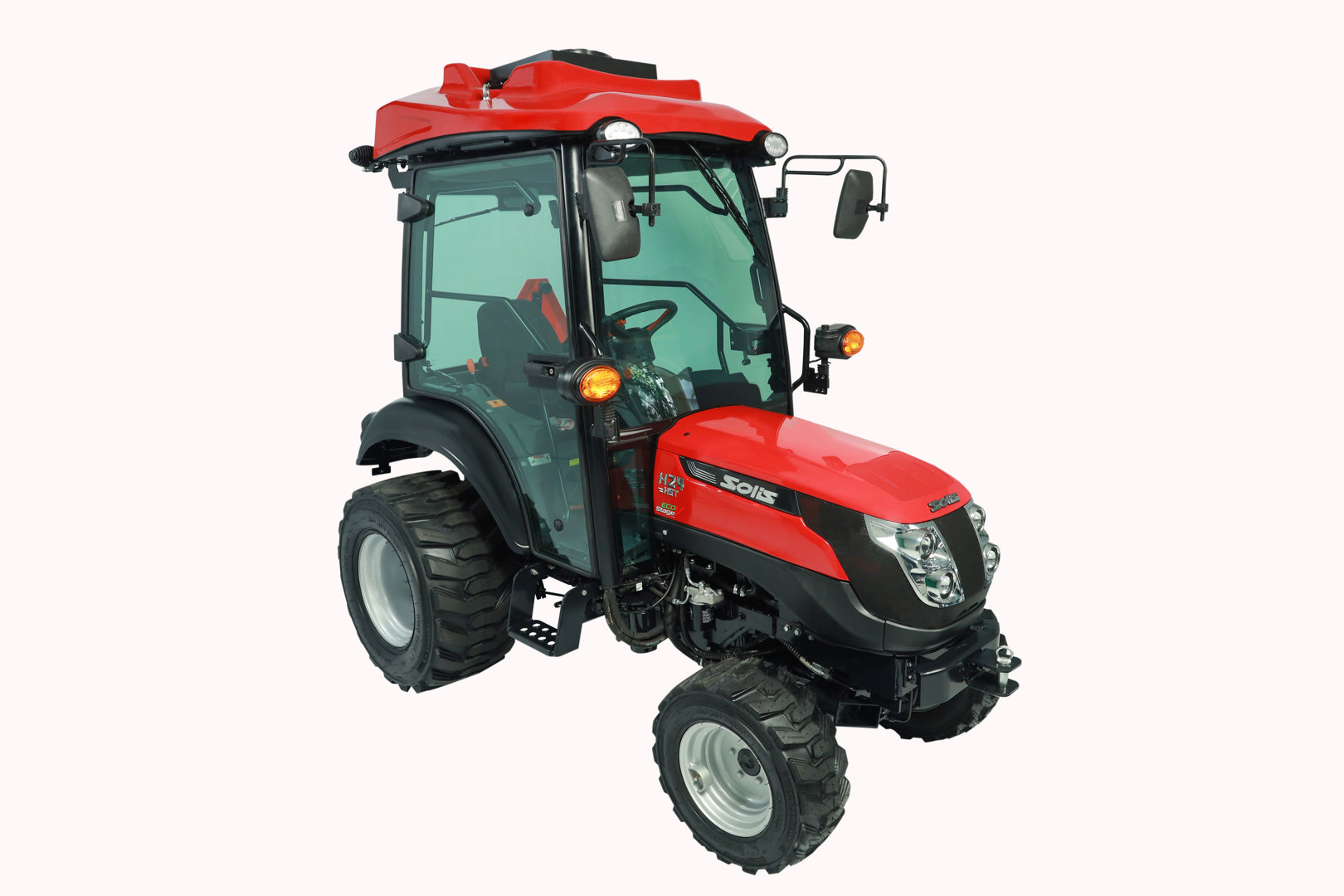

Solis H24 Heat Cab:

Standard Features:

·         Hydraulic Rear Remotes

·         Rear Swing Drawbar

·         MID PTO

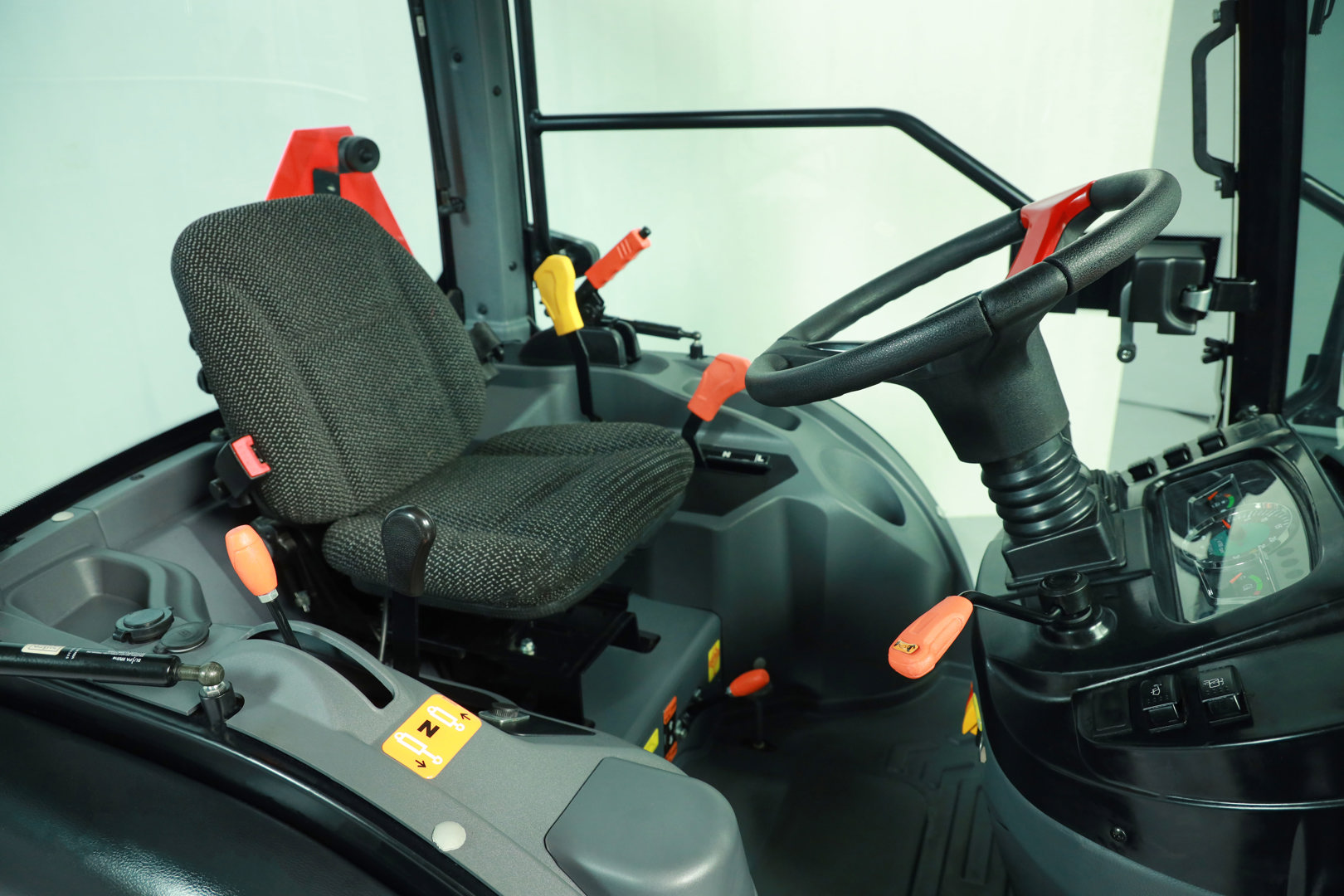

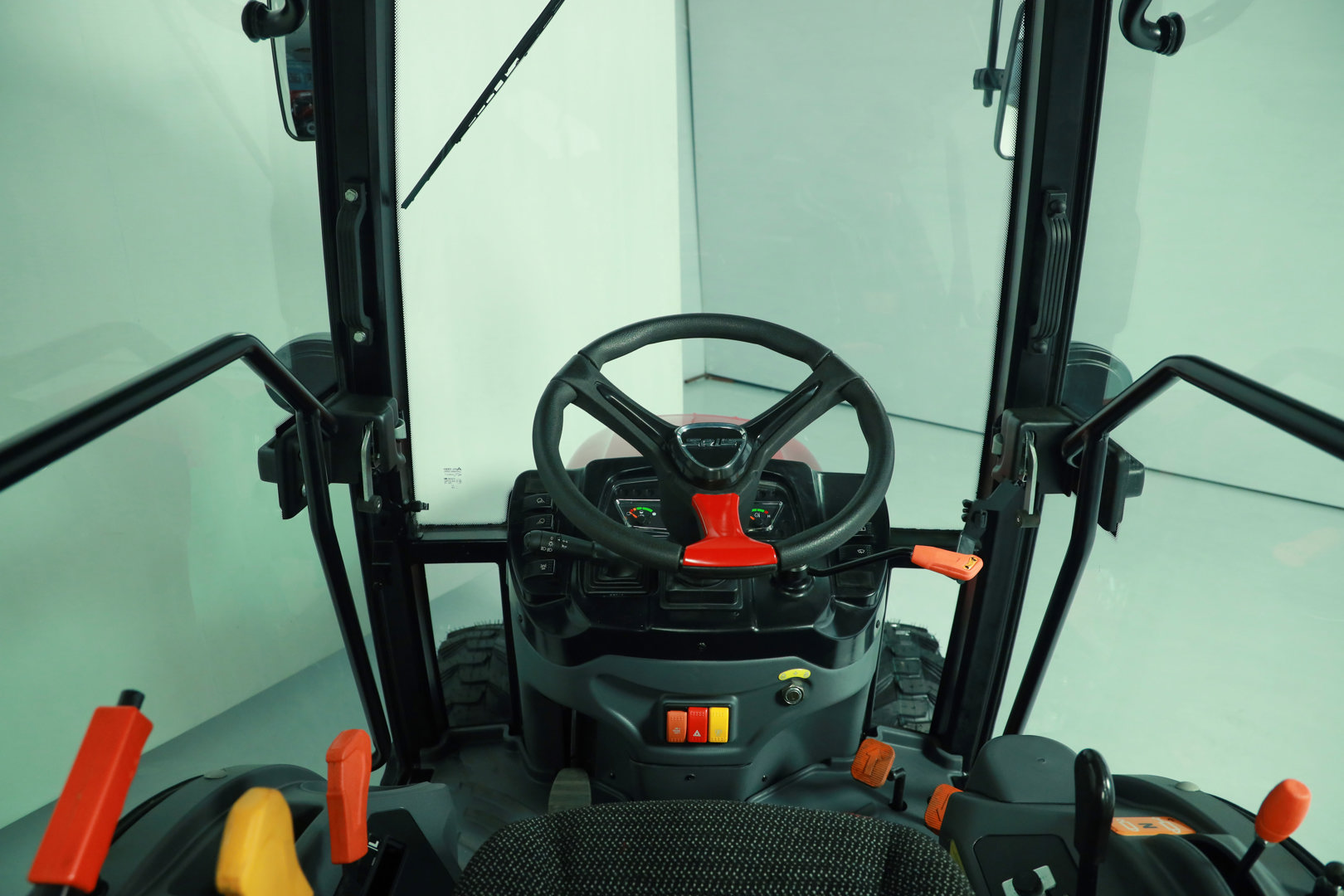

·         AC/Heater Cabin

·         Floor Mat

·         Cruise Control

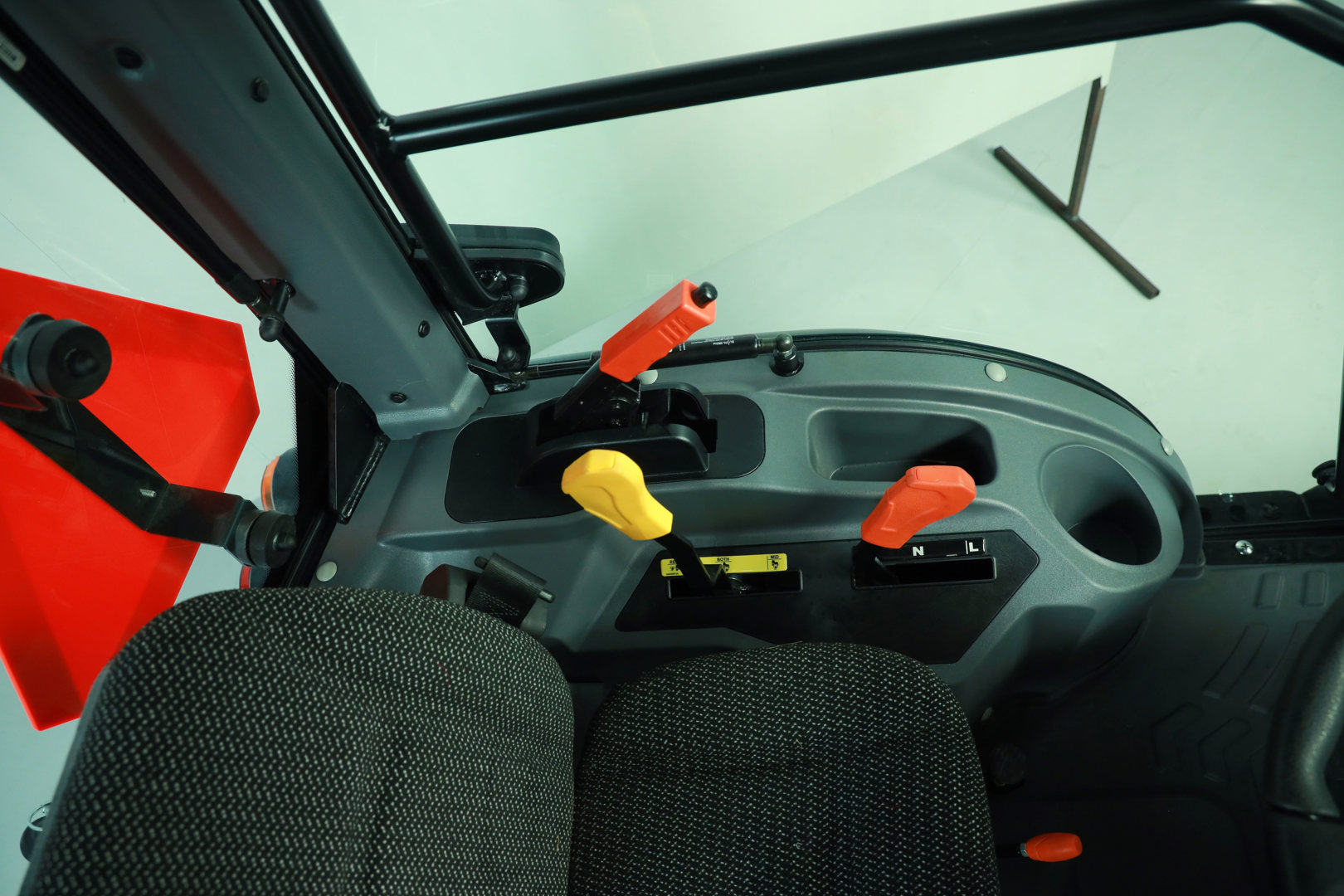

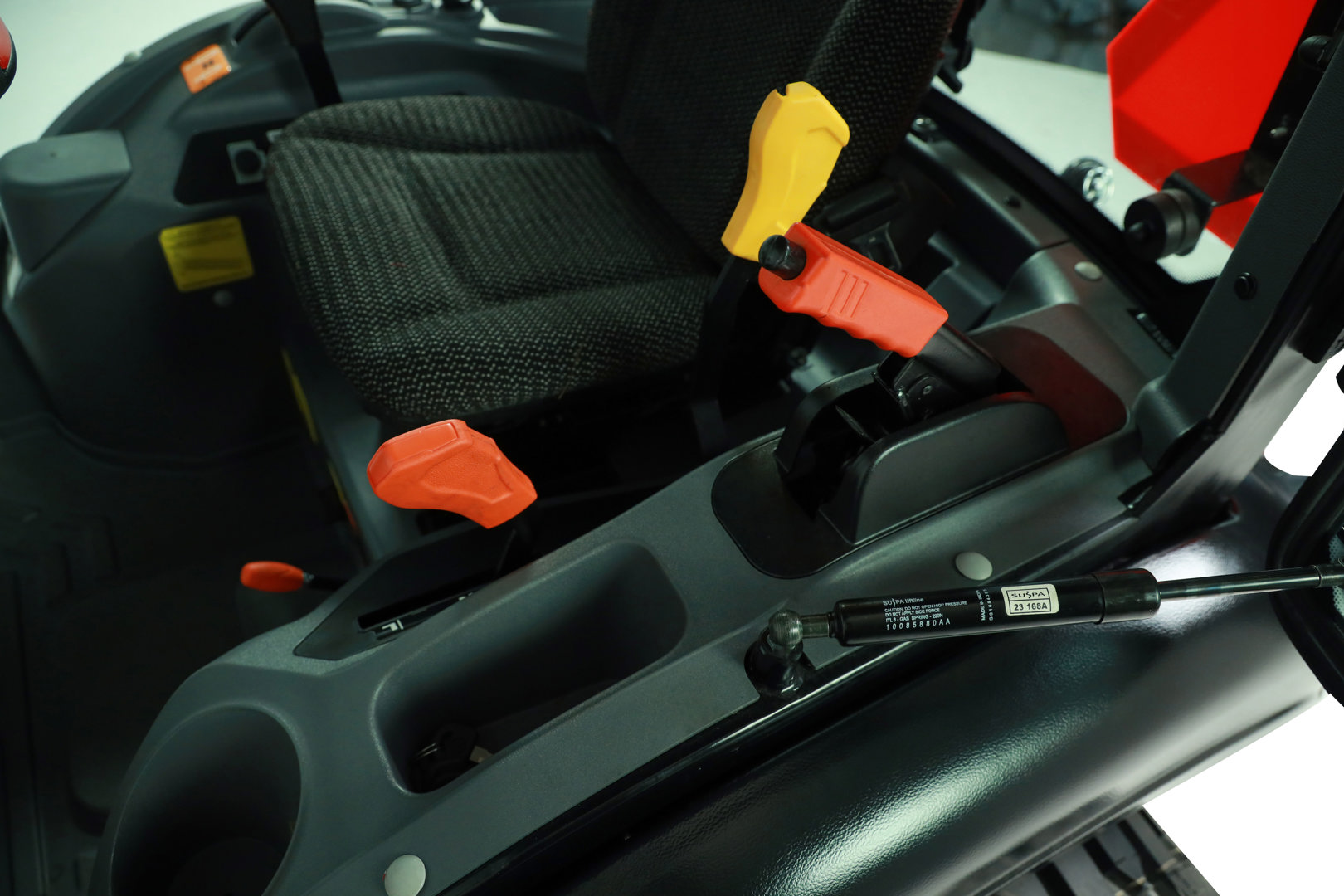

·         Integrated Loader Joystick

·         Projector Headlamps

·         Loader Leveler

·         Front Tow Hook

Specs:

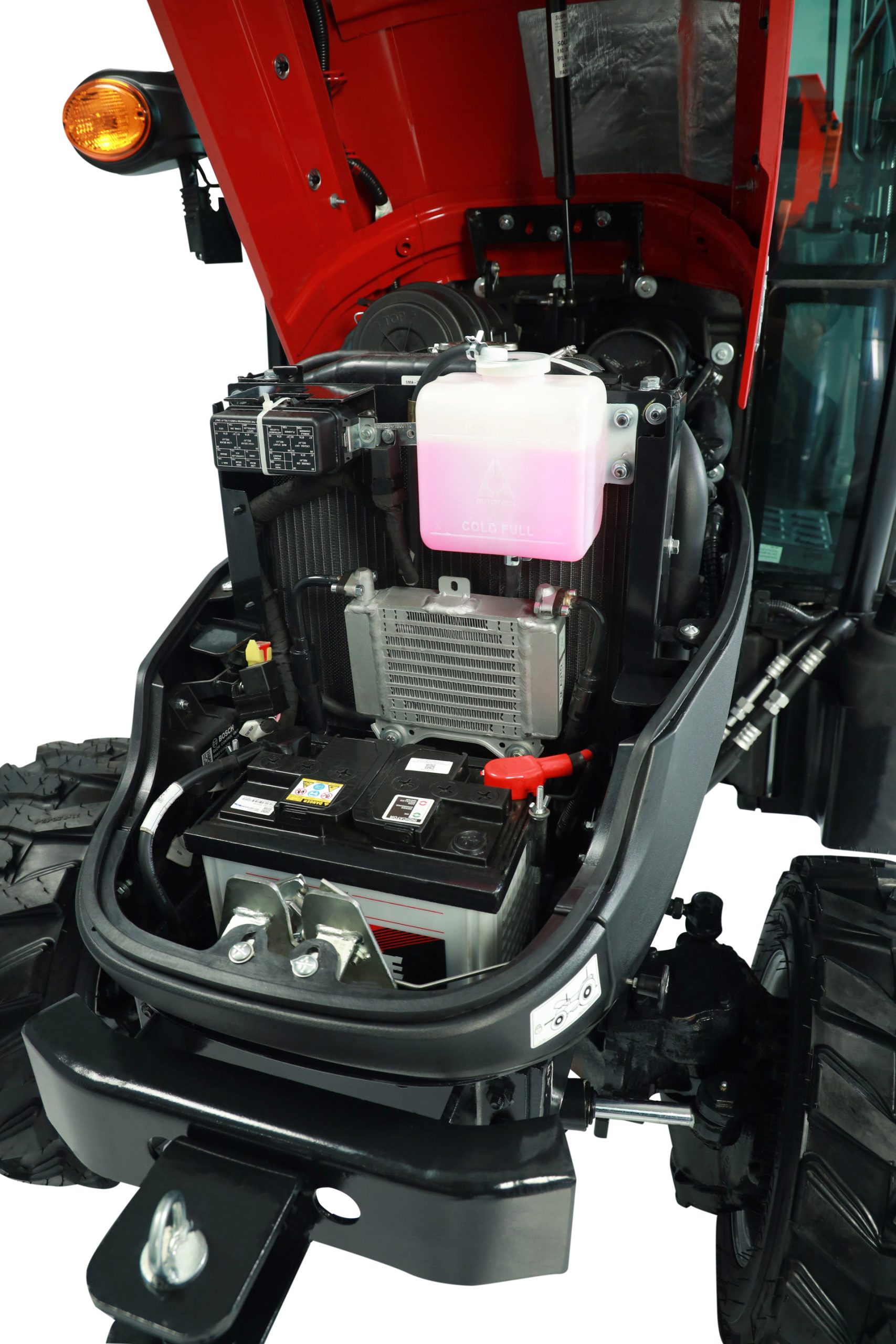

Engine:

·        Engine model: Mitsubishi S3L2

·        HP Category: 24

·        No. Of Cylinder: 3

·        Aspiration: Natural

·        Cubic Capacity: 80

·        Rated RPM: 2500

·        Max Torque: 76Nm@2000

Transmission:

·        Drive: 4WD

·        Forward/ Reverse Controls: Twin Touch Pedals

·        Gearbox: HST (2 Range)

·        Transmission Type: Constant Mesh

·        Cruise Control: Yes

Brakes

·         Type: Oil Immersed Brakes

·         Type of Actuation: Mechanical, Foot Operated

·         Different Lock: Standard

PTO

·        PTO( RPM) : Rear- 530 @ 2451 Mid PTO- 2100 @ 2438

·        PTO Clutch: Wet Type

·        PTO Auction: Button Operated

·        Steering: Power Steering



Hydraulics:

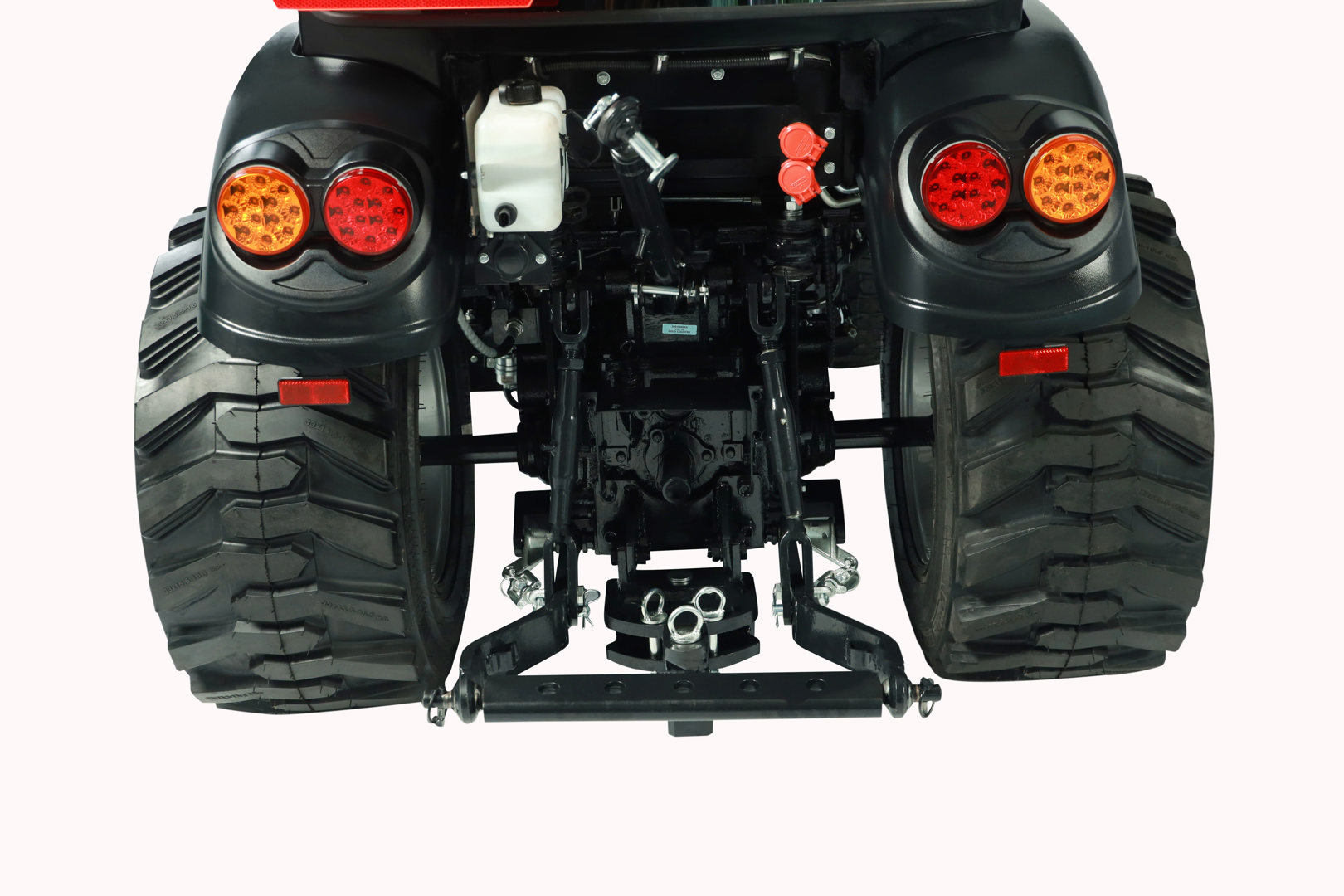

·         3 Point Linkages: CAT-1N

·         3 Point Lifting Capacity @ Ball ends (lbs): 1323

·         Aux Hydraulic Circuit: 1DA ( Deterrent with Float)

·         Total Hydraulic Flow (GPM) 3

Capacity:

·         Fuel Tank (Gal) : 7

Dimensions:

·         Weight (lbs) : 3108

·         Wheelbase (in.) : 61

·         Total Length with TPL (in) : 112

·         Total Width (in) : 47

·         Height (in) upto ROPS : 93

·         Ground Clearance: 9 (Front Axle)



Tires:

·         Industrial: 23×8.50-12 & 33×15.5-16.5

·         Turf 1 : 23×8.50-12 & 33×15.5- 16.5

·         Turf 2: 25×8.50-14 & 13.6×16

·         Agri: 6×12 & 8.3×20

·         Radial Agri: 6.5/80-12 & 280/70R18

·         Galaxy Pro: 220/55/R12 & 280/70R16

·         R14: 23×8.50-12R14T & 12-16.5 R14T

·         R14: 25×8.50-14 & 14-17.5

Loader Technical Specifications:

Loader Model

HLN24

HB24

NSL/MSL

NSL

MSL

Max lifting Height at Pivot (in)

82

85

Clearance with Attachment Dump ( In)

61

58

Reach @ Maximum Height (in)

33

17

Reach @ Bucket Ground (in)

63

56

Max Drop Axle (deg)

44

45

Attachment Rollback Angle (deg)

31

43

Digging Depth Below Grade (in)

2.5

5.9

Breakout Force Pivot Point (Dig Position) (lbs)

1565

1146

Bucket Width (in)

48

60

Lifting Cap. To Full Height at Pivot Point (lbs)

1500

1411

3rd Function

Optional

Optional
