Solis tractors are now available on an order-only basis. For inquiries, orders, or delivery timelines, please reach out to our sales team.

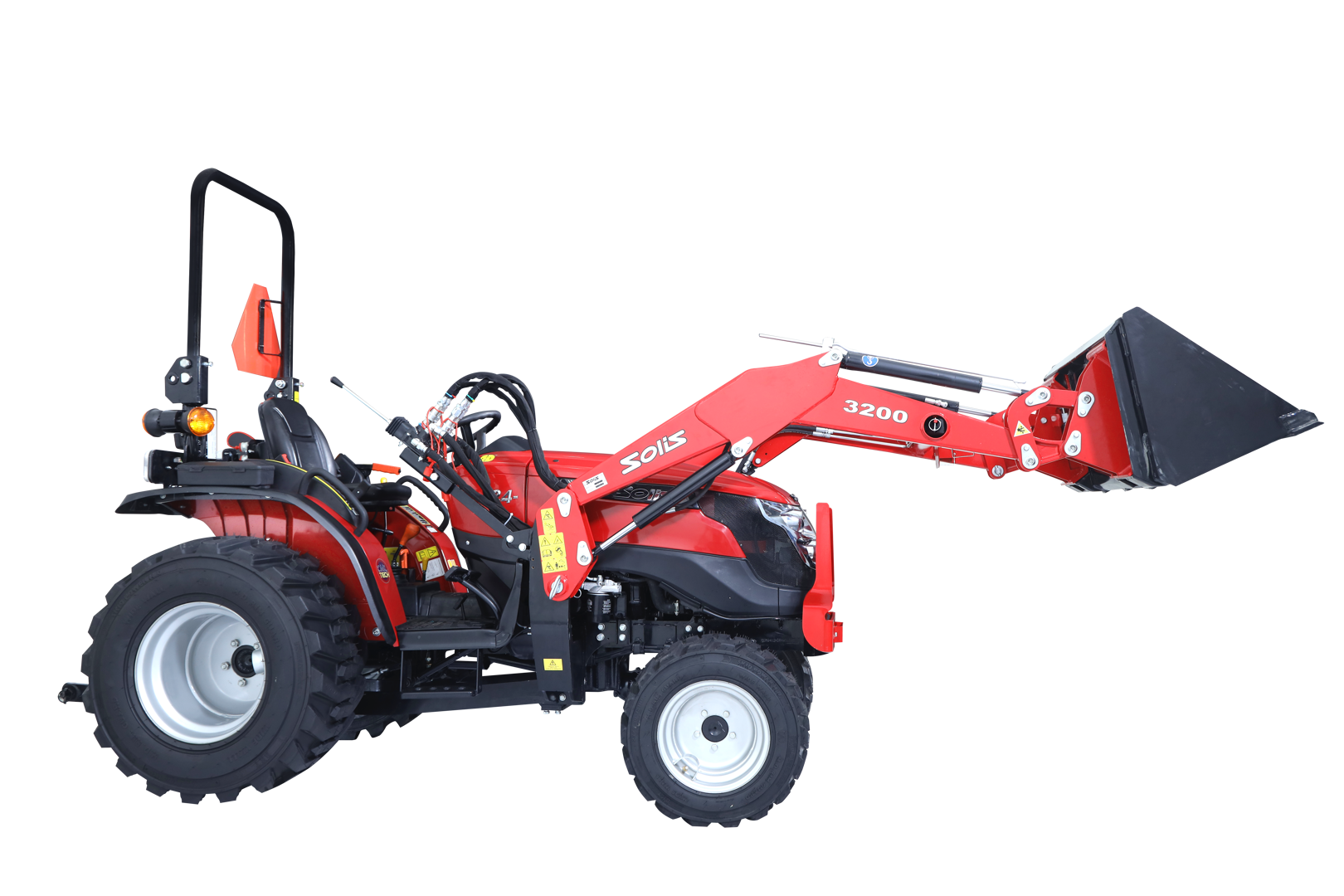

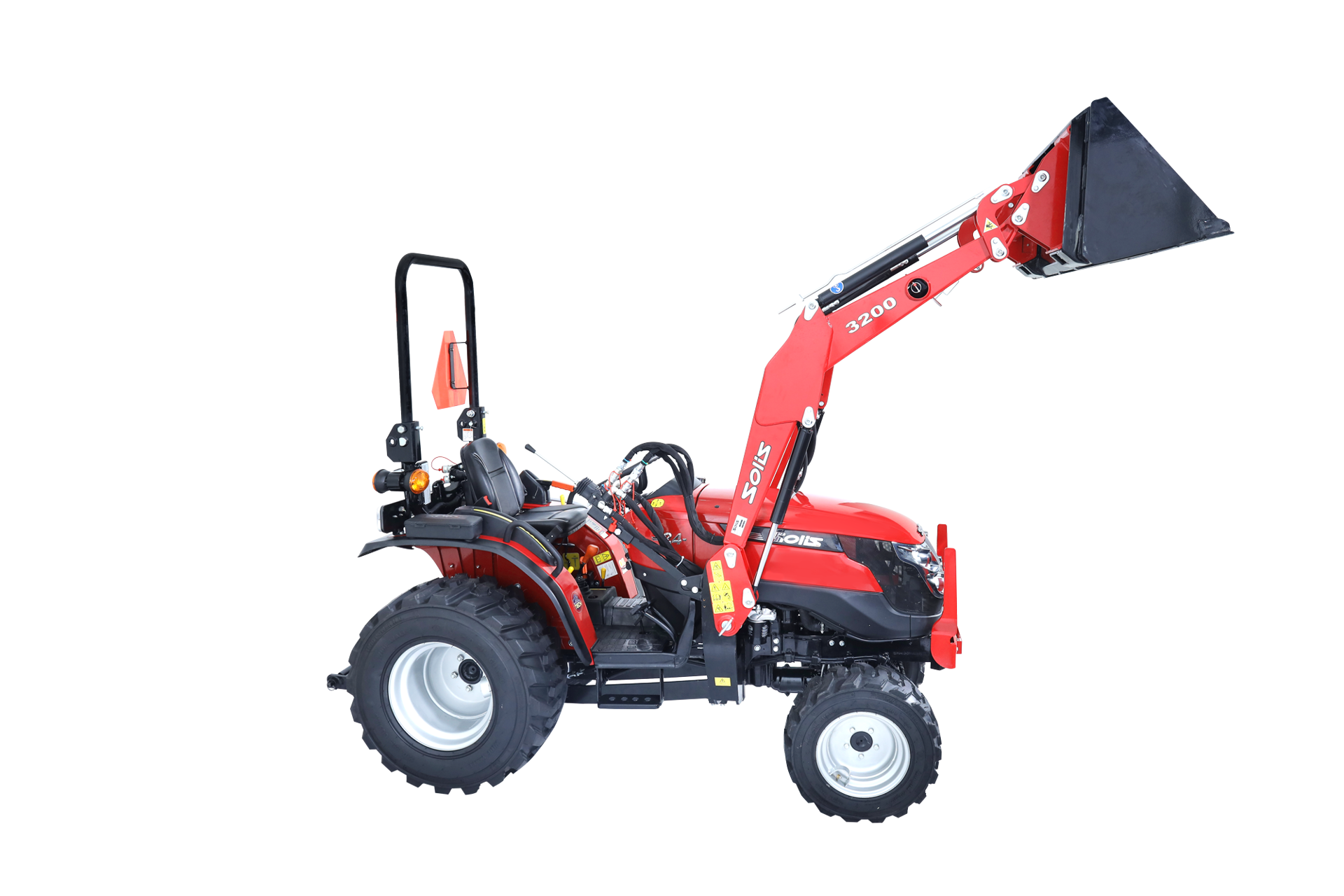

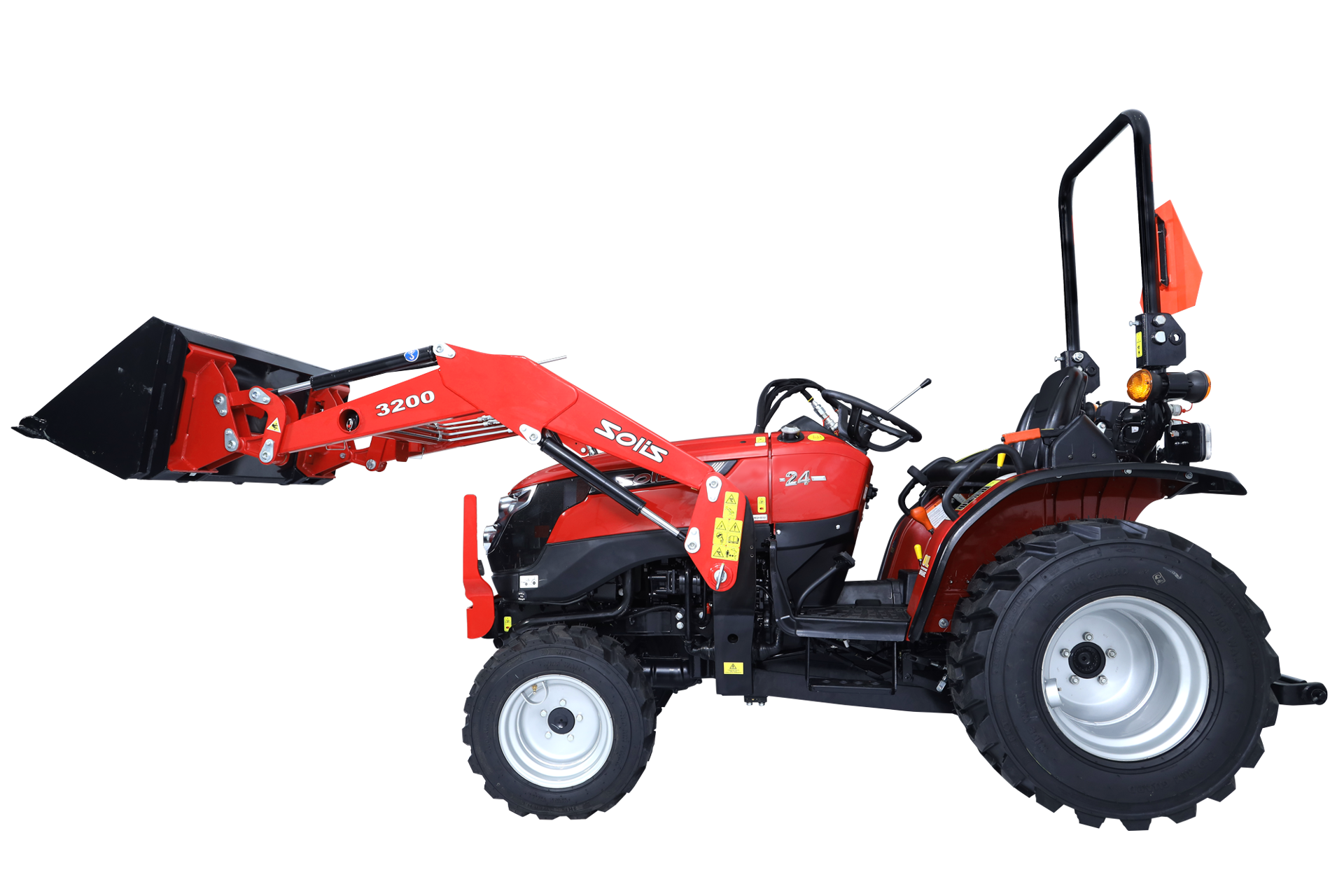

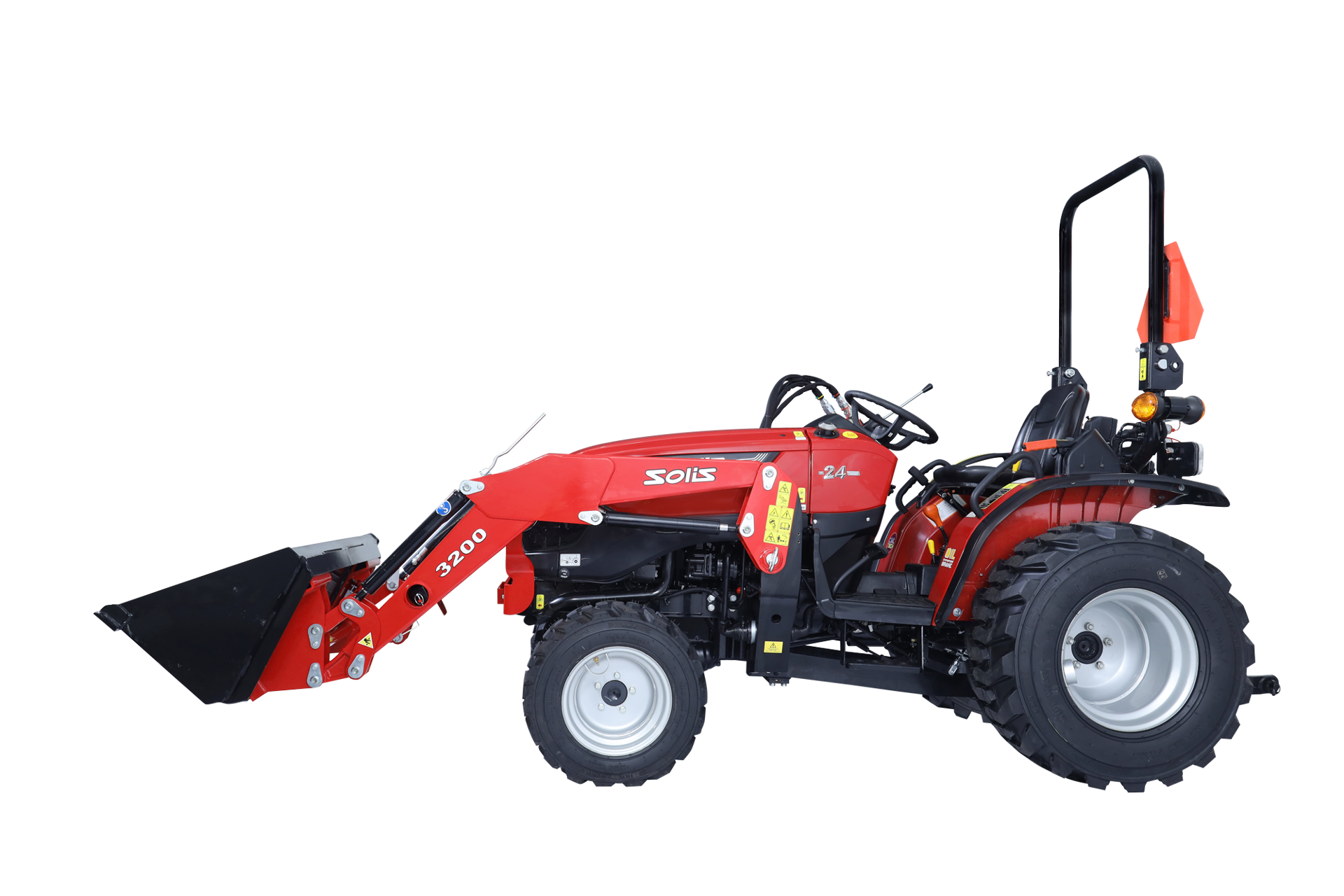

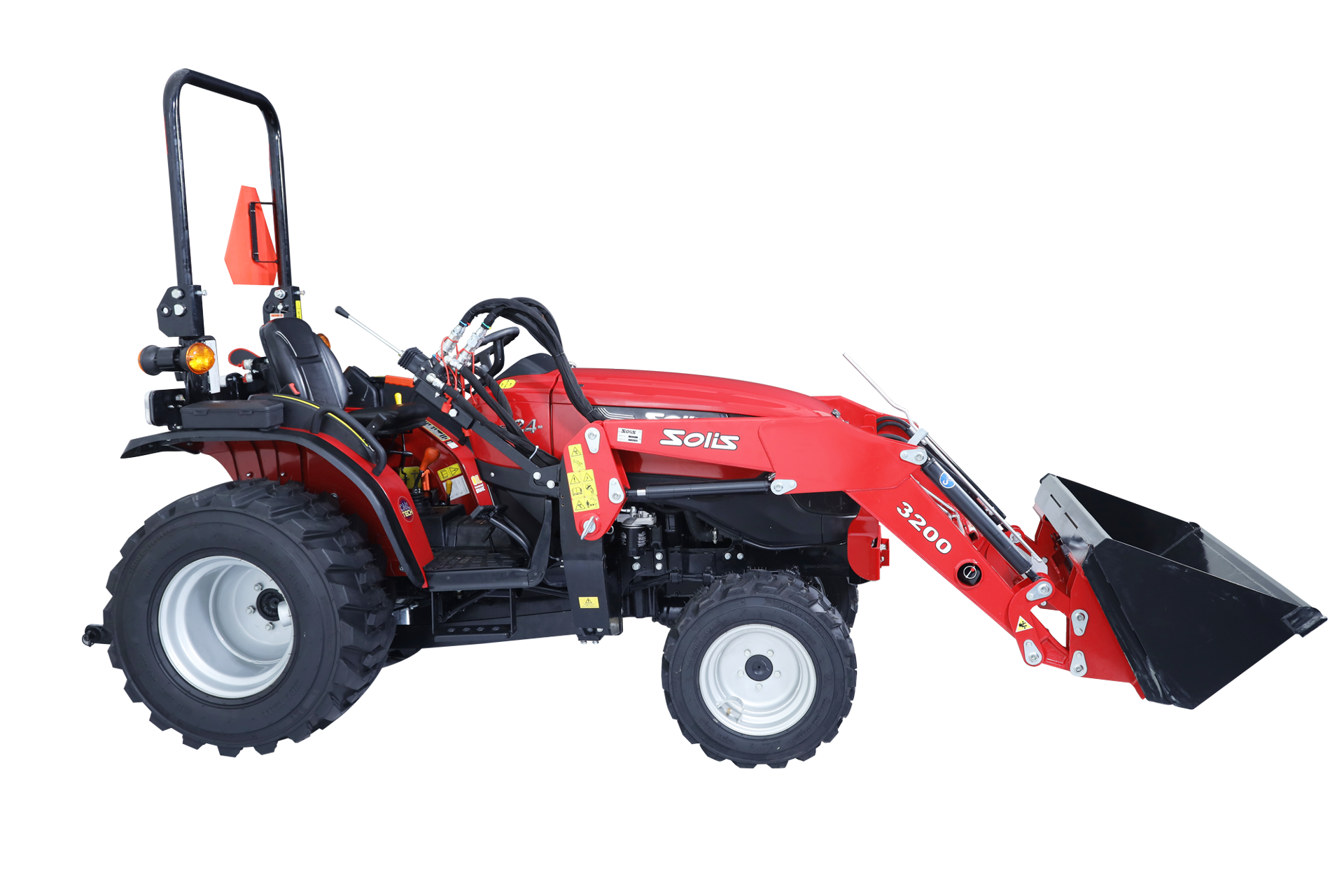

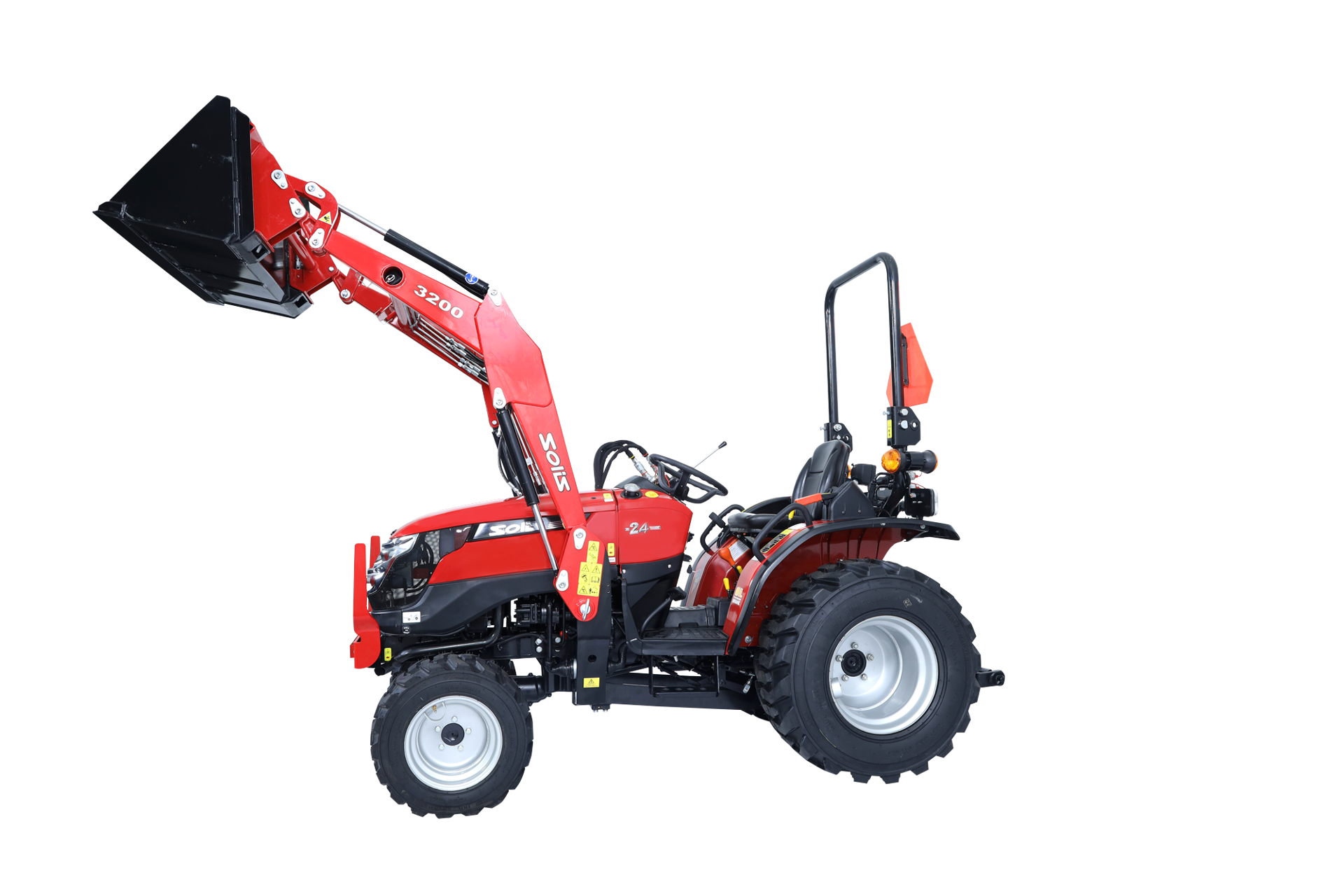

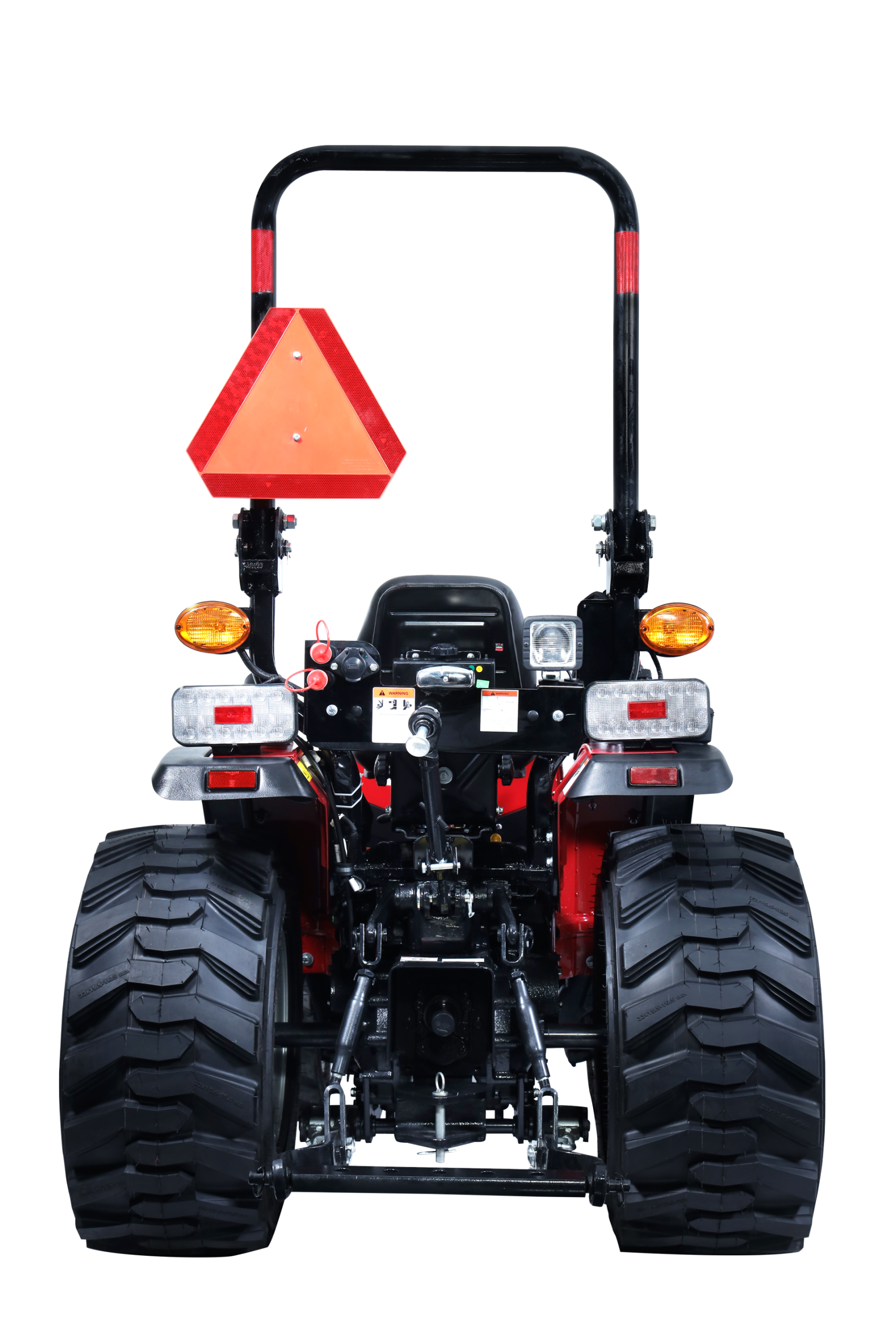

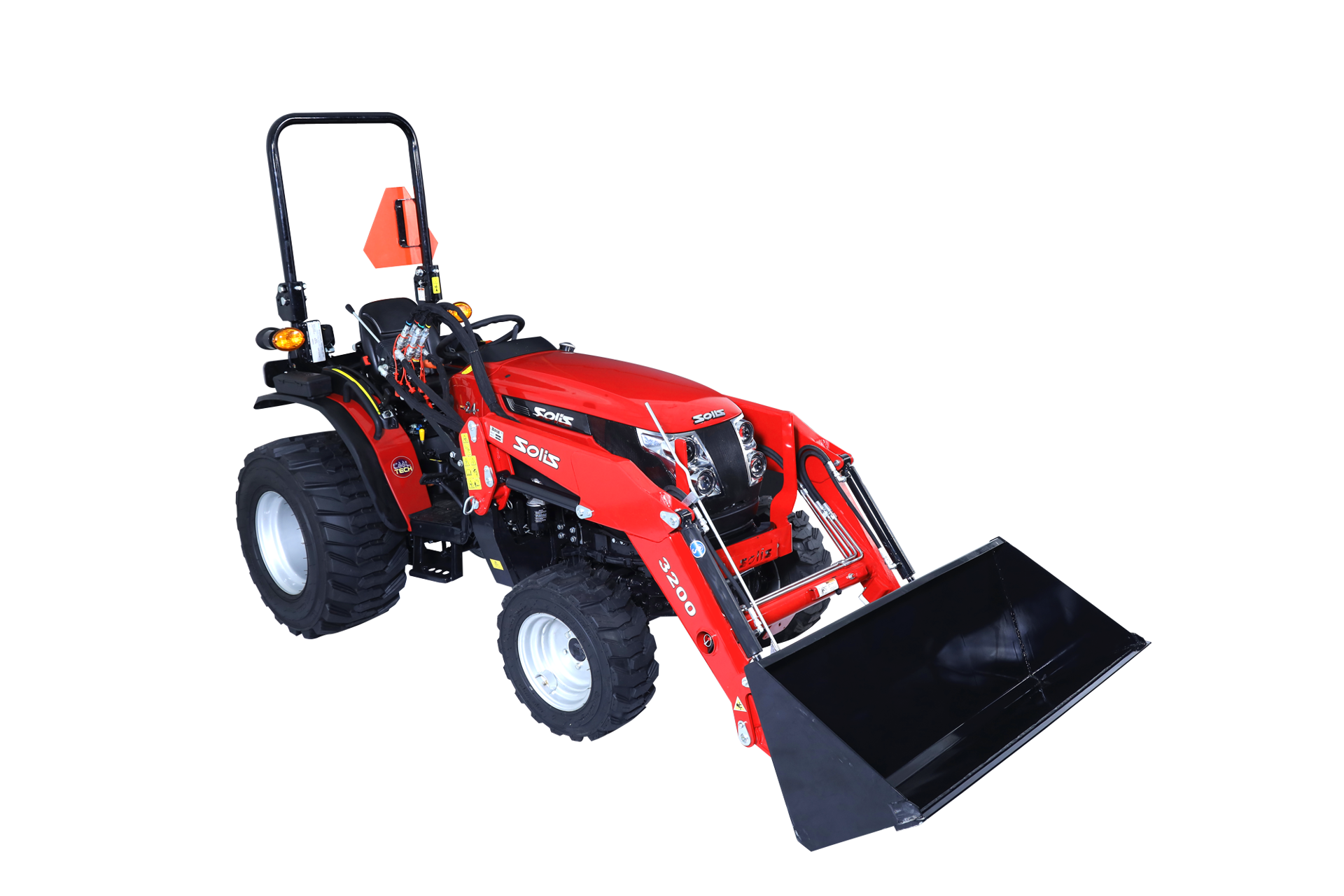

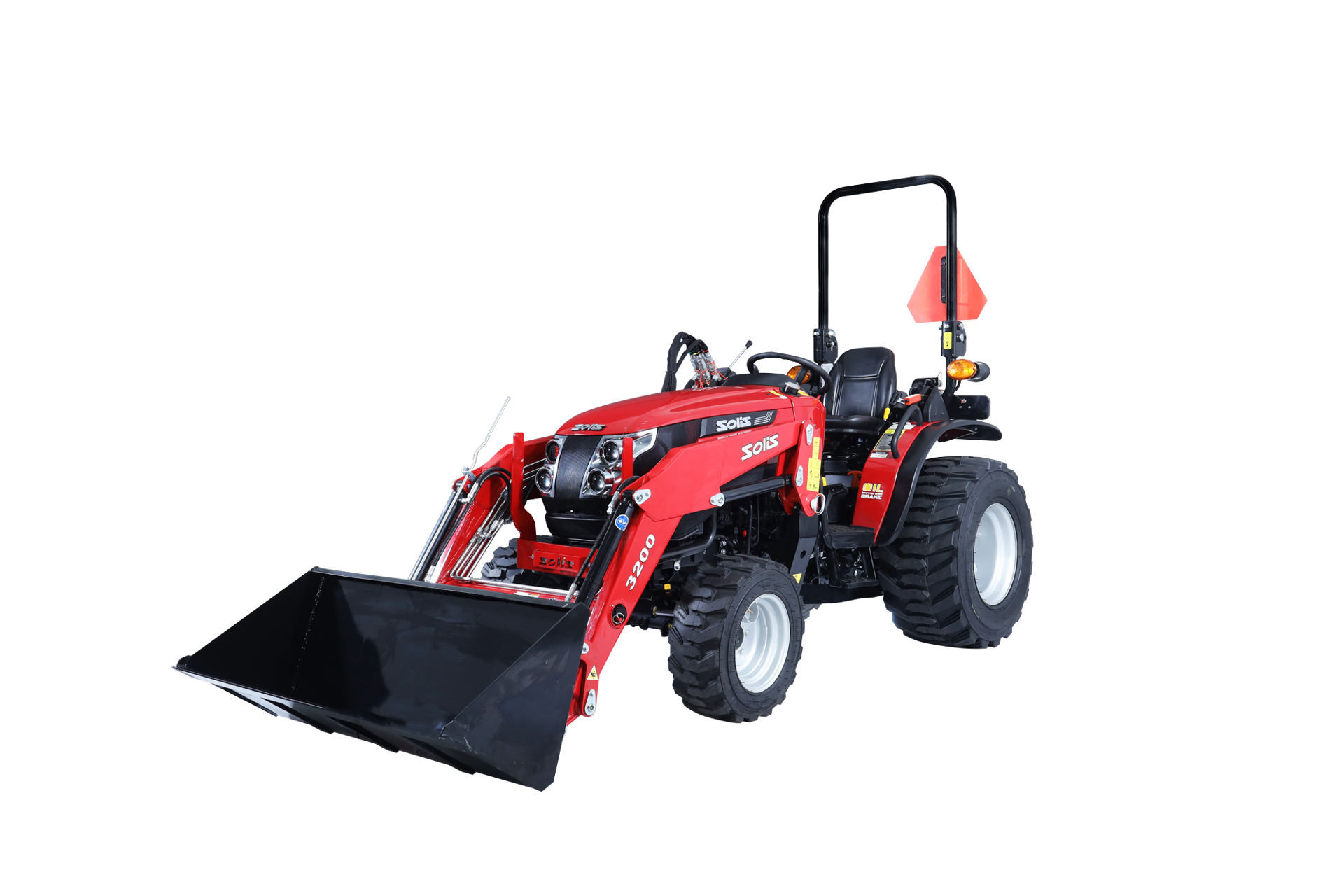

Solis H24

Standard Specs:

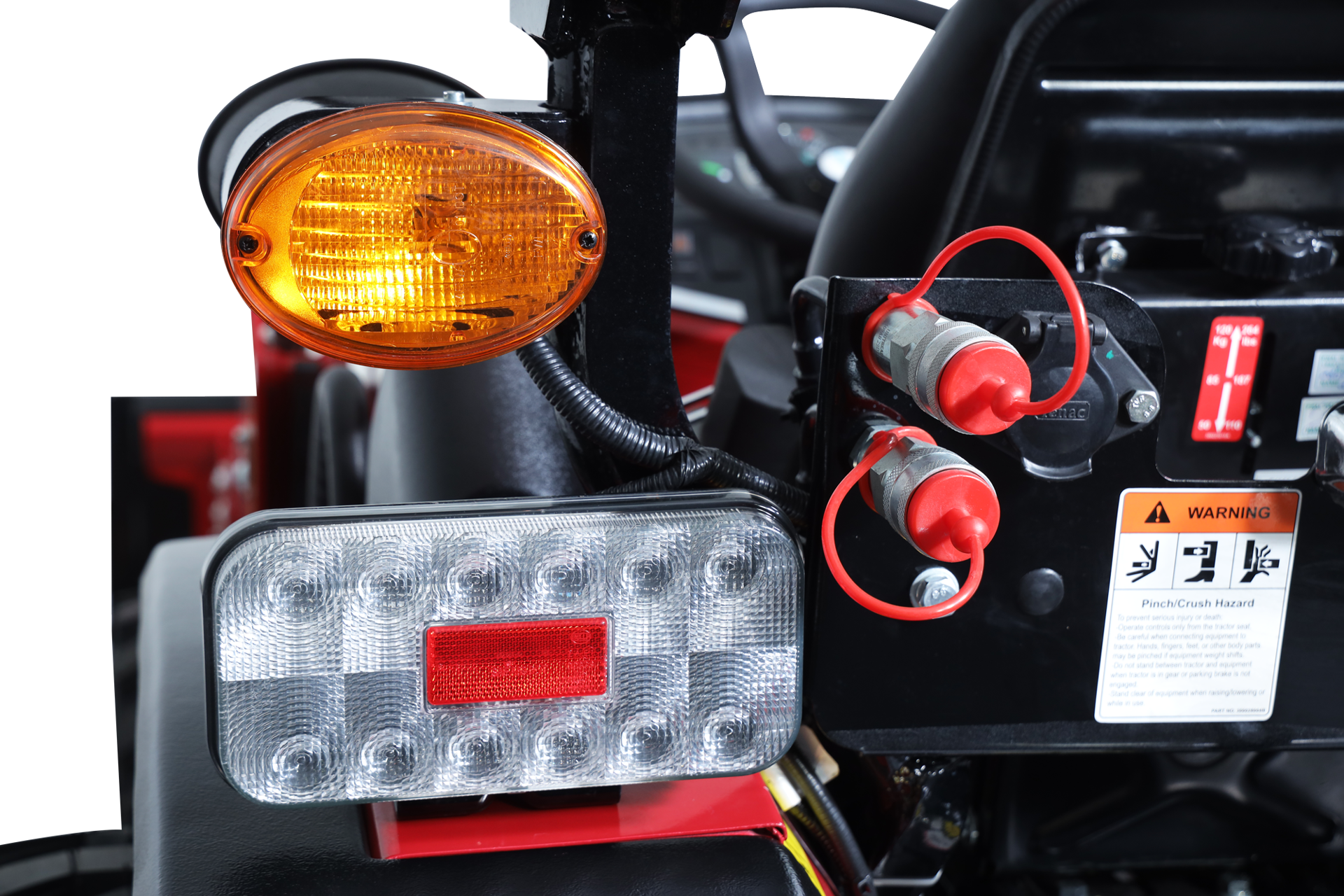

·         Standard Hydraulic Rear Remotes

·         Standard Rear Swing Drawbar

·         Standard MID PTO

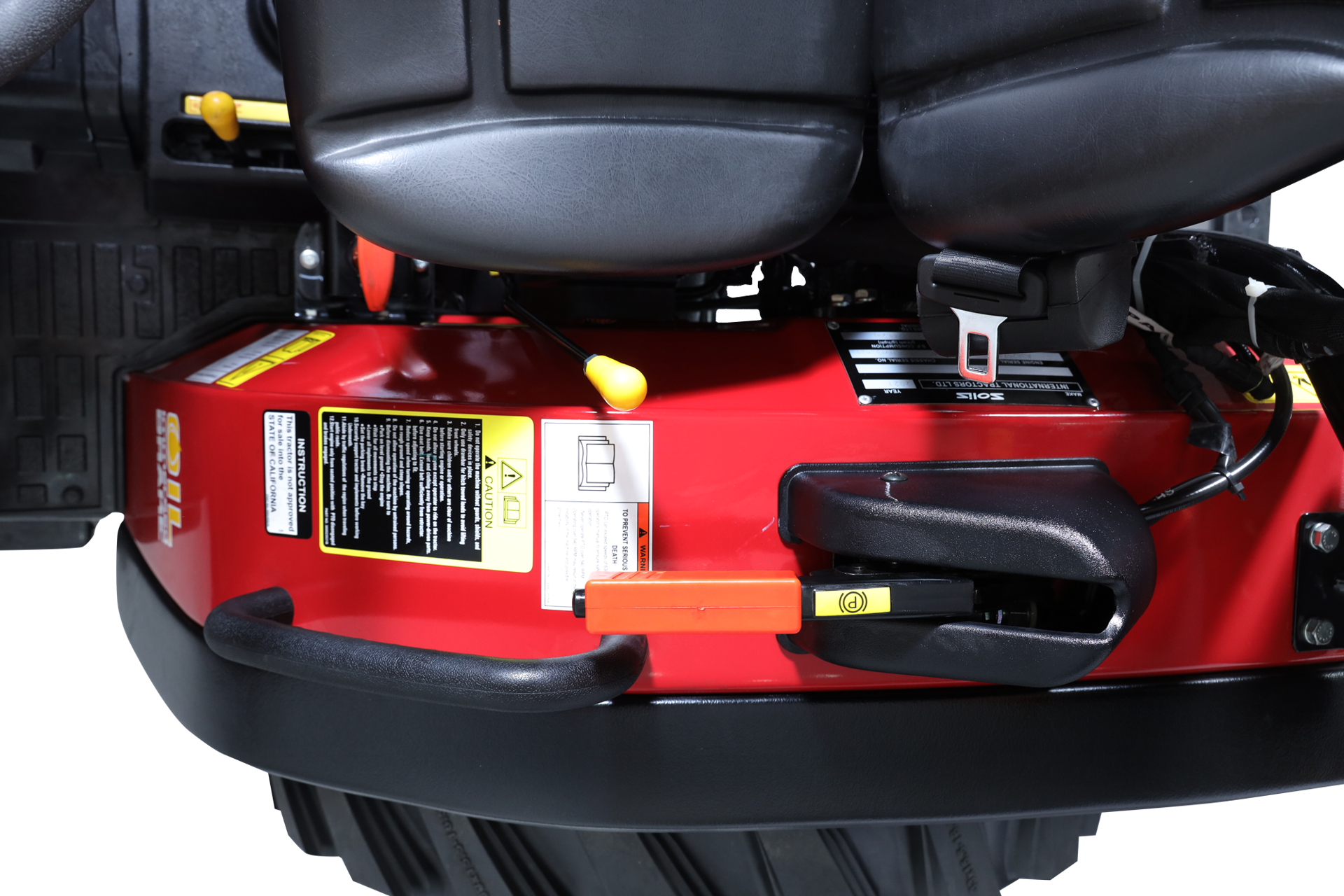

·         Standard Seat with Armrest

·         Standard Floormat

·         Cruise Control

·         Integrated Loader Joystick

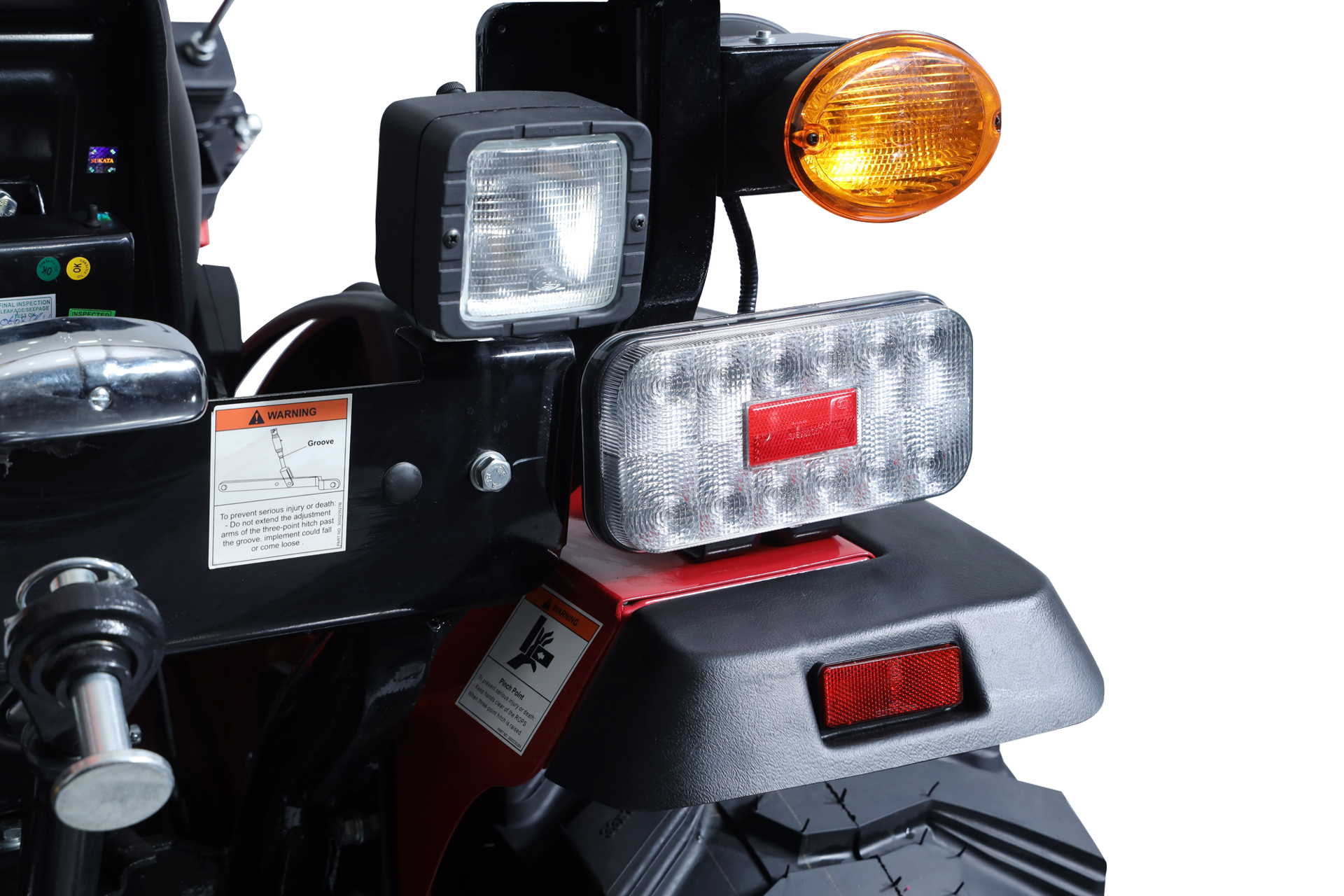

·         Standard Projector Headlights

·         Loader Leveler

·         Standard Front Tow Hook



Specifications:

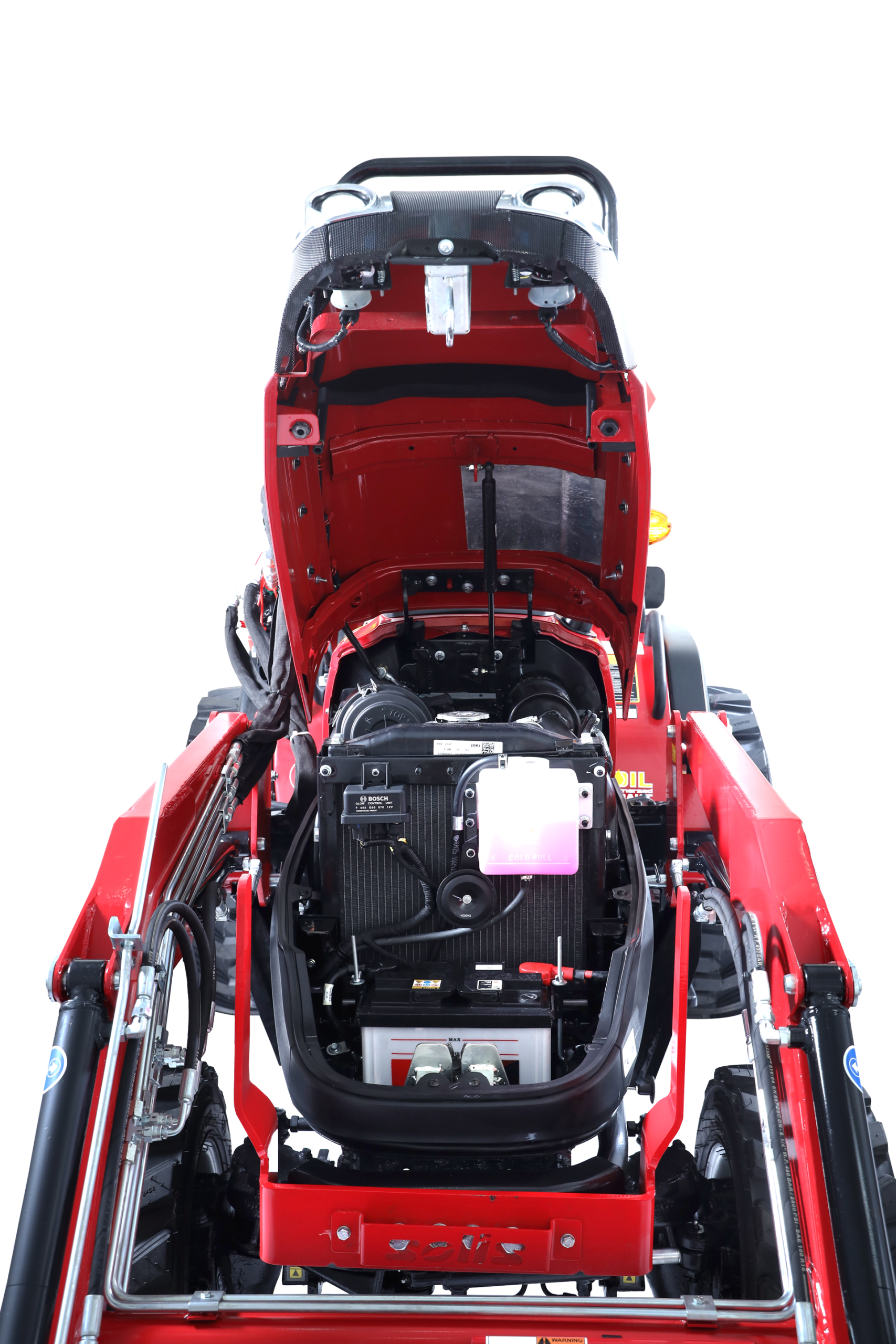

Engine:

·         Engine Model: Mitsubishi S3L2

·         HP Category: 24

·         No. Of Cylinder: 3

·         Aspiration: Natural

·         Cubic Capacity (Ci) : 80.42

·         Rated RPM: 2500

·         Max Torque : 76.3 Nm @ 2000

Transmission:

·         Drive: 4WD

·         Forward/ Reverse Controls: Twin Touch Pedals

·         Gearbox: HST (2 Range)

·         Transmission Type : Constant Mesh

·         Cruise Control: Yes

Brakes:

·         Type: Oil Immersed Brakes

·         Type Of Auction: Mechanical, Foot Operated

·         Differential Lock: Standard

PTO:

·         PTO (RPM): Rear- 540 @ 2451 Mid PTO- 2100 @ 2438

·         PTO Clutch: Wet Type

·         PTO Actuation:  Button Operated

·         Steering : Power Steering

Hydraulics:

·         3 Point Linkage: CAT-IN

·         3 Point Lifting Capacity @ ball ends (lbs) : 1323

·         Aux Hydraulic Circuit: 1DA (Detent with Float)

·         Total Hydraulic Flow (GPM) 3.98

Capacity:

·         Full Tank (Gal) : 7

Dimensions & Weight (AGRI Tires):

·         Weight (lbs.) : 2513

·         Wheelbase (in) : 61.8

·         Total Length with TPL (in) : 113.98

·         Total Width (in) : 47.83

·         Height (in) up to ROPS : 91.53

·         Ground Clearance: 9.44 (Front Axle)

Tires:

·         Industrial: 23×8.50-12 & 33×15.5-16.5

·         Turf 1: 23×8.50-12 & 33×15.5-16.5

·         Turf 2: 25×8.50-14 & 13.6×16

·         AGRI 1: 6×12 & 8.3×20

·         AGRI 2: 7×14 & 8.3×24

·         Radial Agri: 6.5/80-12 & 280/70R18

·         Galaxy Pro: 220/55 R15 & 280/70R16

·         R14: 25×8.50-14 & 14-17.5

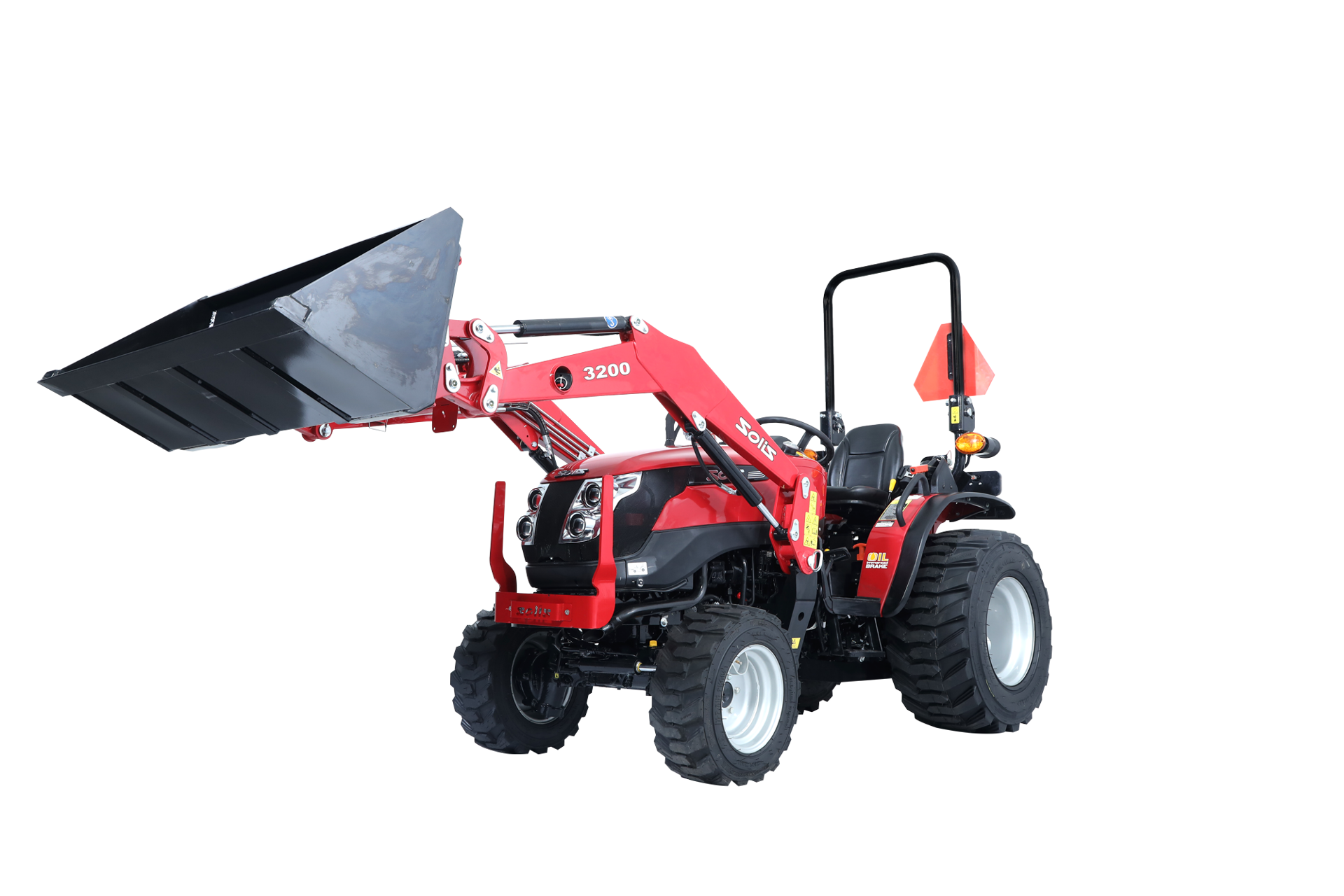

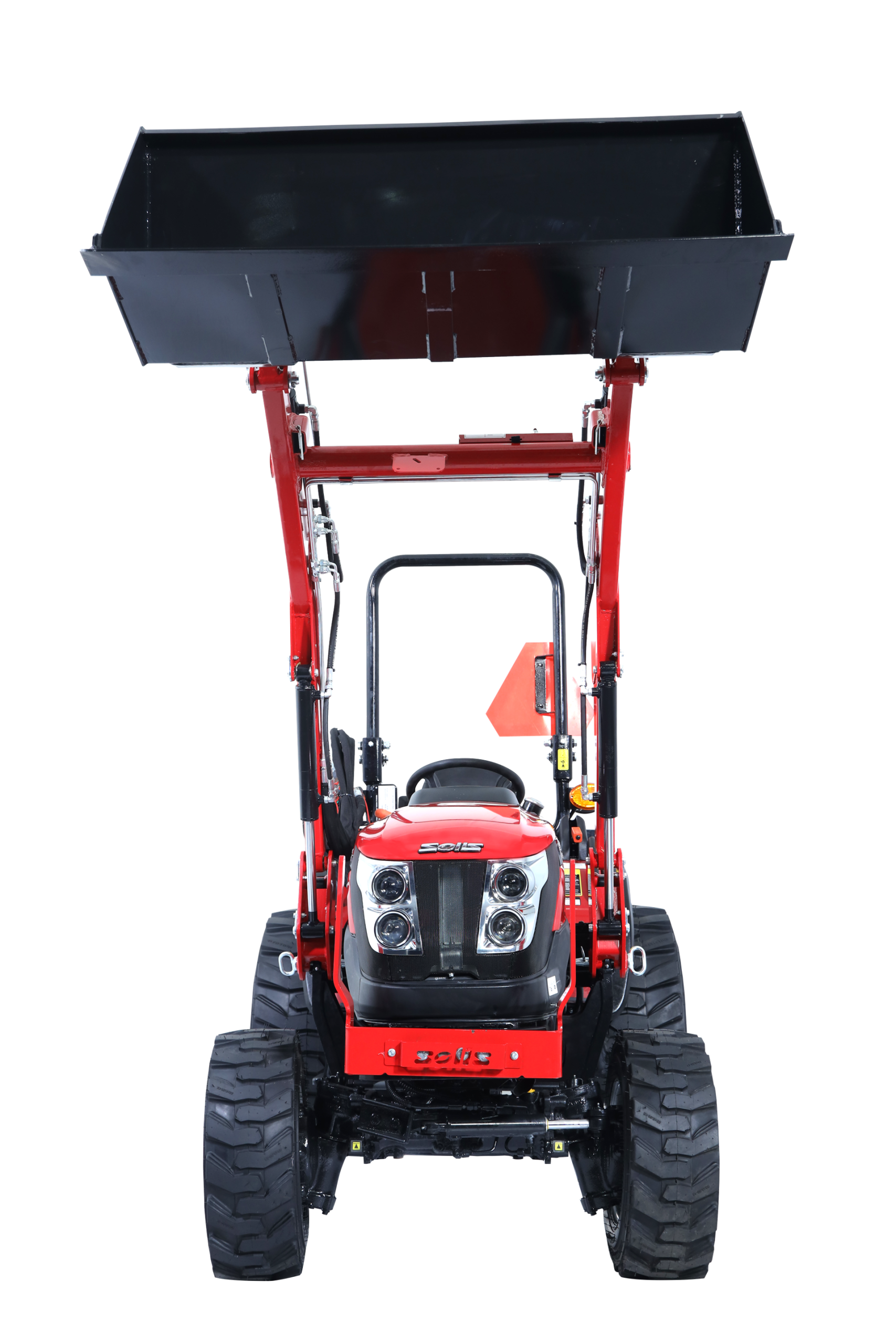

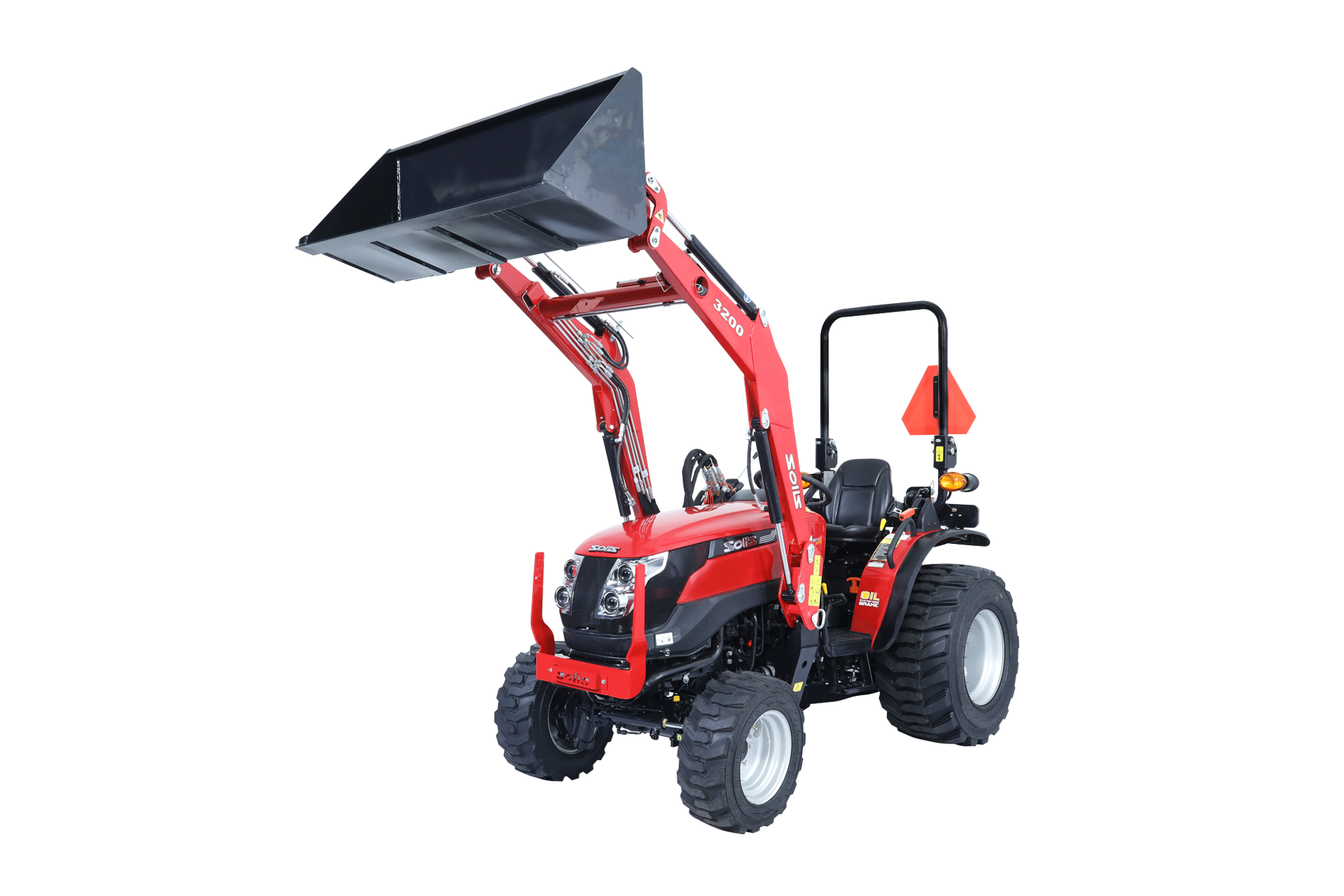

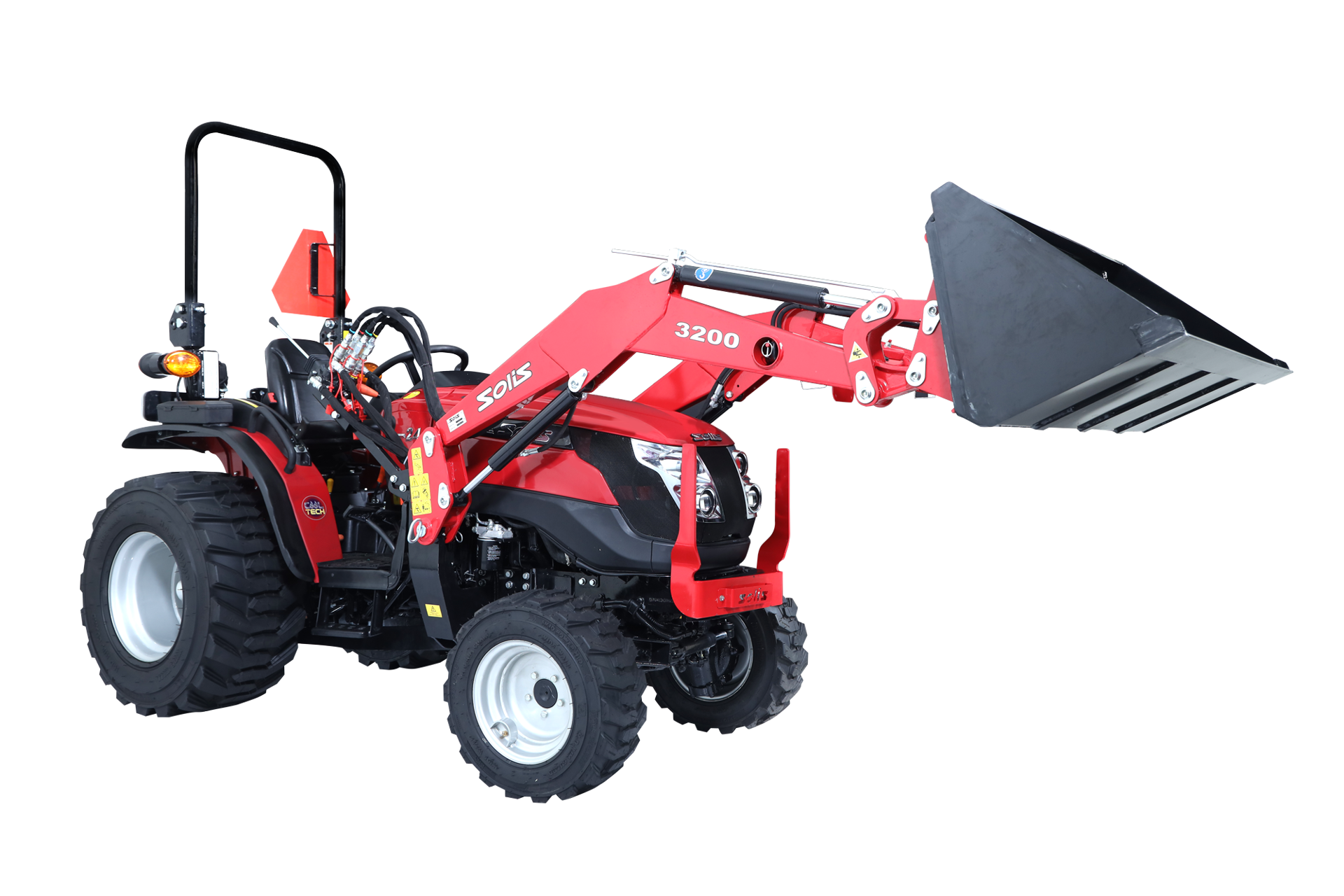

Loader Specs:

Loader Model

HLN24

HBLN24

HB24

NSL/MSL

NSL

NSL

MSL

Max Lifting Height @ Pivot Point (in)

82

85

85

Clearance with Attachment Dump (in)

61

61

58

Reach @ Maximum Height (in)

33

17

17

Reach @ Bucket on Ground (in)

63

56

56

Max Dump Angle (Deg.)

44

45

45

Attachment Rollback Angle (Deg.)

31

43

43

Digging Depth Below Grade (in)

2.5

5.9

5.9

Breakout Force @ Pivot Point (Dig Position) (lbs)

1565

1058

1146

Bucket Width (in)

48

52

60

Lifting Cap. To Full Height  @ Pivot Point (lbs)

1500

926

1411

3rd Function

Optional

Optional

Optional
