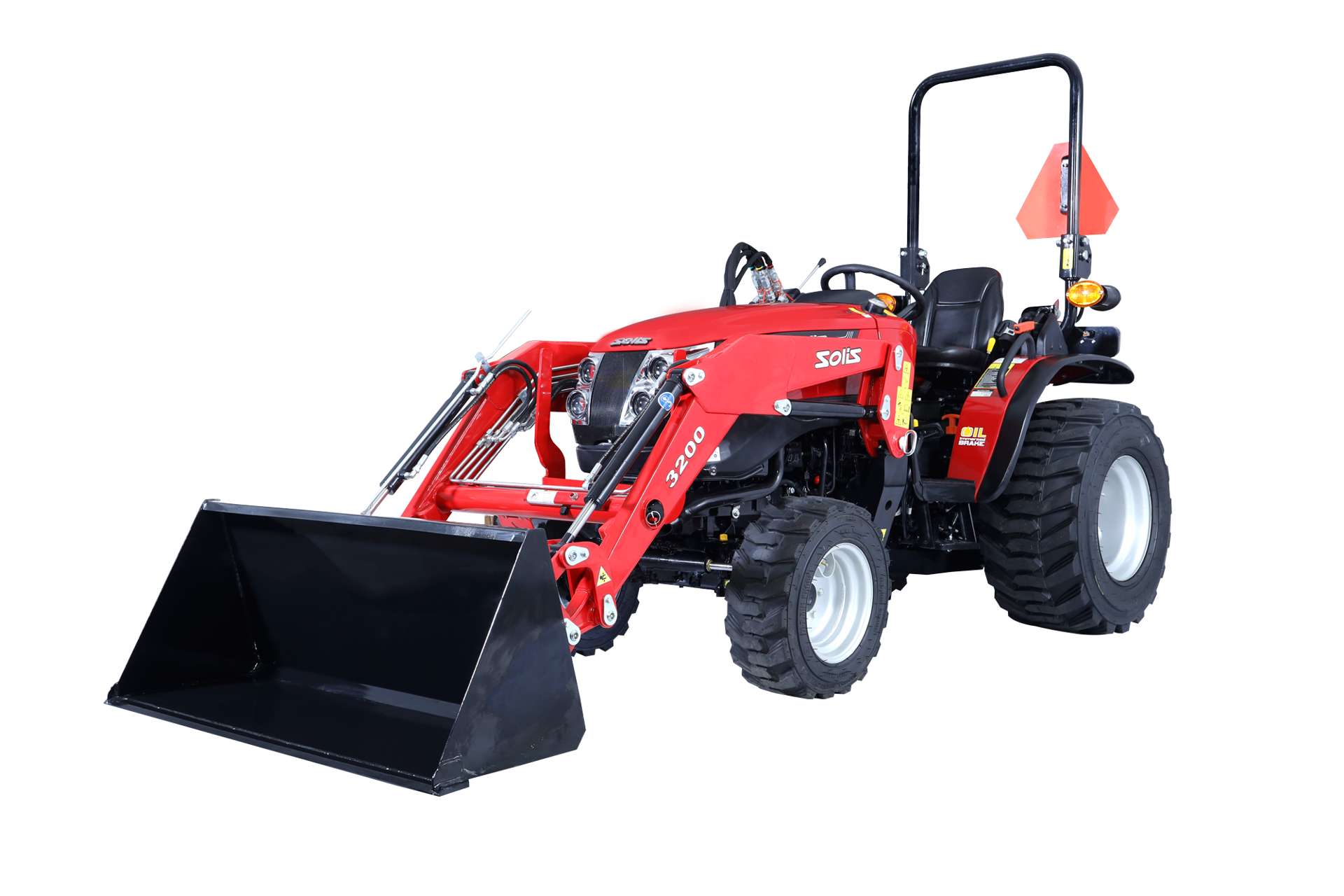

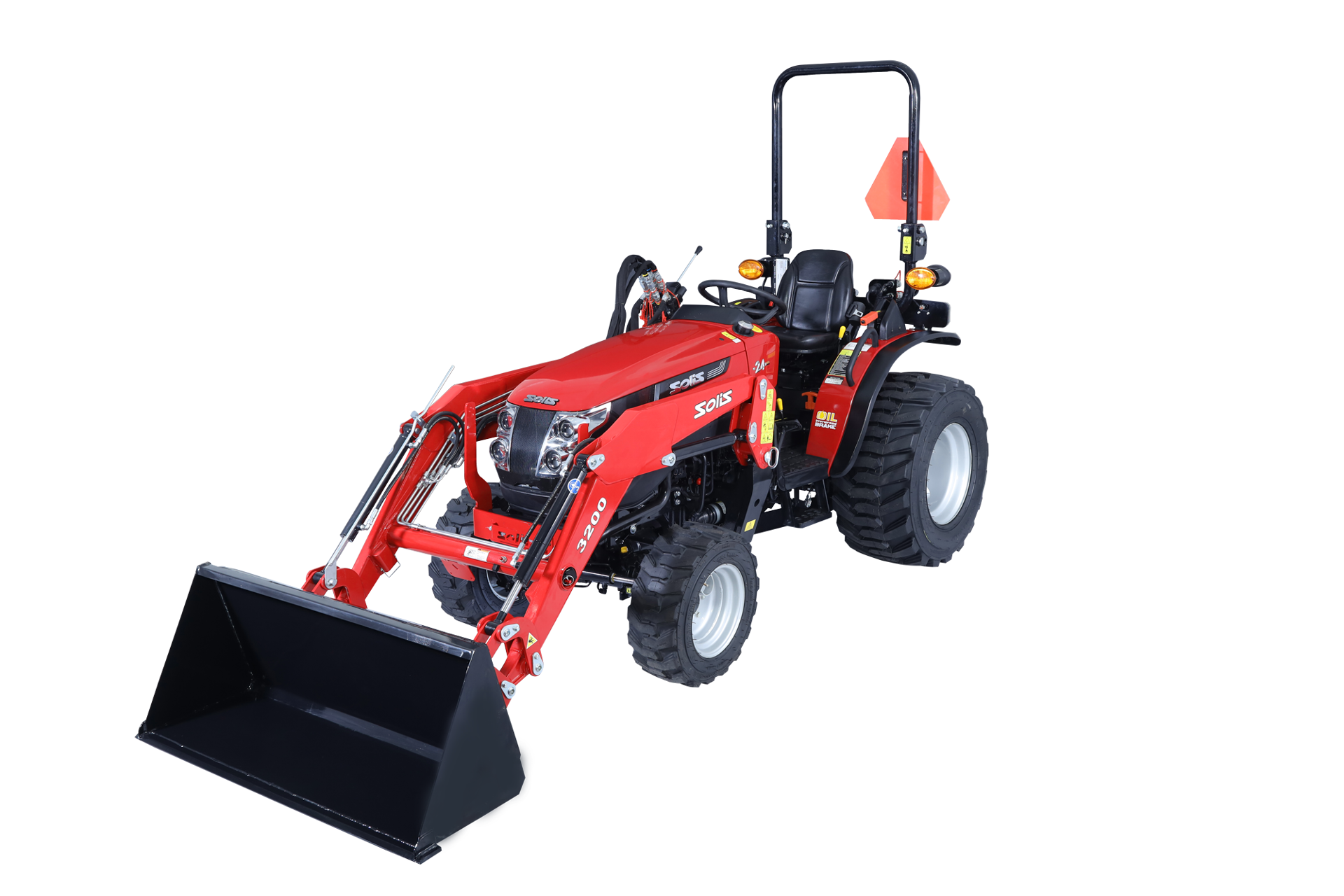

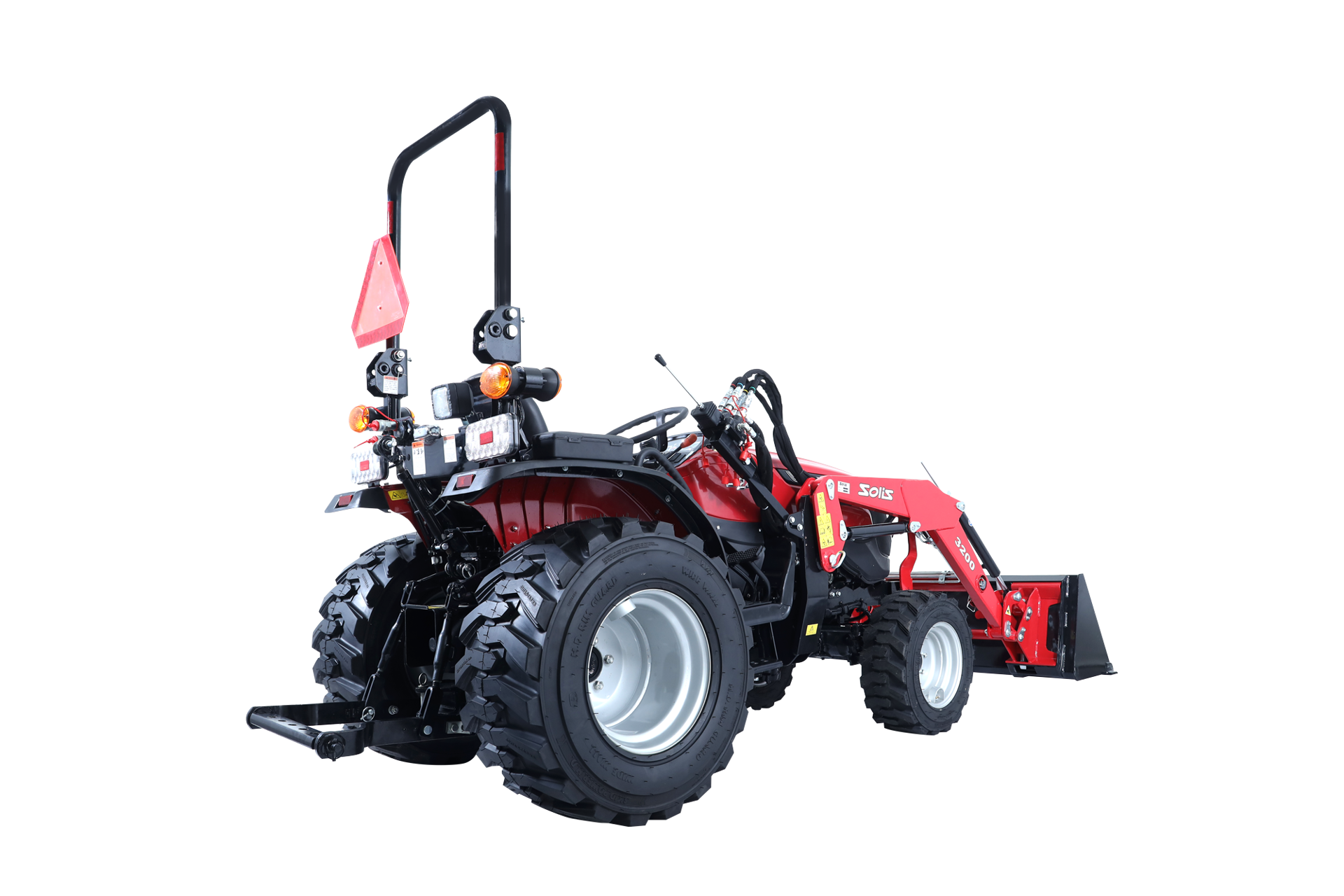

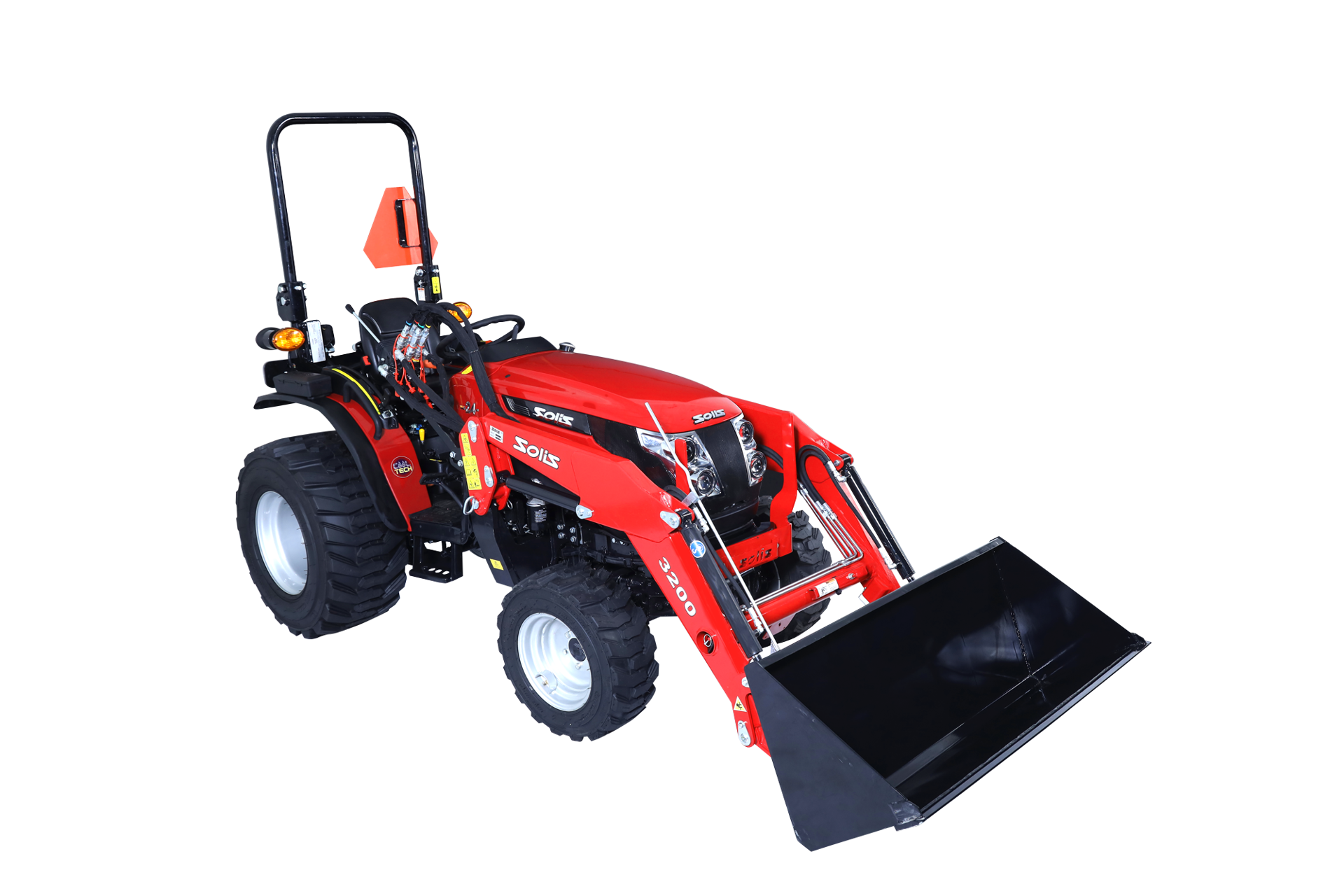

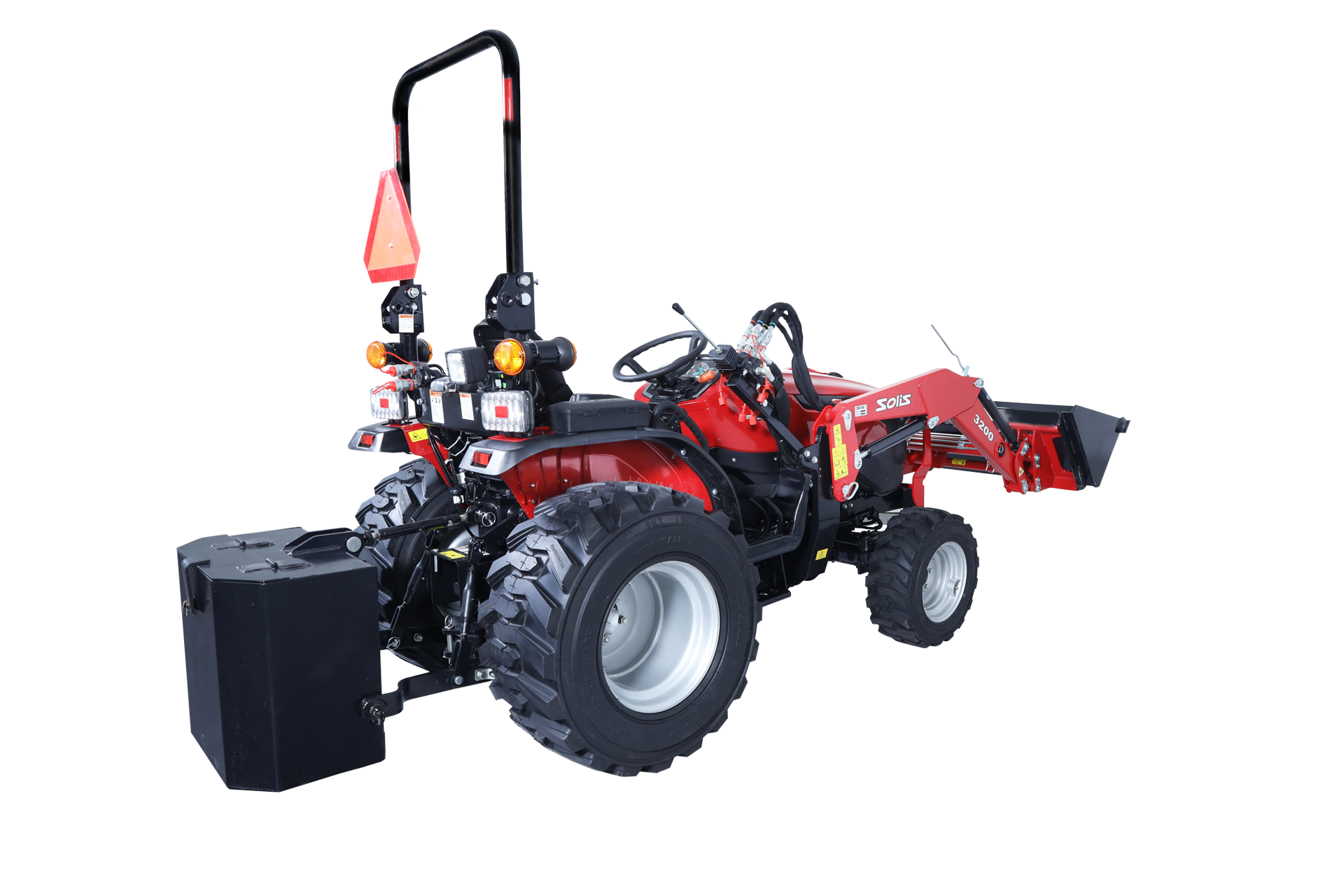

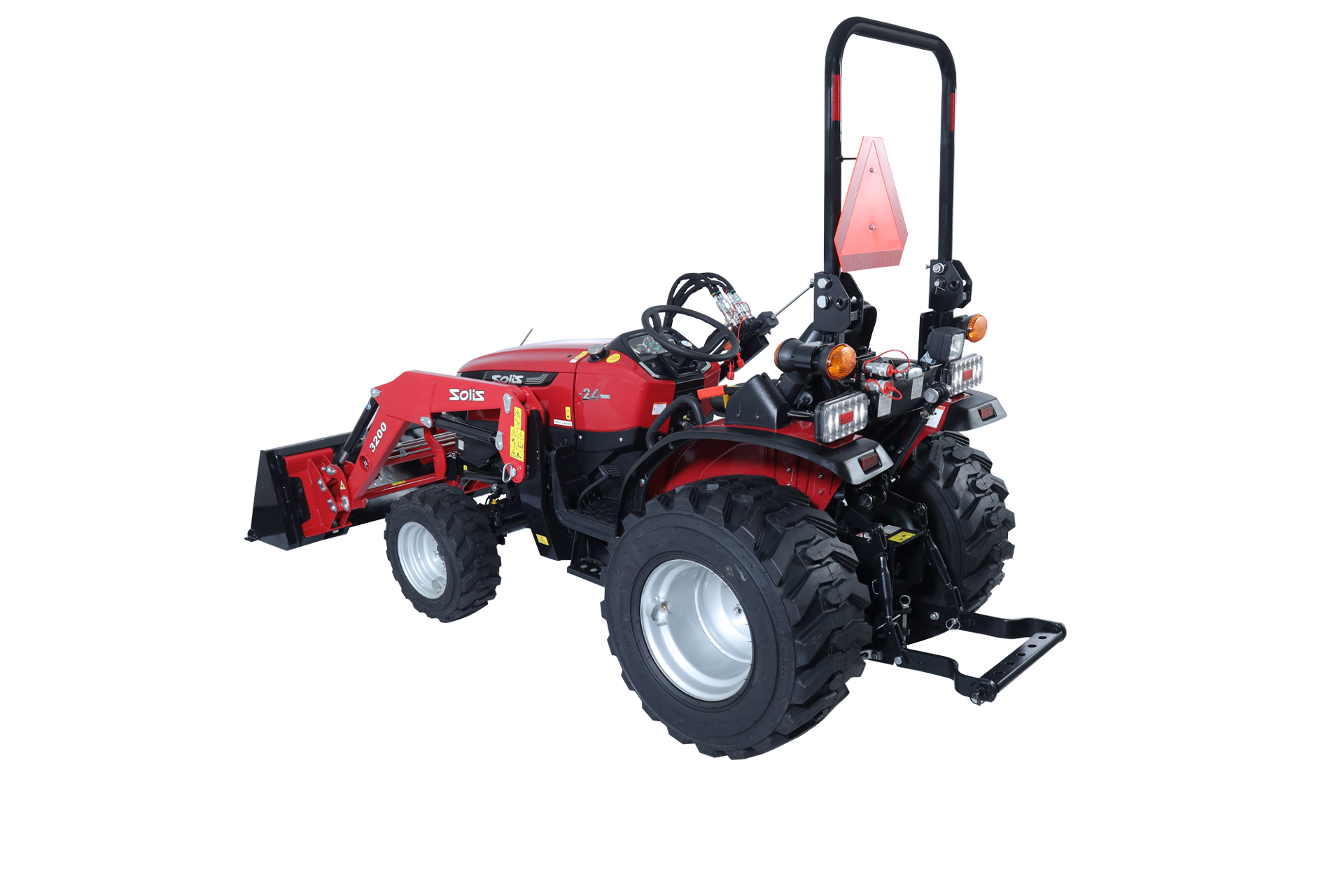

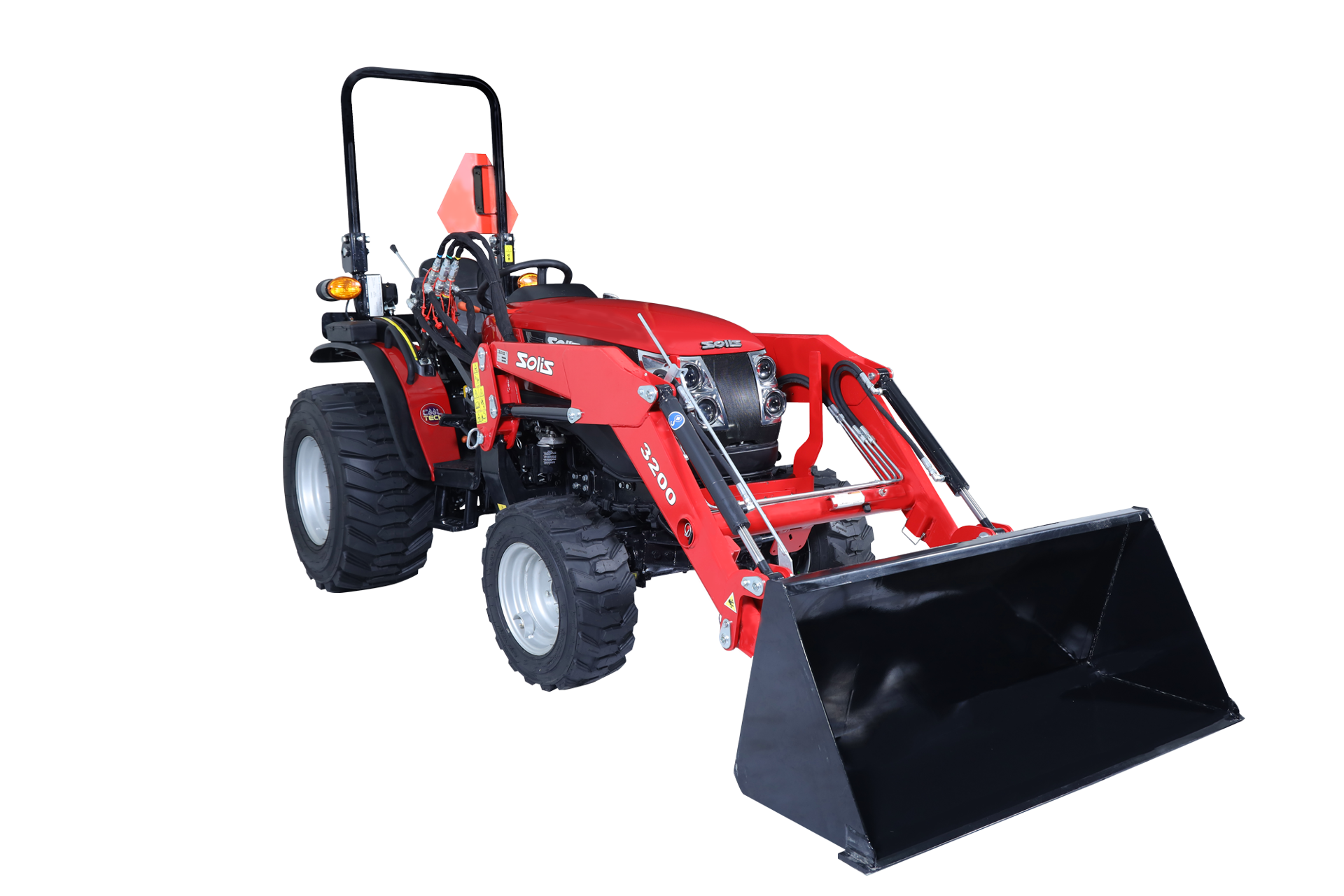

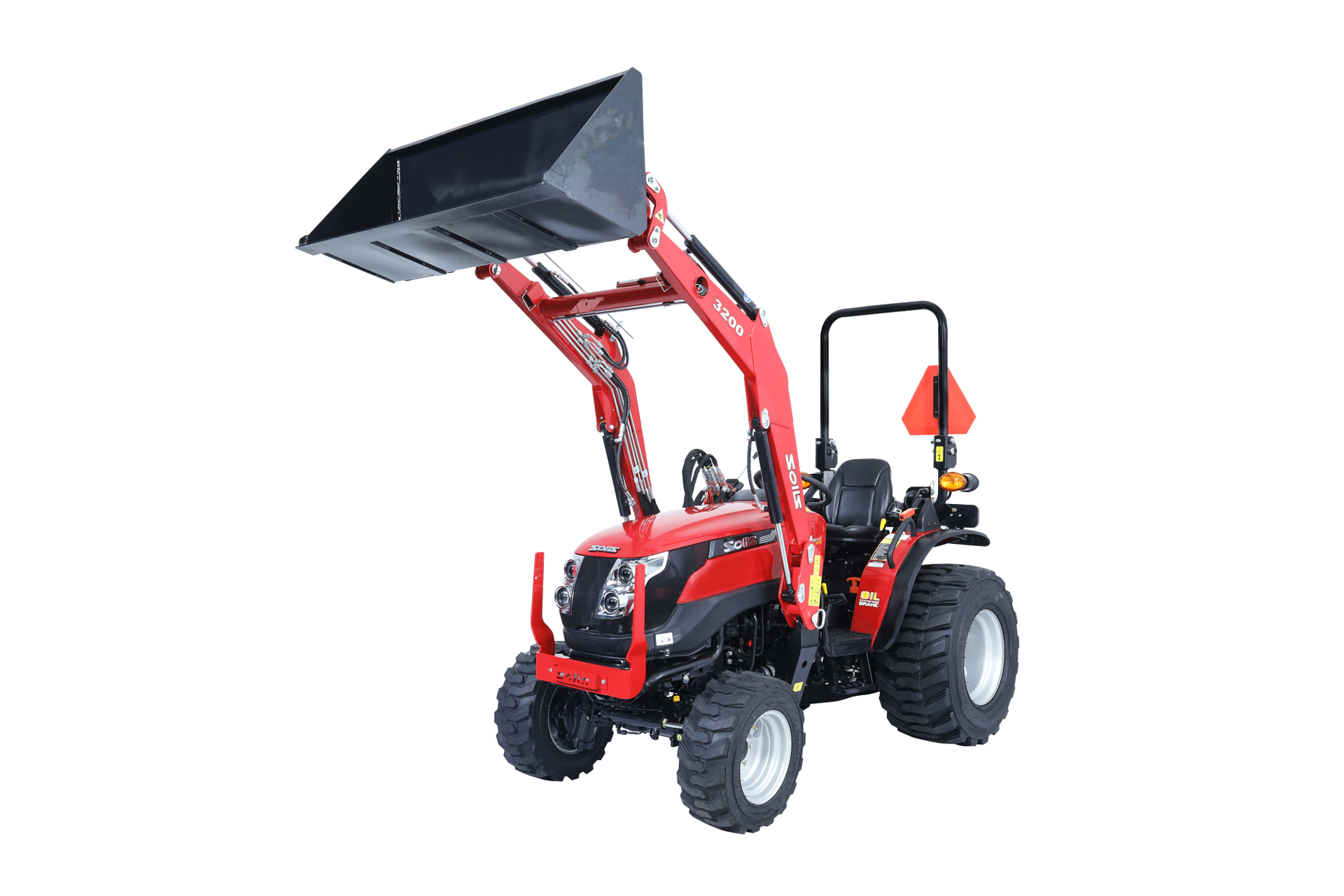

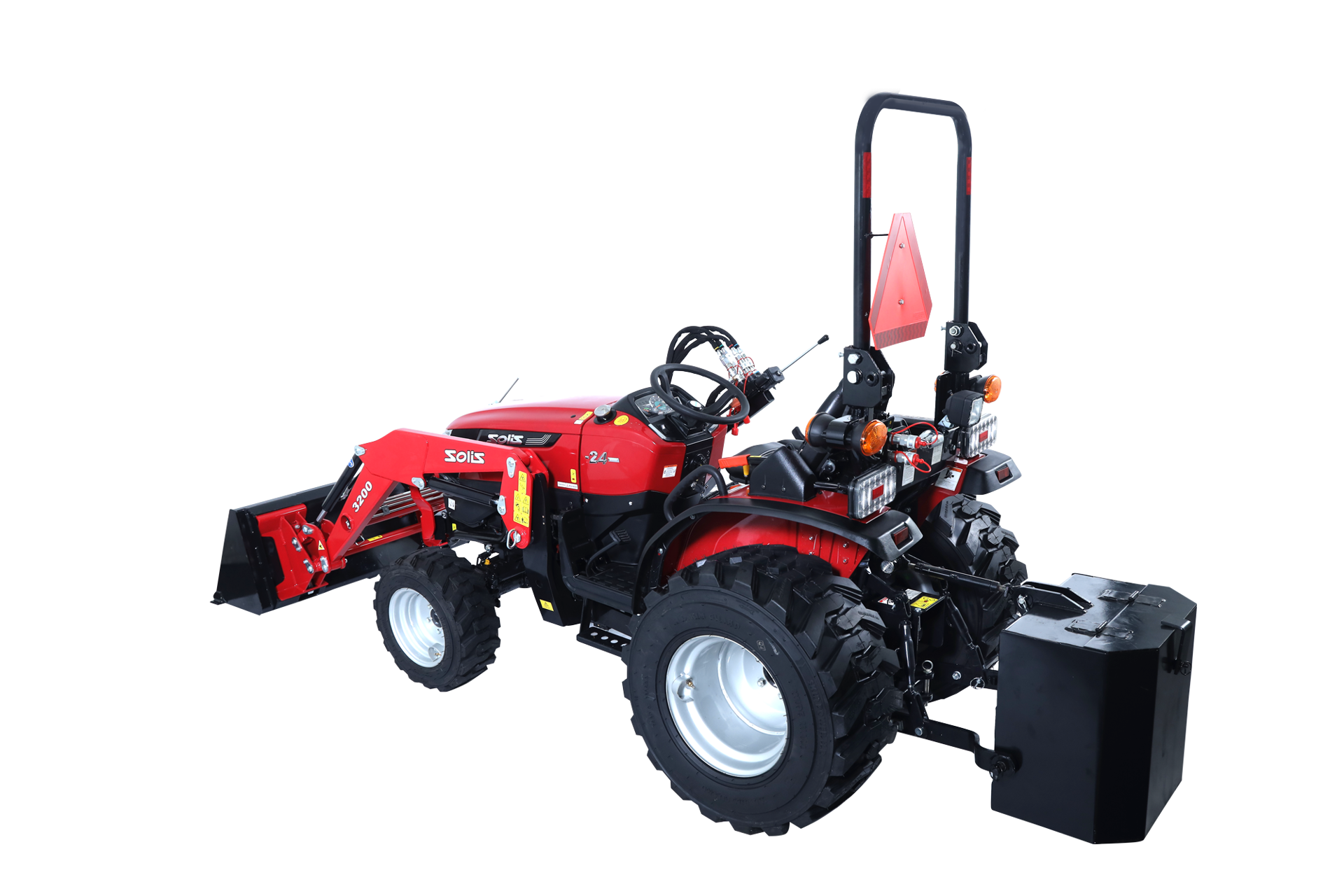

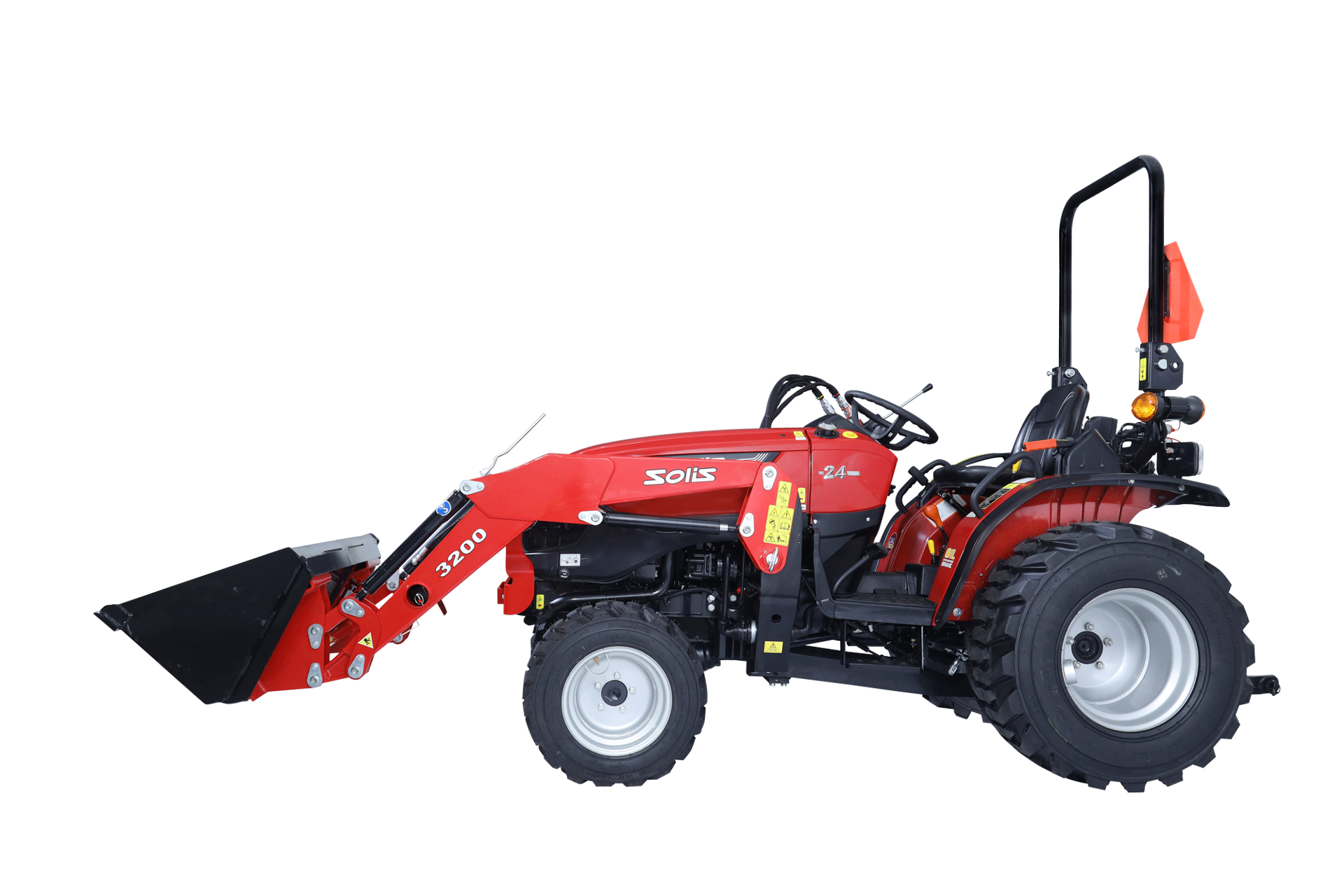

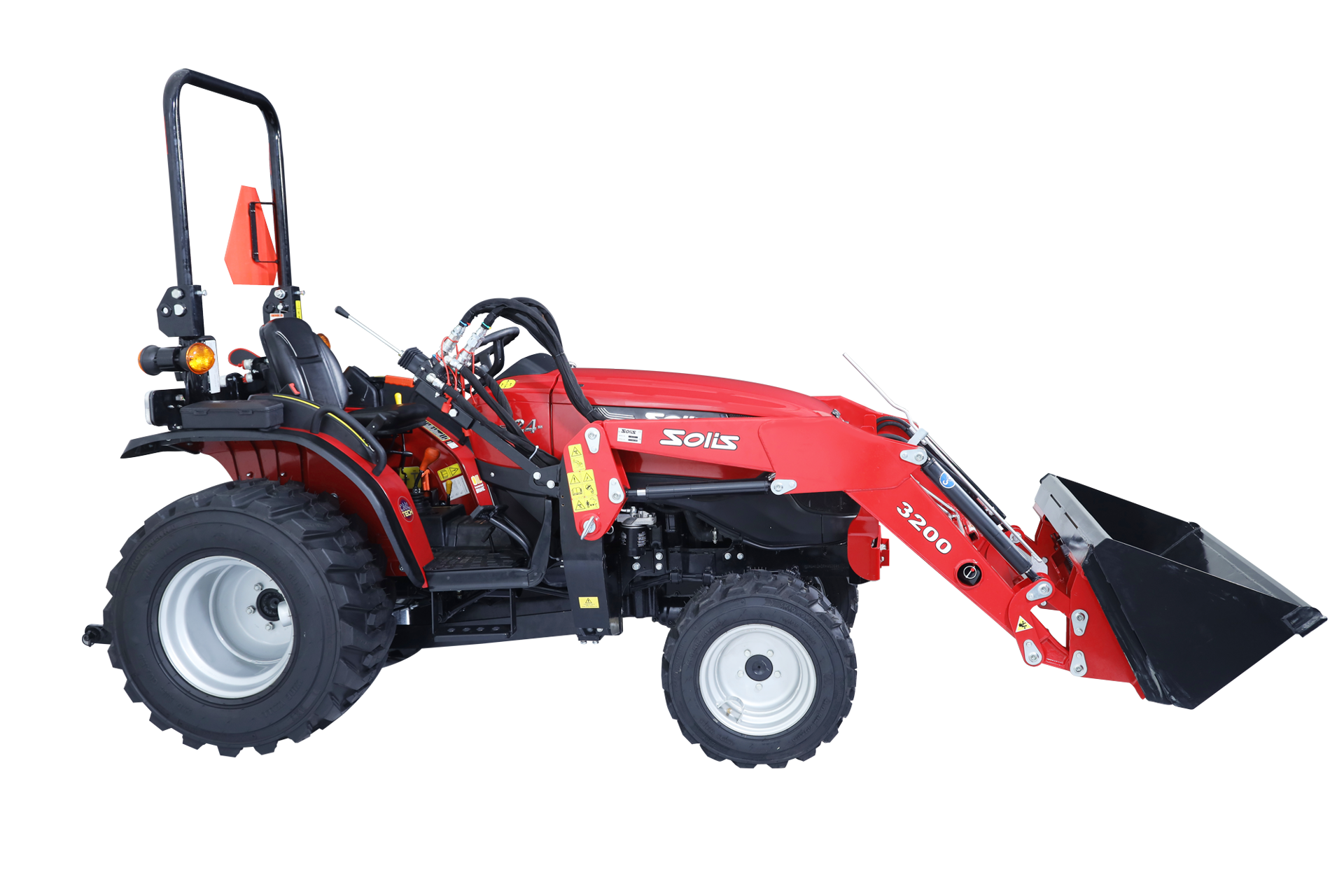

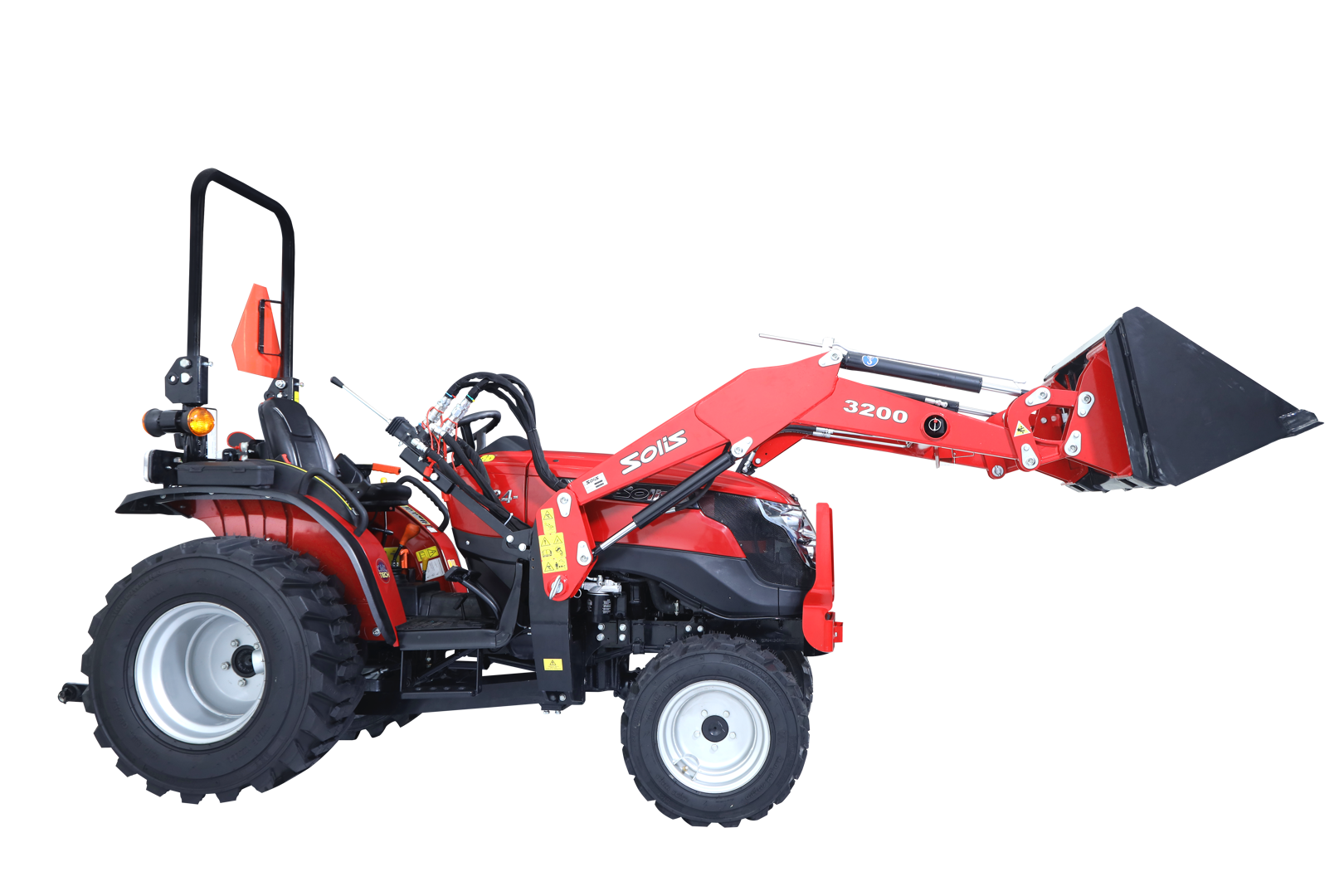

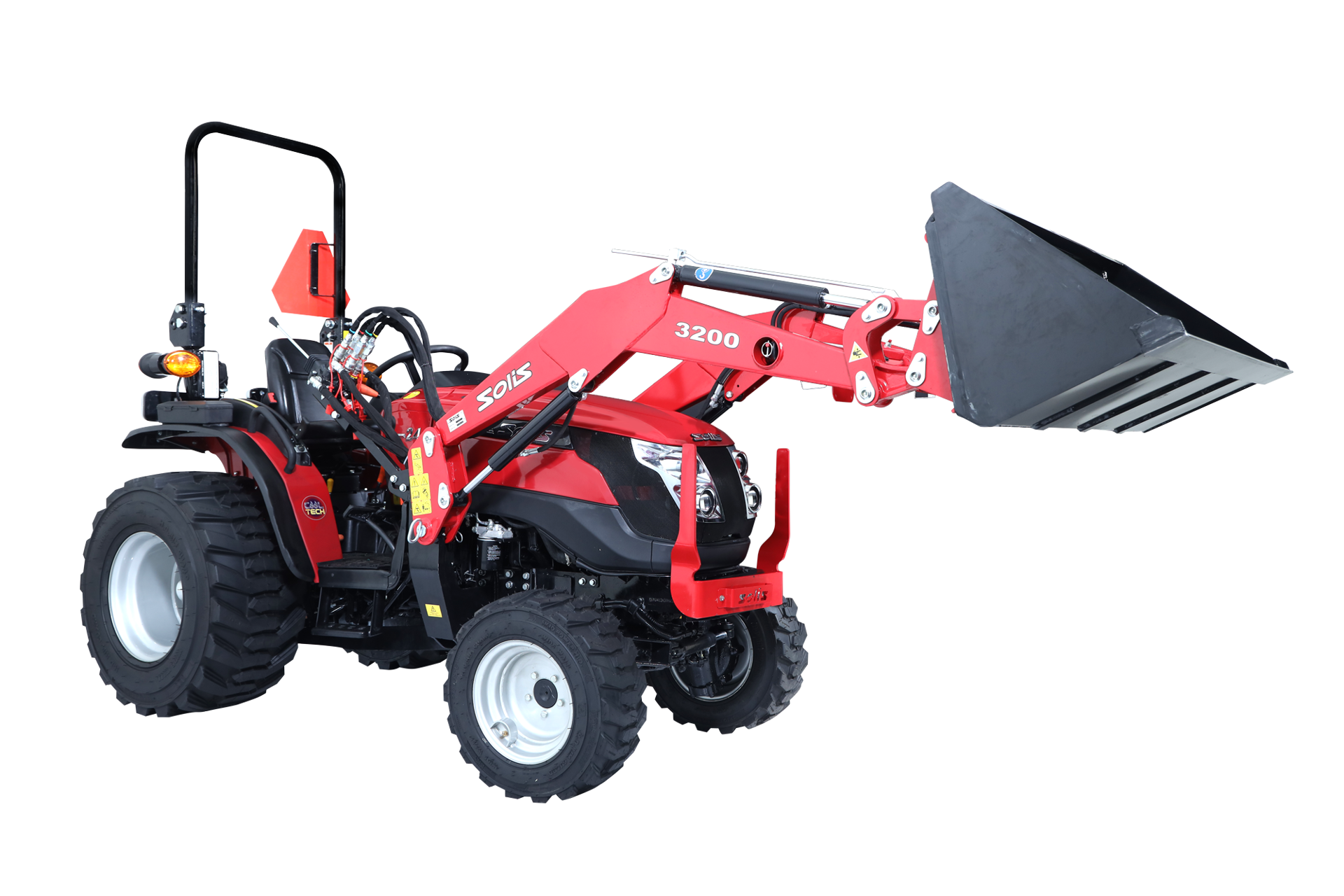

S24 Specs
Standard Features:
· Standard Hydraulic Rear Remotes
· Standard Rear Swing Draw Bar
· Standard Grab Rails
· Heavy Duty Front Loader
· Standard Floor Mat
· Standard Toolbox
· Heavy Duty Front Axle

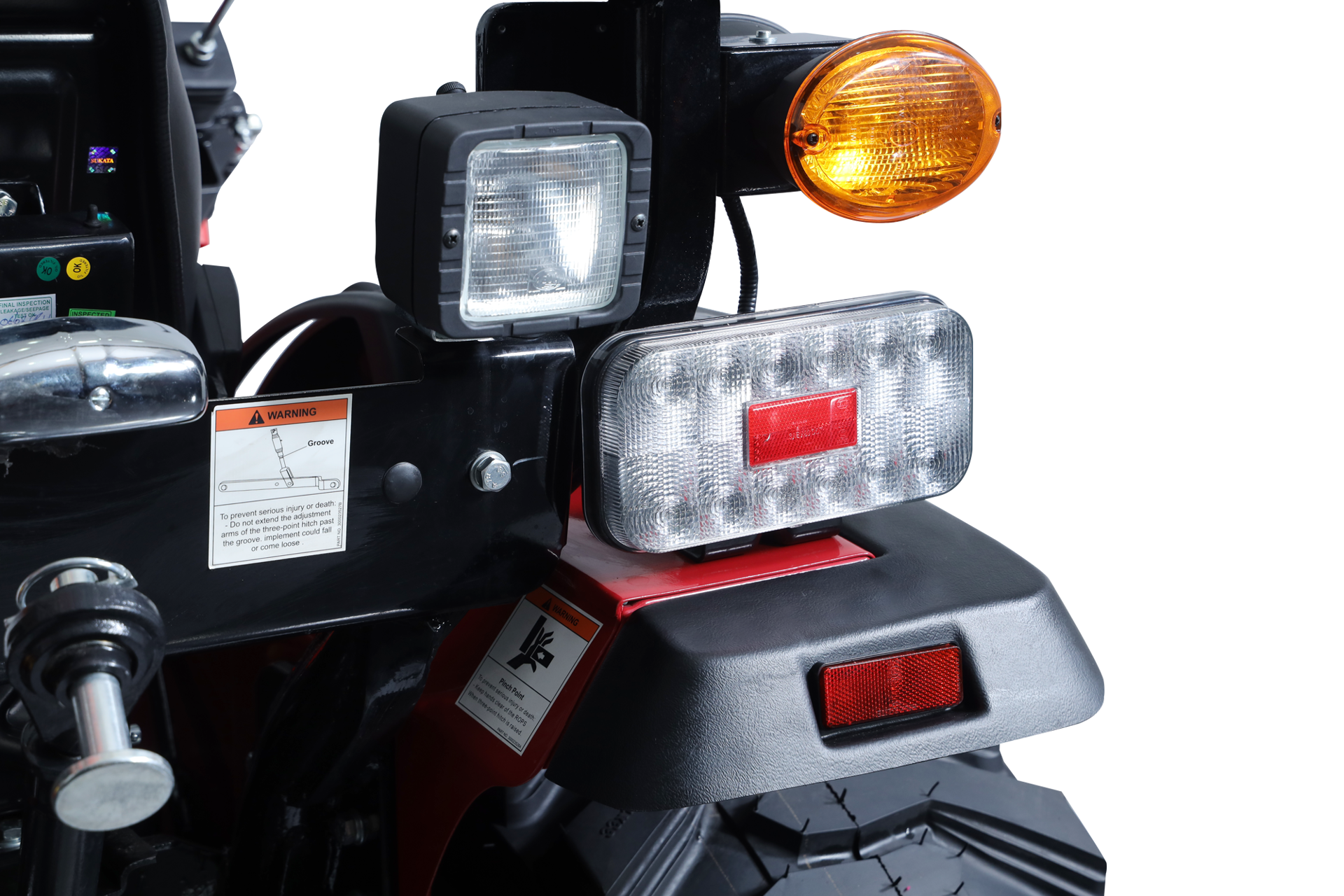

· Standard Projector Headlamps

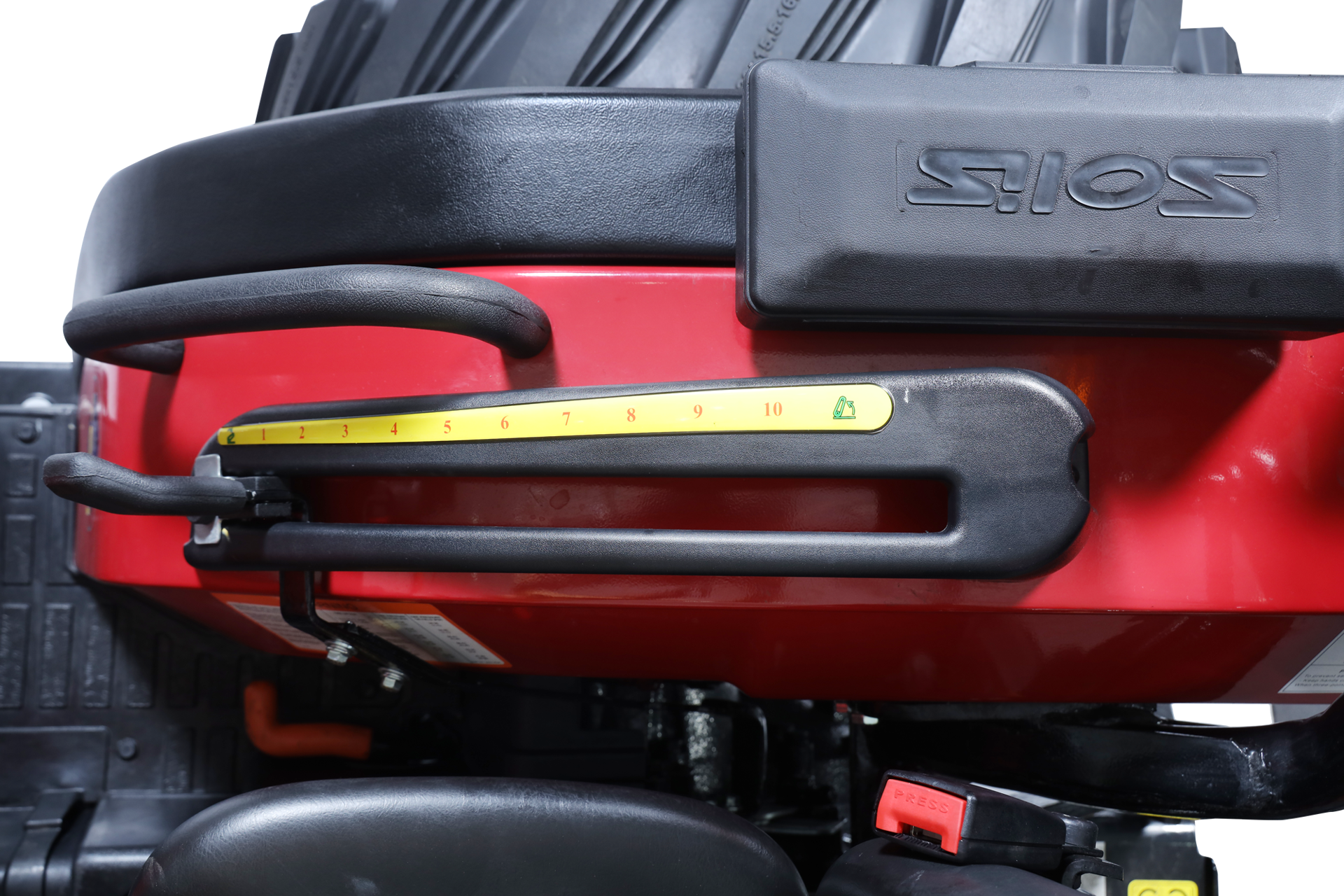

· Leader Leveler
· Standard Front Tow Hook

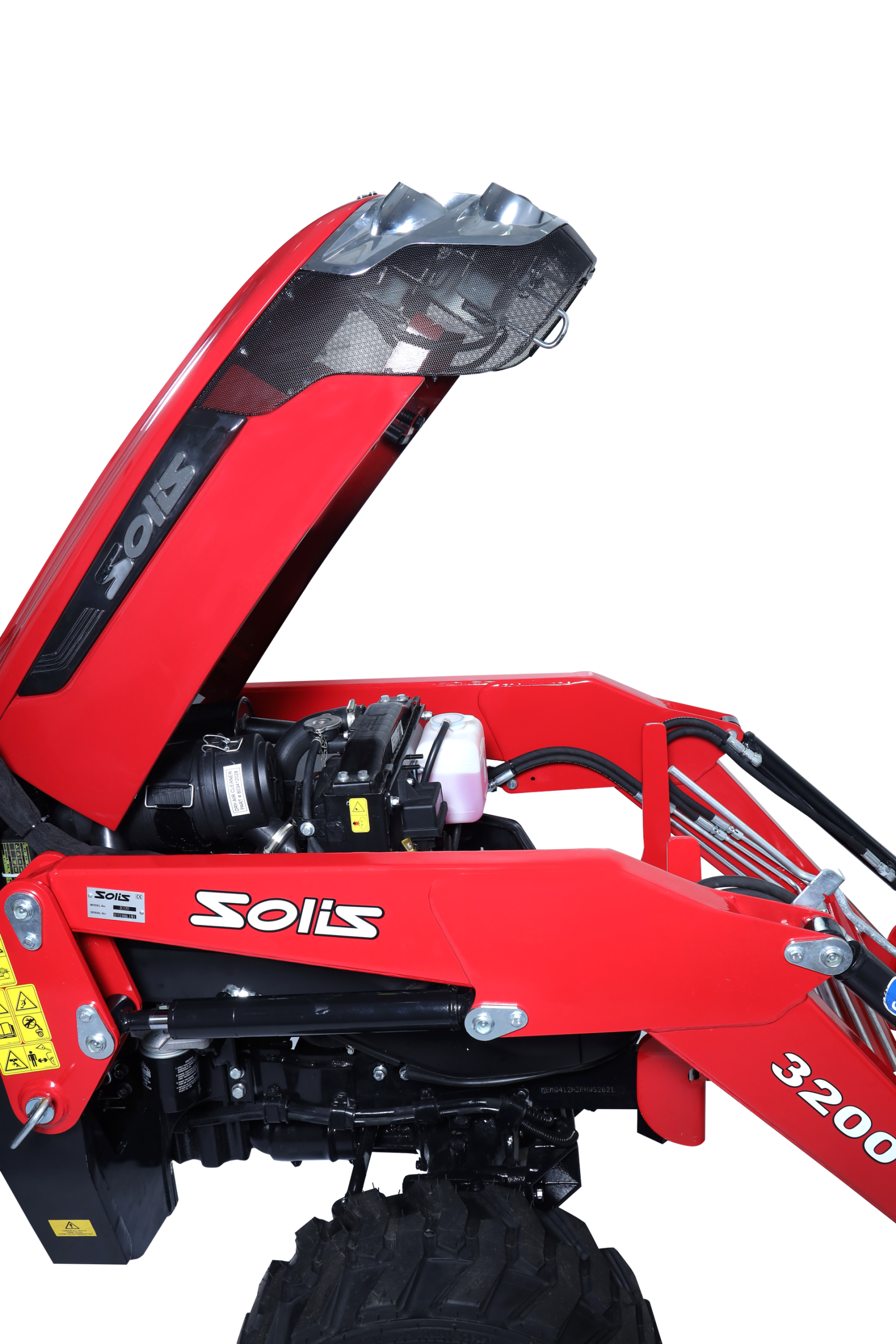

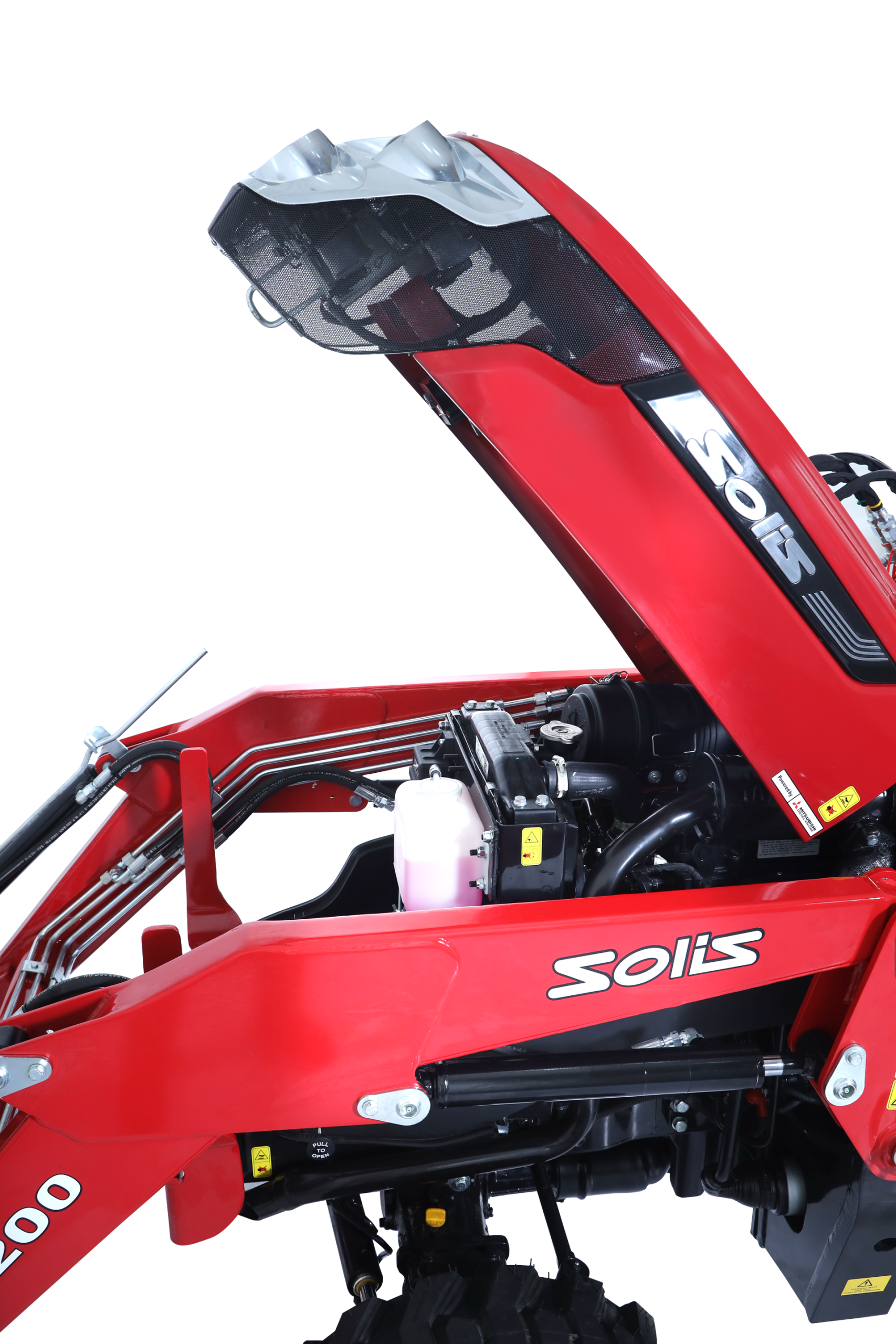

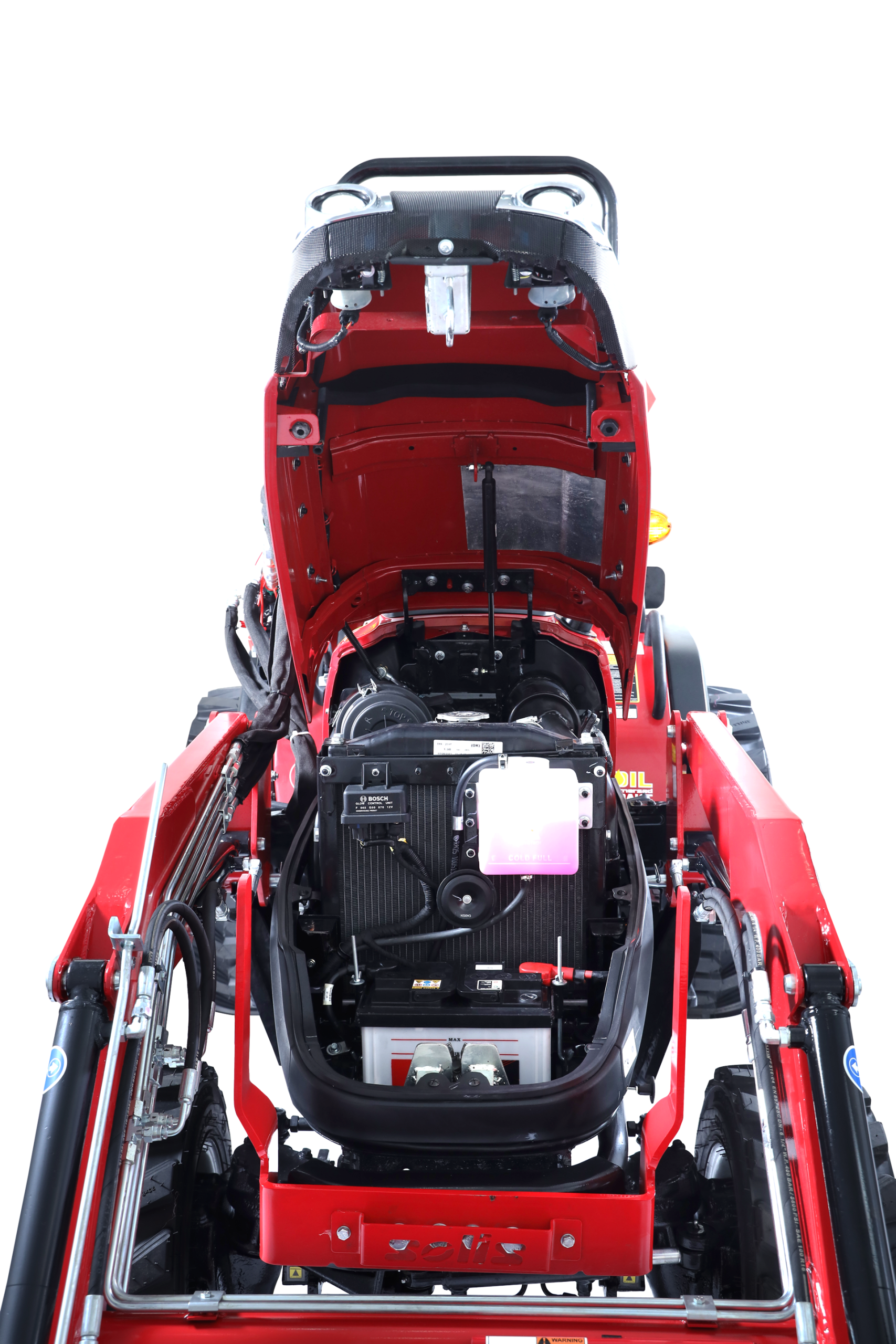

Engine:
· Engine Model : Mitsubishi S3L2
· HP Category: 24
· No. Of Cylinder :3
· Aspiration : Natural
· Cubic Capacity (Ci) 80.42
· Rated RPM 2500
· Torque 76.2 Nm @2000
Transmission :
· Drive: 4WD
· Clutch: Single
· Gearbox 6F+2R
Brakes:
· Type: Oil Immersed Brakes
· Type of Actuation: Mechanical, Foot Operated
· Differential Lock: Standard
PTO:
· PTO (RPM) : 540 @ 2491
· PTO Actuation : Mechanical
· Steering: Power Steering
Hydraulics:

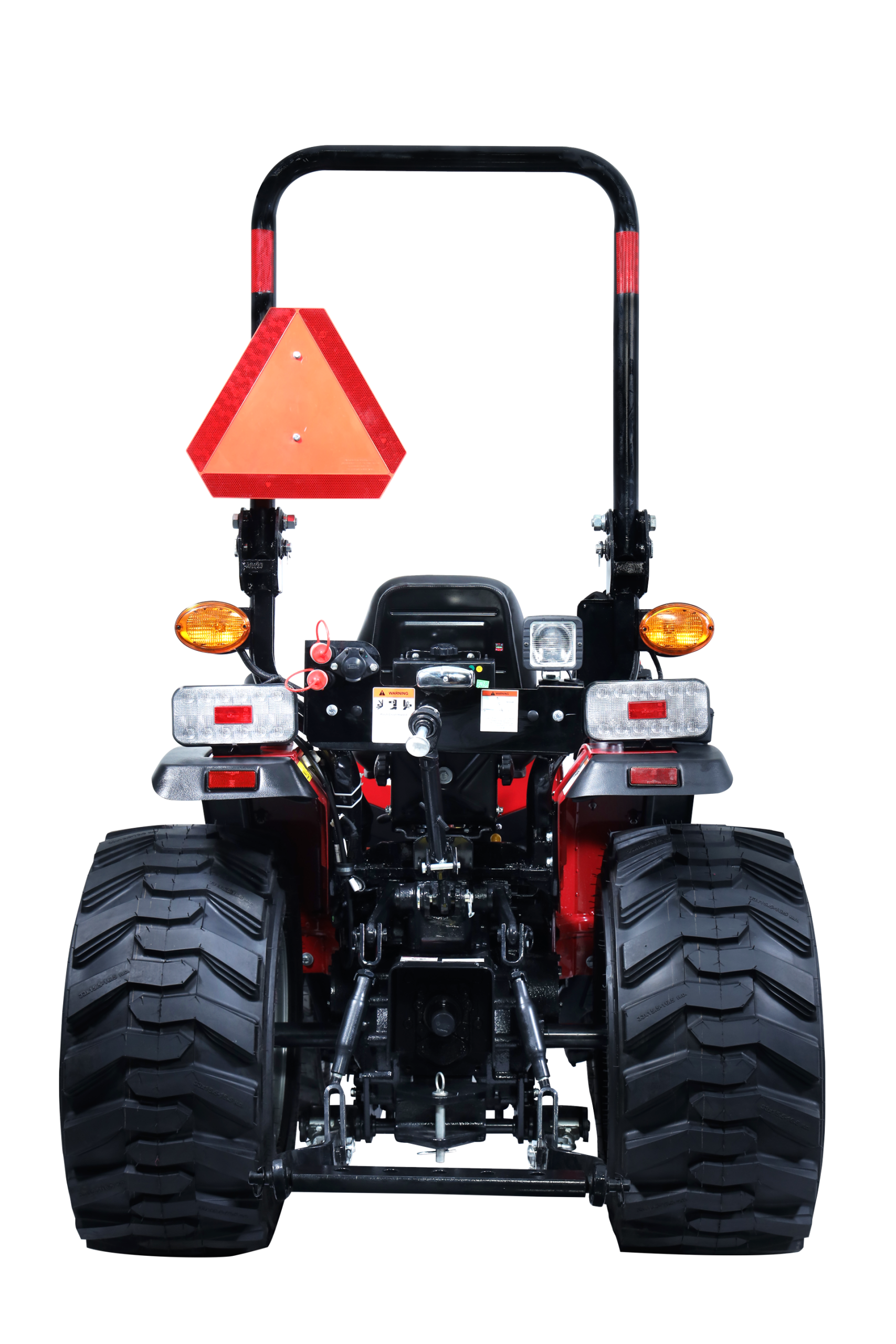

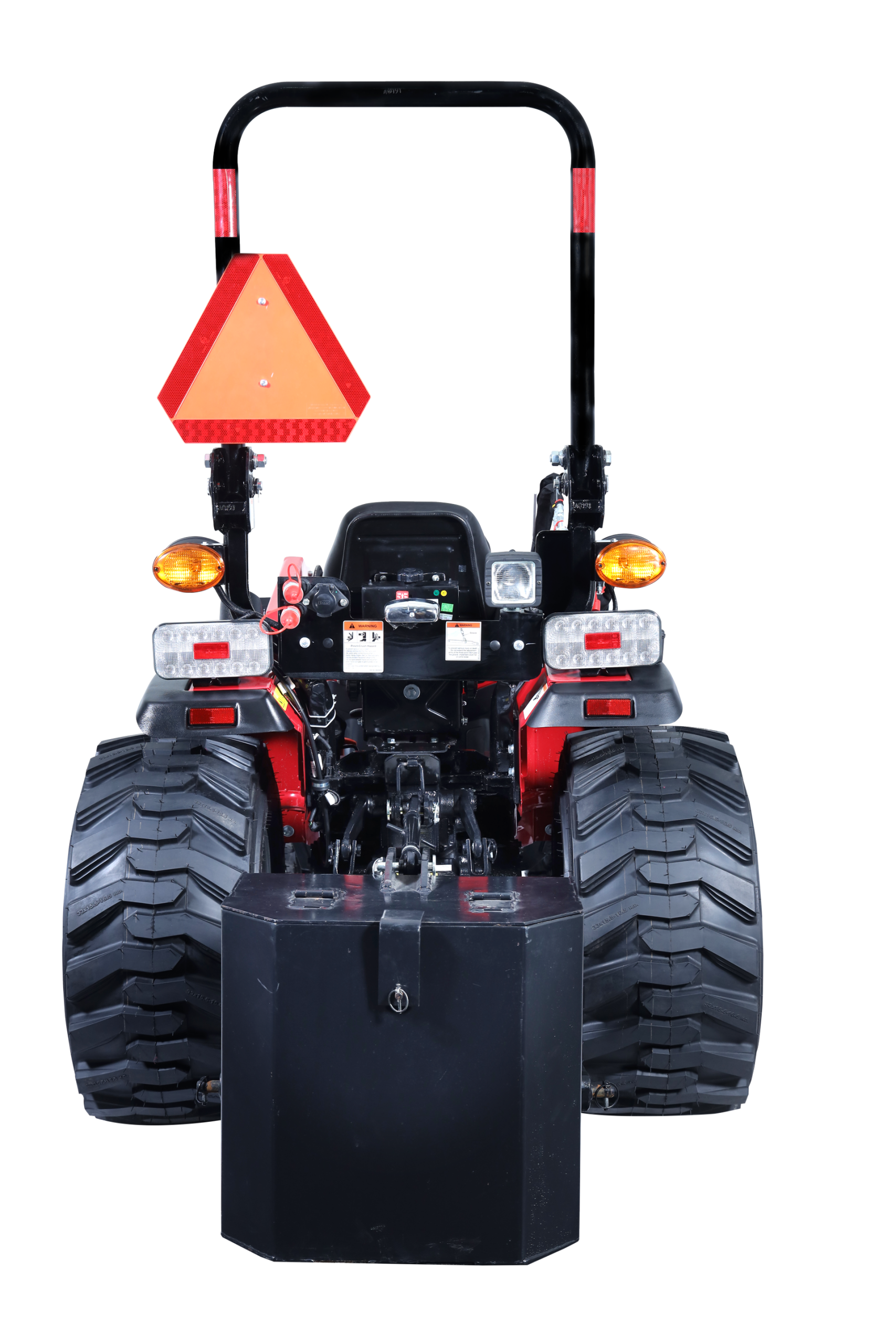

· 3 Point Linkages : CAT -1N
· 3 Point Lifting Capacity @ Ball ends (lbs) : 1323

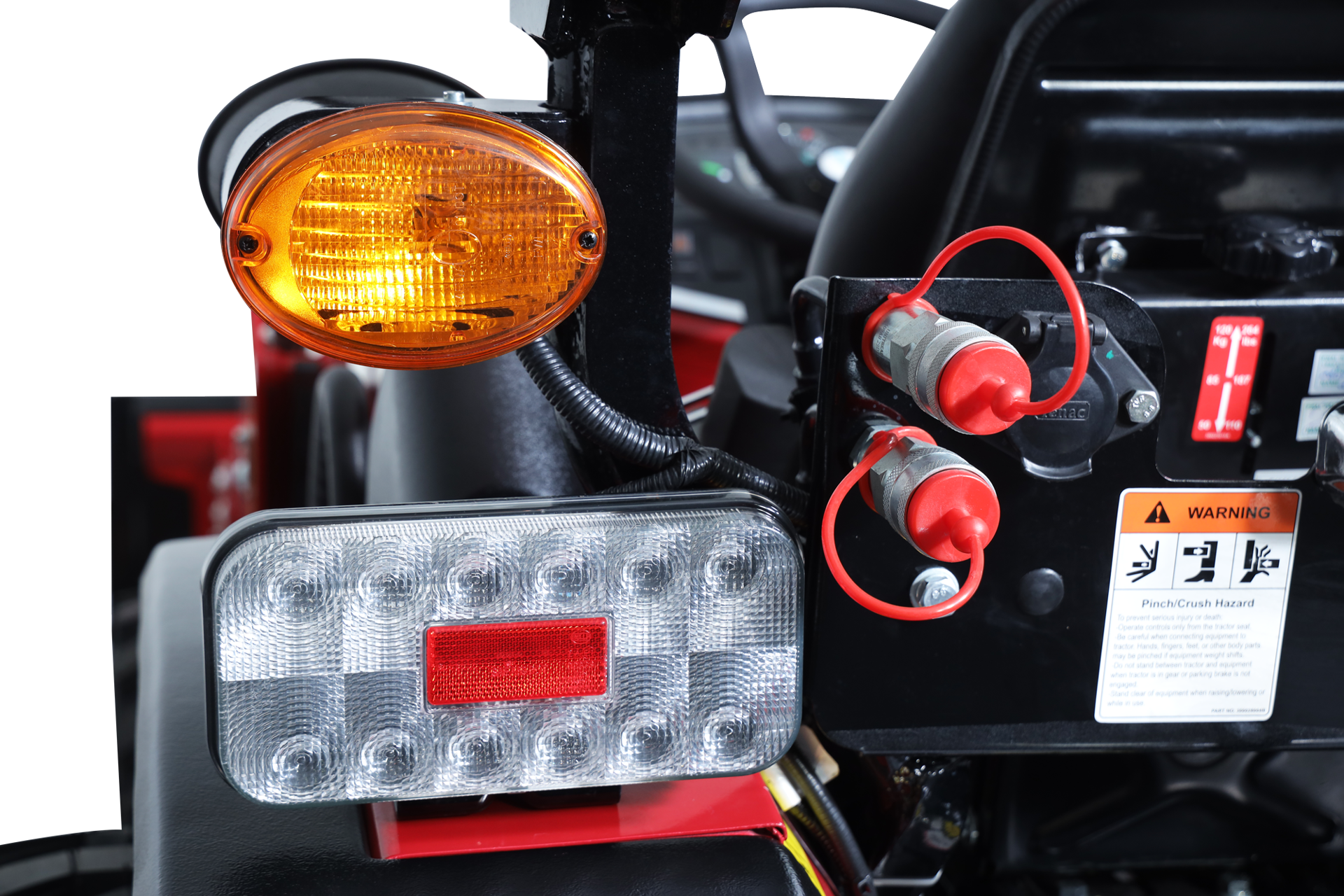

· Aux Hydraulic Circuit: 1DA
· Total hydraulic Flow (GPM) : 3.27 GPM
Capacity:
· Fuel Tank (Gal) : 7
Dimensions & Weight (Argi Tires:
· Weight (lbs) : 2292
· Wheelbase (in) : 61.4
· Total Length (in) : 108.66
· Total Width (in) : 42.32
· Height (in) up to ROPS: 84.34
· Ground Clearance: 9.44 (Front Axle)
Tires:
· Industrial: 23×8.50-12 & 33×15.5-16.5
· Turf : 23×8.50-12 & 33×15.5- 16.5
· Agri 1: 6×12 & 8.3×20
· Agri 2: 7×14 & 8.3×24
· Radial Agri: 6.5/80-12 & 280/70R18
· Galaxy Pro: 220/55 R12 & 280/70 R16
Features: S24

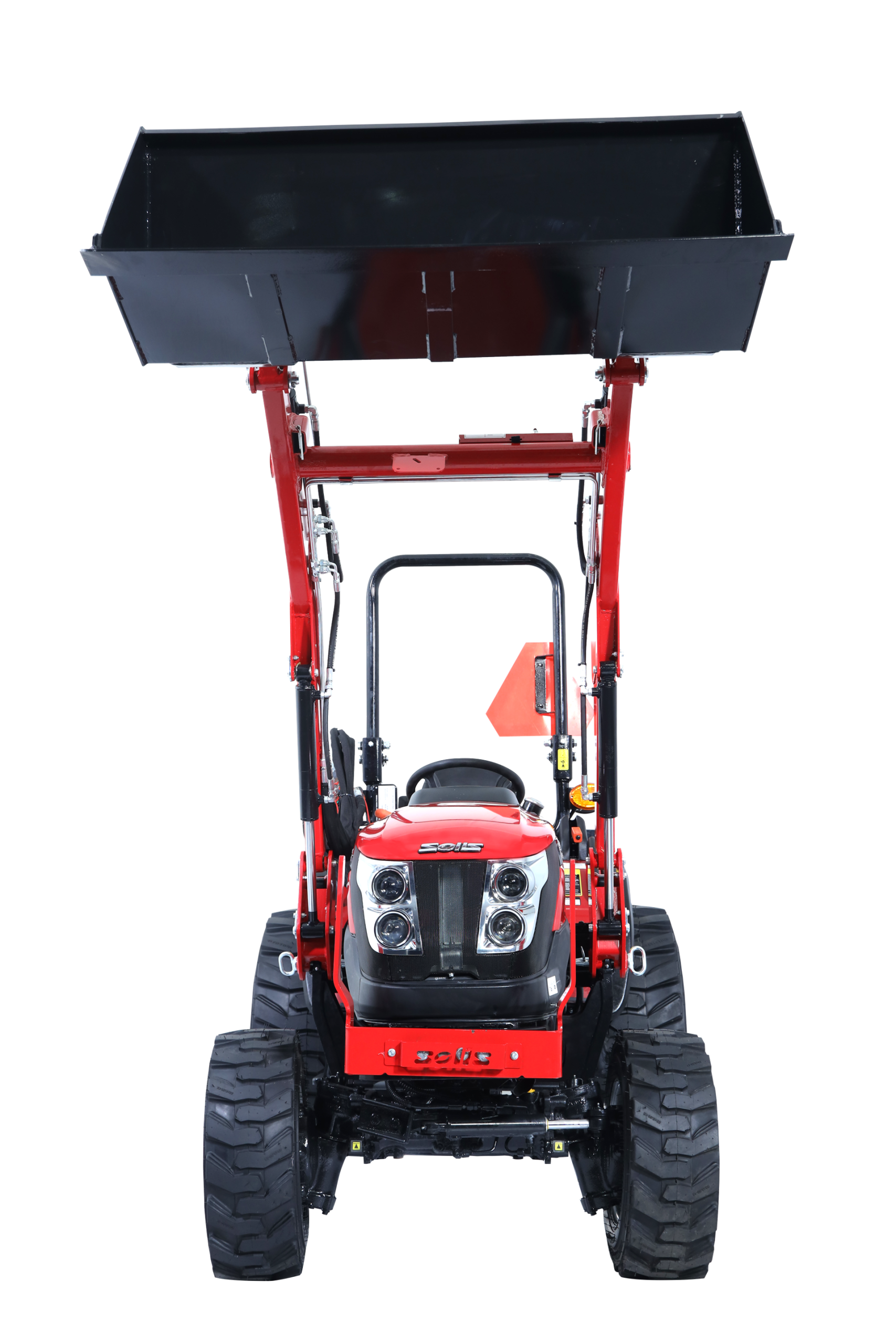

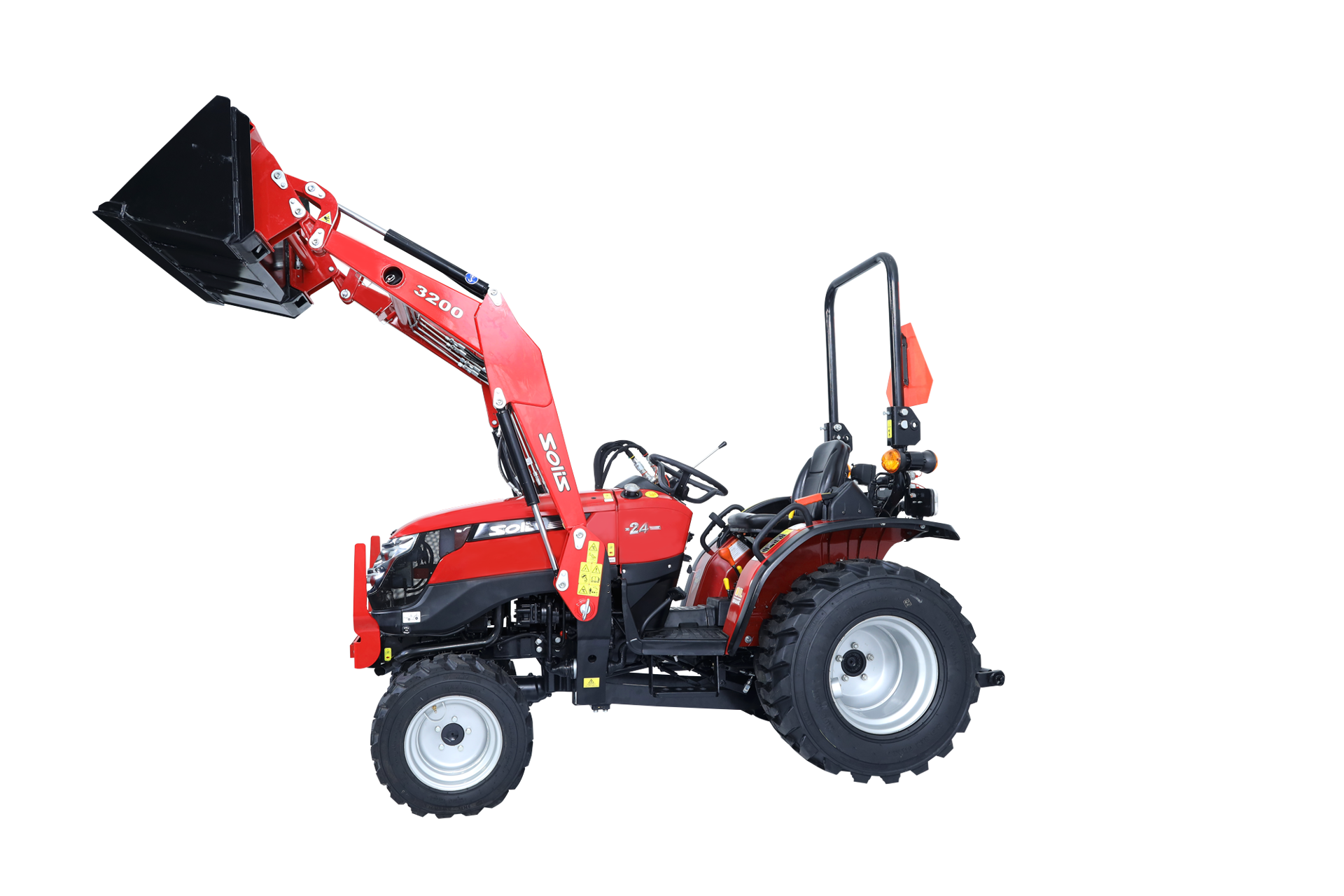

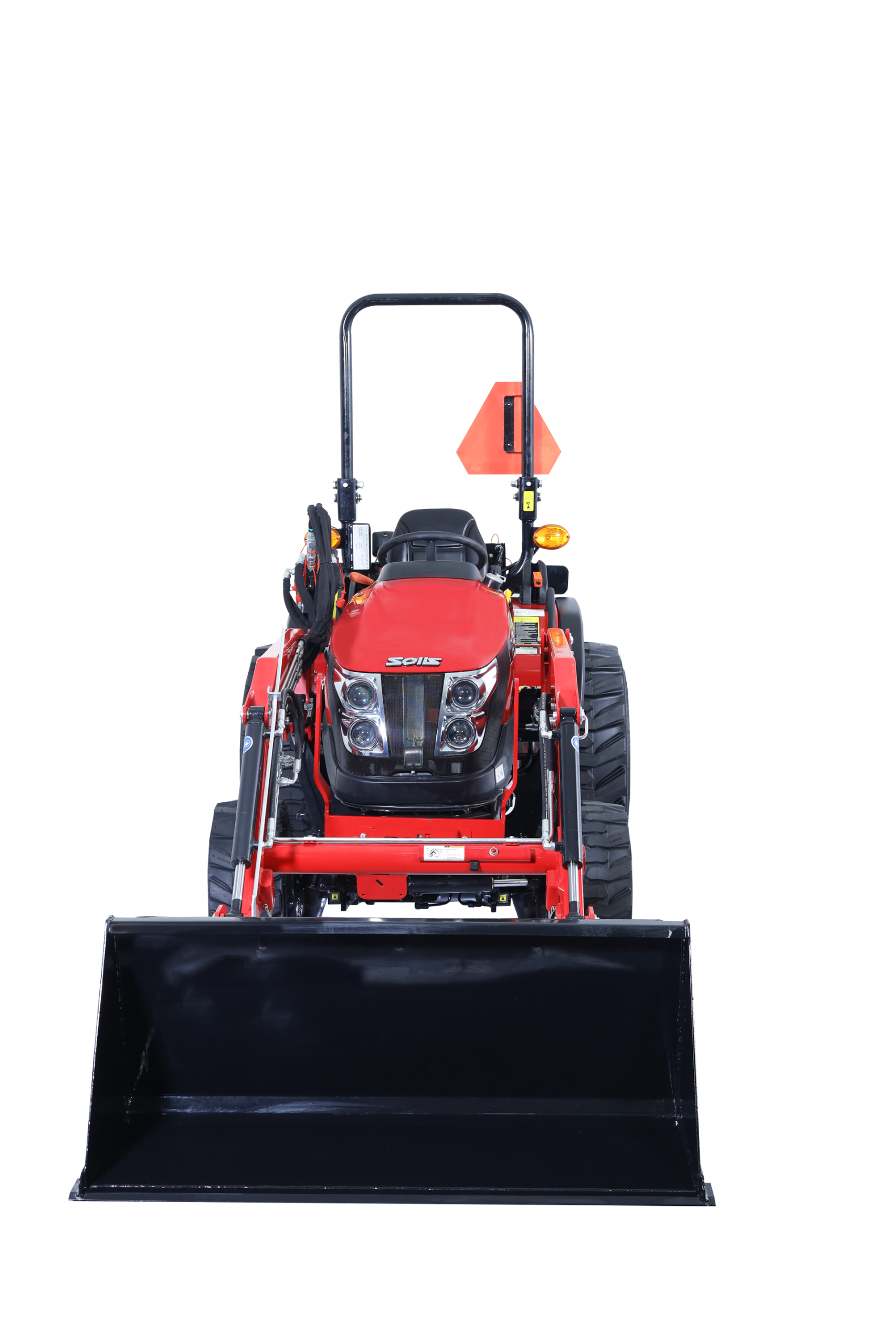

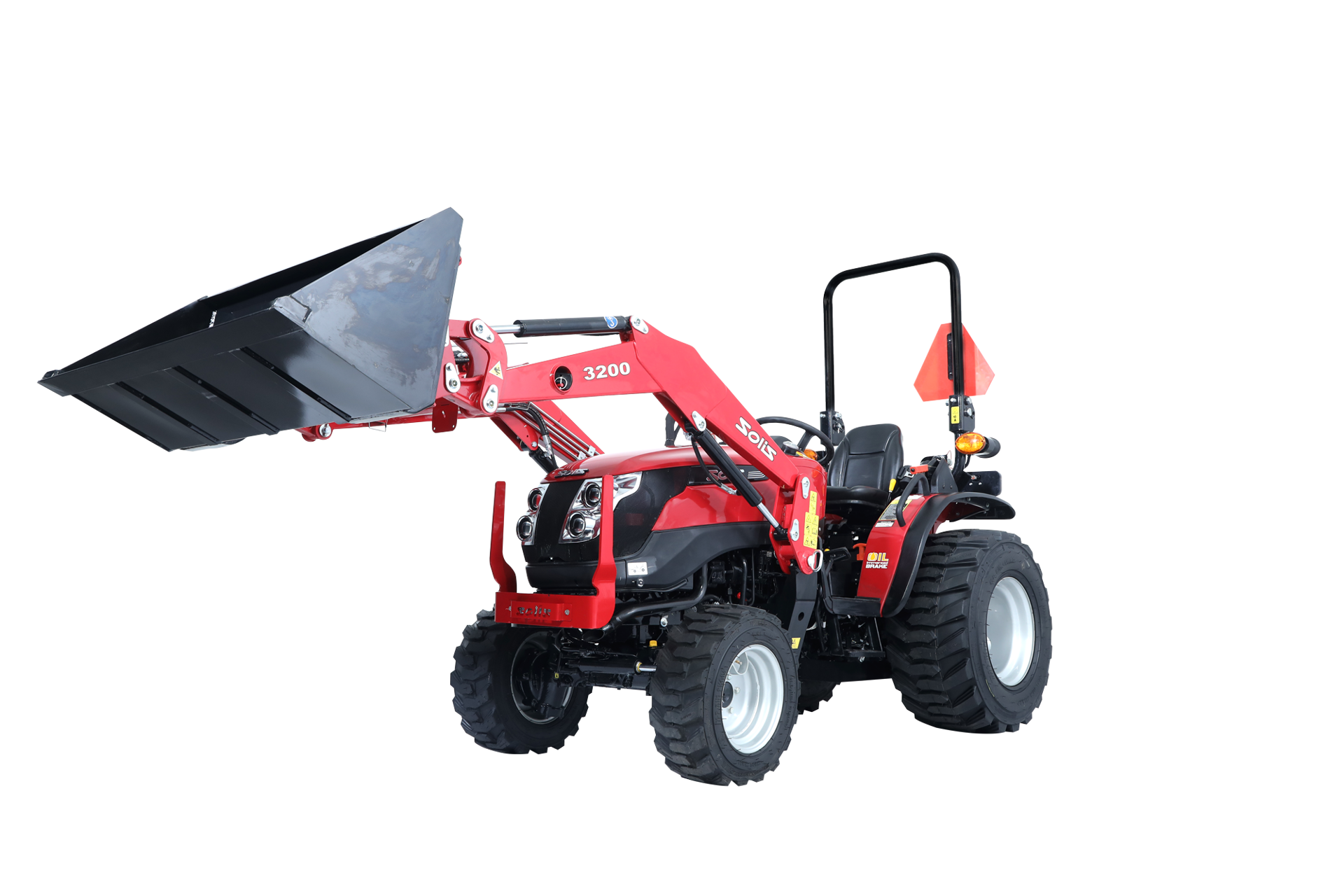

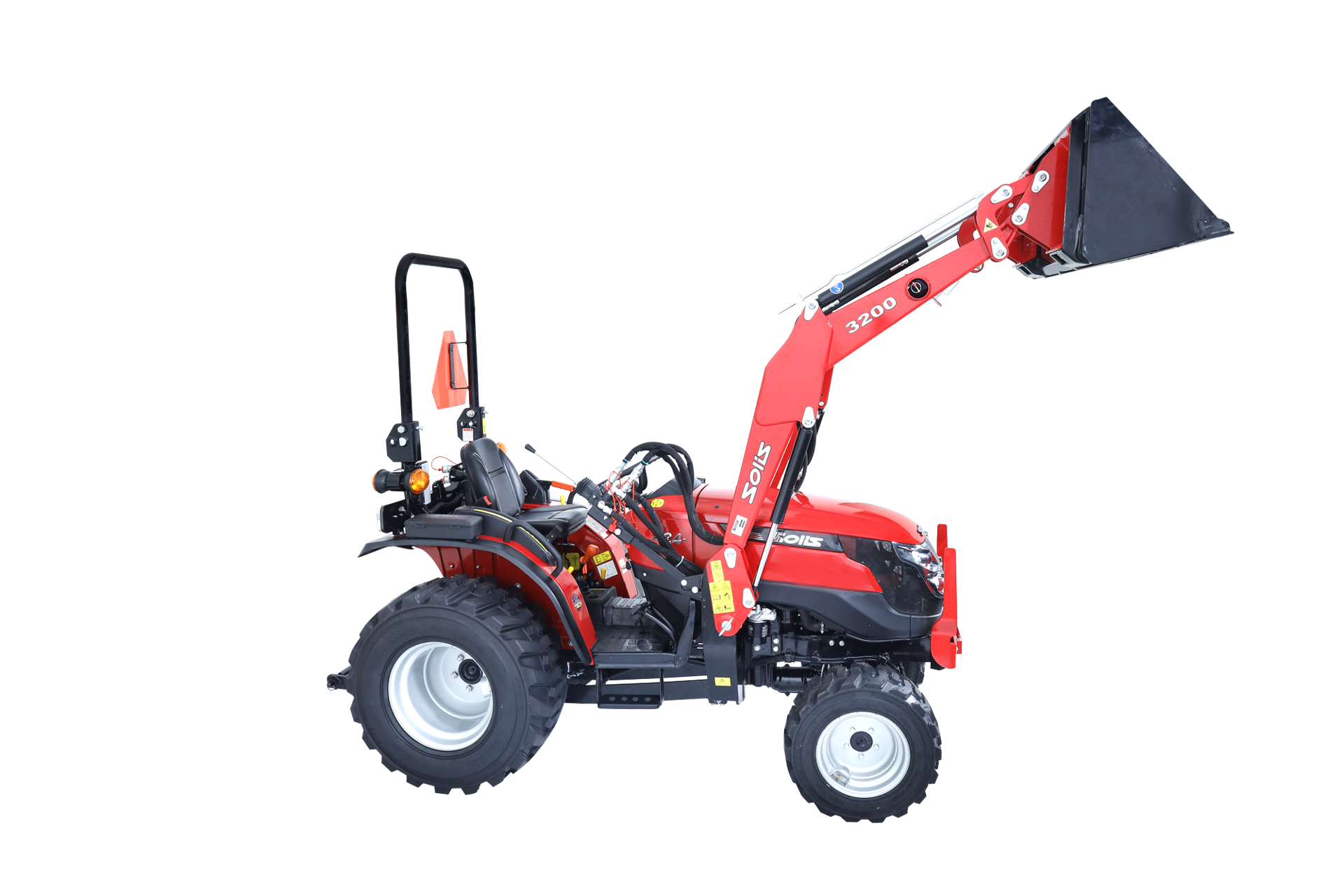

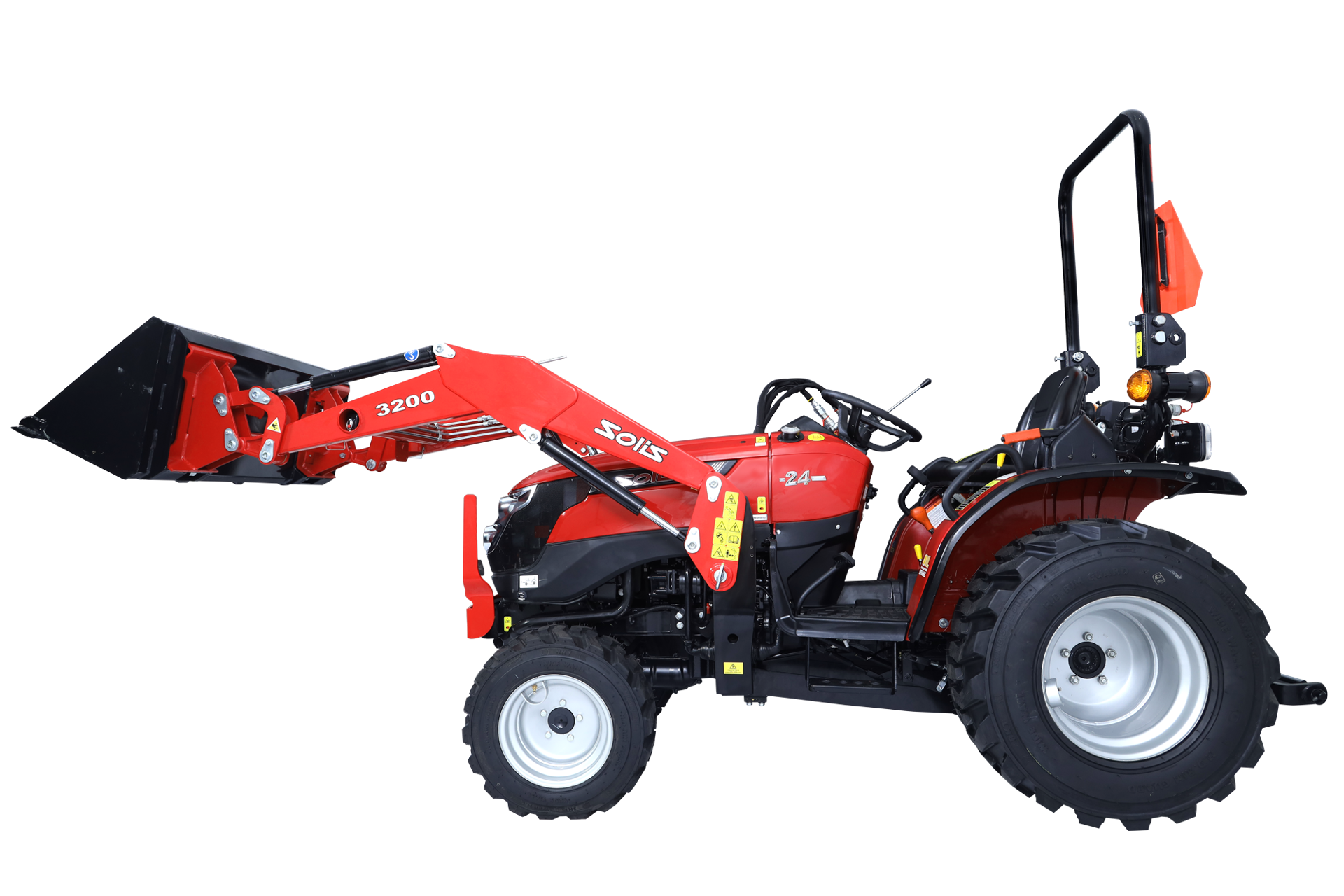

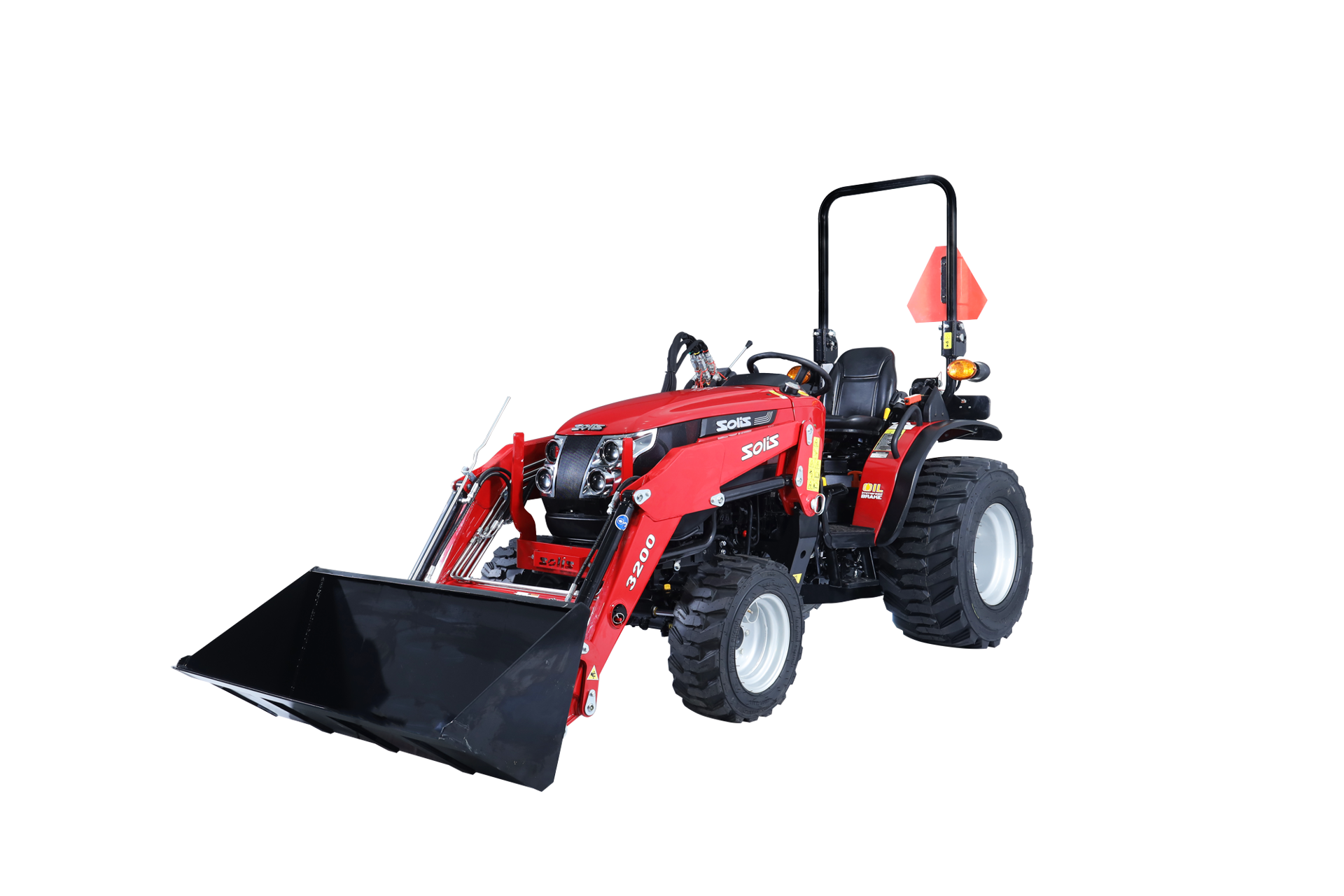

Loader
Technical Specs:
Loader Model:
SB24
NSL/ MSL
MSL
Max Lifting Height at Pivot Point (in)
85
Clearance with Attachment Dump (in)
58
Reach at Maximum Height (in)
17
Reach at Bucket on Ground (in)
56
Max. Dump Angle (Deg)
45
Attachment Rollback Angle (Deg)
43
Digging Depth Below Grade (in)
5.9
Breakout Force @ Pivot Point (Dig Position) (lbs)
1146
Bucket Width (in)
52
Lifting Capacity to Full Height at Pivot Point (lbs)
1411
3rd Function
Optional
